Parameter information
Technical Parameters（Outdoor）
| Usage | Outdoor | |||
| Item | P1.95 | p2.6 | P2.97 | P3.91 |
| Pixel Composition(SMD) | 1415 | 1415 | 1415 | 1921 |
| Pixel Pitch(mm) | 1.95 | 2.604 | 2.97 | 3.91 |
| Module Resolution(W×H) | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size(mm) | 250×250×15 | |||
| Module Weight(kg) | 0.58 | |||
| Module Qty/Cabinet(W×H) | 2×2 | |||
| Cabinet Resolution(W×H) | 256×256 | 192×192 | 168×168 | 128×128 |
| Cabinet Size(mm) | 500×500×87 | |||
| Cabinet Area(㎡) | 0.25 | |||
| Cabinet Weight(kg/cabinet) | 7.5 | |||
| Cabinet Material | Die-cast Aluminium | |||
| Cabinet Density（dot/m²） | 262144 | 147456 | 112896 | 65536 |
| IP Rating | IP65 | |||
| White Balance Brightness(nits) | ≥5500 | |||
| Color Processor(bit) | 16 | |||
| Color Temperature(K) | 6500-9000 | |||
| Visual Angle(H/V) | 140°/ 120° | |||
| Luminous point centre deviation | ＜3% | |||
| Luminance uniformity | ≥97% | |||
| Chromaticity uniformity | Within ±0.003Cx, Cy | |||
| Contrast Ratio | ≥5000:1 | |||
| The Max Power Consumption(W/㎡) | 700 | 700 | 700 | 700 |
| Average Power Consumption(W/㎡) | 235 | 235 | 235 | 235 |
| Input Voltage | AC100~240V | |||
| Frequency(Hz) | 50&60 | |||
| IC Driving(s) | 1/32 | 1/24 | 1/28 | 1/16 |
| Refreshing Ratio(Hz) | 3840 | |||
| Maintenance Method | Front and Rear | |||
| Lifespan(hrs) | 100,000 | |||
| Storage Temperature/Humidity | -40℃-80℃/10%RH-98%RH(Non Condening) | |||
| Work Temperature/Humidity | -20℃-60℃/10%RH-98%RH (Non Condensing) | |||
| *Note: Maximum power consumption fluctuates by 10% depending on the batch of LED chips, and specifications are subject to change without notice. | ||||
Technical Parameters（Indoor）
| Usage | Indoor | |||
| Item | P1.95 | P2.6 | P2.97 | P3.91 |
| Pixel Composition(SMD) | 1515 | 1515 | 2121 | 2121 |
| Pixel Pitch(mm) | 1.95 | 2.604 | 2.97 | 3.91 |
| Module Resolution(W×H) | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size(mm) | 250×250×15 | |||
| Module Weight(kg) | 0.58 | |||
| Module Qty/Cabinet(W×H) | 2×2 | |||
| Cabinet Resolution(W×H) | 256×256 | 192×192 | 168×168 | 128×128 |
| Cabinet Size(mm) | 500×500×87 | |||
| Cabinet Area(㎡) | 0.25 | |||
| Cabinet Weight(kg/cabinet) | 7.5 | |||
| Cabinet Material | Die-cast Aluminium | |||
| Cabinet Density（dot/m²） | 262144 | 147456 | 112896 | 65536 |
| IP Rating | IP31 | |||
| White Balance Brightness(nits) | ≥800 | |||
| Color Processor(bit) | 14 | |||
| Color Temperature(K) | 6500-9000 | |||
| Visual Angle(H/V) | 140°/ 120° | |||
| Luminous point centre deviation | ＜3% | |||
| Luminance uniformity | ≥97% | |||
| Chromaticity uniformity | Within ±0.003Cx, Cy | |||
| Contrast Ratio | ≥5000:1 | |||
| The Max Power Consumption(W/㎡) | 500 | |||
| Average Power Consumption(W/㎡) | 168 | |||
| Input Voltage | AC100~240V | |||
| Frequency(Hz) | 50&60 | |||
| IC Driving(s) | 1/32 | 1/32 | 1/28 | 1/16 |
| Refreshing Ratio(Hz) | 3840 | |||
| Maintenance Method | Front and Rear | |||
| Lifespan(hrs) | 100,000 | |||
| Storage Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||
| Work Temperature/Humidity | -20℃-60℃/10%RH-98%RH (Non Condensing) | |||
| *Note: Maximum power consumption fluctuates by 10% depending on the batch of LED chips, and specifications are subject to change without notice. | ||||
Product Advantages

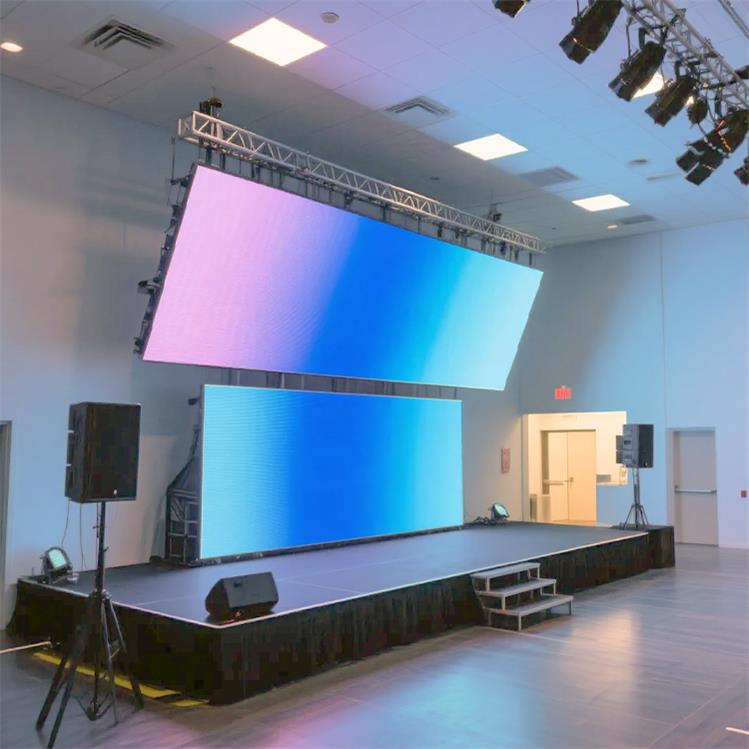

As a company who specializing in the development and production of rental LED displays,with the development of technology and the feedback from customers,our rental led video wall screen has gone through five iterations,the new generation of rental screens takes into full consideration the clear display of the screen, the anti-collision ability of the lamp beads, the convenience of installation and the stability of the screen.
In view of the unique usage requirements of rental screens, for example, requirements for quick and convenient installation, strong anti-collision ability of the lamp beads, durability, and ensuring that the screen is safe and reliable during the event without errors,so we have made the following improvements to our screens.
01
To get the best display effect
we use kinglight LEDs and chipone IC 2153S,which is the First-class brand,to make the LED screen more clearly and high refresh 7680HZ.
02
To have better anti-collision ability
we applied anti-collision glue on the module to make sure the LEDs can withstand impacts of more than five kilograms,we also put strong LED mask on the LED module,so that can protect the LEDs,we will add corner protector on the 4 corner for the panel,to protect the edge of the panels.
03

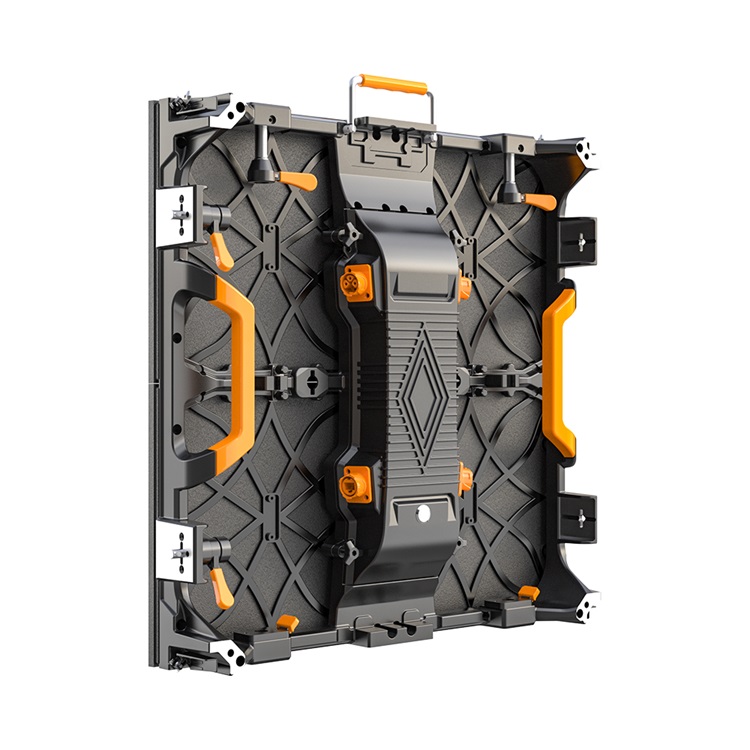

To make it easier to build
we enlarged the top handle, reinforced the handles on both sides and added a plastic soft cover,also we use strong and stainless steel quick lock for our LED panel,to make sure fast assemble and disassemble and long lifespan,while cheaper’s panel always use Zinc Alloy.
04
In order to make the screen more stable
we selected high-quality power supplies and receiving cards, specially made rental power cables and Cat 6 network cables. Even the RJ45 connector is specially customized to ensure that the screen can perform more stably and reliably during customer use.
Comparison
Ningshine’s Indoor Fixed Installation
Others
Warranty
Five-year warranty, we solemnly promise that during the warranty period, any problems caused by product quality will be replaced with new parts free of charge.
Warranty
2-3 years warranty, quality is not guaranteed.
lamp beads
High quality lamp beads, lifespan more than 100,000 hours.
lamp beads
Poor quality lamp beads, damage quickly.
PCB board
1.6mm PCB board, 33% thicker than other LED modules, not easy to deform, so the screen is more flat.
PCB board
1.2mm PCB board, very poor flatness and unstable quality.
Anti-collision capability
The lamp bead anti-collision capacity is more than 5 kgs,50% higher than others,more solid,more durable.
Anti-collision capability
The lamp beads have an anti-collision capacity of 2-3 kg, and a slight collision will cause the lamp beads to fall off.
Mask
Select high-quality material masks,still strong after long-term use.
Mask
Poor quality masks will break after one year of use.
refresh
High refresh IC, 7680HZ refresh, eliminate ghosting and horizontal stripes.
refresh
Low refresh IC,full screen with horizontal stripes and ghosting.
Quick lock
Extra large stainless steel quick lock, durable, fast and convenient.
Quick lock
Zinc alloy quick lock, can’t lock the LED panel tight and easy to break.
Corner guard
All LED panel is equipped with corner protector to protect your screen without blind spots.
Corner guard
No
corner protector, which makes the lamp beads on the edge of the panel easily damaged by hit.
