Parameter information
| Item | P4 | P5 | P6 | P6.67 | P8 | P10 |
| Pixel Pitch(mm) | 4 | 5 | 6 | 6.67 | 8 | 10 |
| Pixel Density | 62,500 | 40,000 | 27,777 | 22,477 | 15,625 | 10,000 |
| Pixel Configuration | SMD 3 IN 1 | |||||
| Module Size(mm) | 320X160 | |||||
| Module Resolution(W×H) | 80X40 | 64X32 | 54X27 | 48X24 | 40X20 | 32X16 |
| Cabinet Dimension(mm) | 960×960 | |||||
| Cabinet Material(mm) | Die-casting Magnesium | |||||
| Cabinet Resolution(W×H) | 240X240 | 192X192 | 160X160 | 144X144 | 120X120 | 96X96 |
| Cabinet Weight(Kg) | 25 | |||||

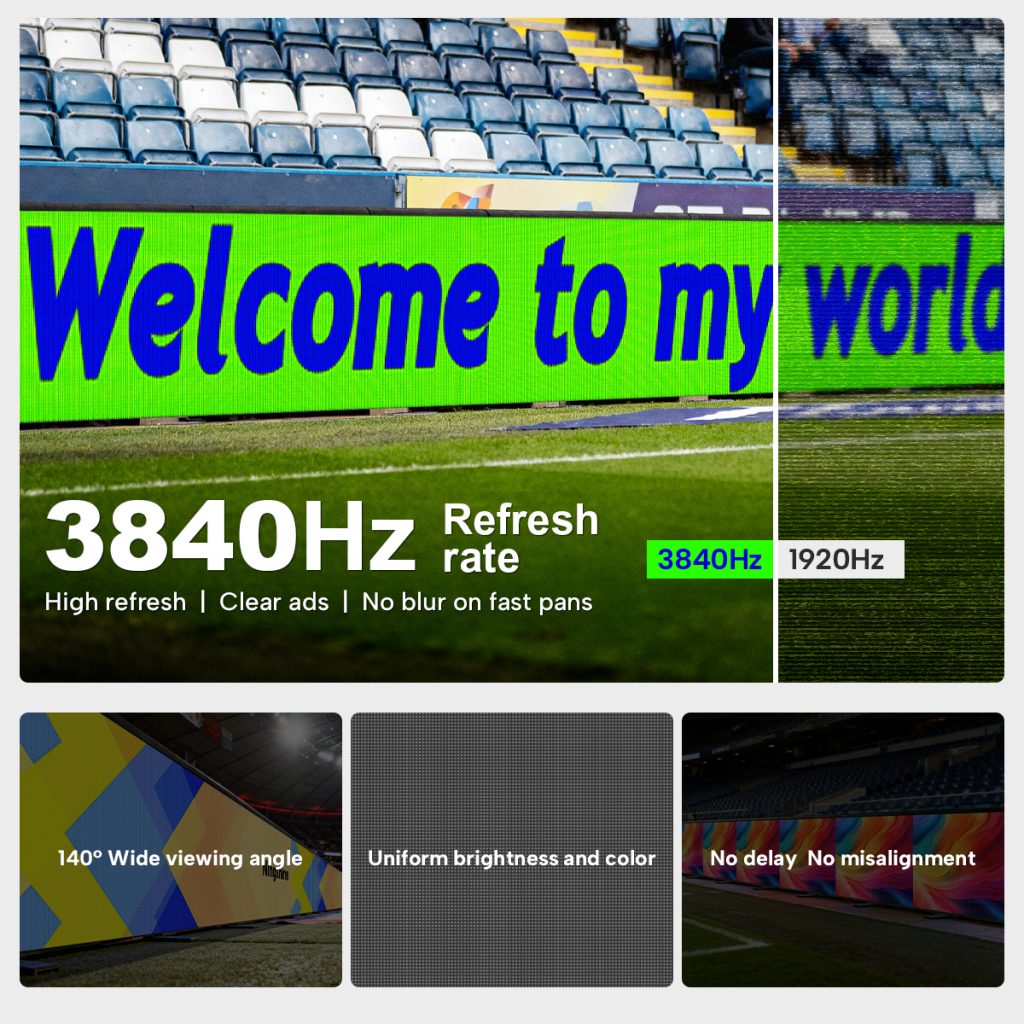

| Refresh Rate(Hz) | ≥3840Hz | |||||
| Brightness(nits) | ≥5500 | ≥6500 | ||||
| Drive Method | 1/10 | 1/8 | 1/8 | 1/6 | 1/5 | 1/2 |
| Gray Scale(bit) | 16 | |||||
| IP Rate | IP65 | |||||
| Min Viewing Distance | 4m(13ft） | 5m(16.5ft) | 6m(20ft) | 6.5m(21ft) | 8m(26ft) | 10m(33ft） |
| Visual Angle(H/V) | 140°/ 140° | |||||
| Max. Power Consumption | 700W | |||||
| Ave. Power Consumption | 200-300W | |||||
| Maintenance Method | Rear | |||||
| Lifespan(hrs) | 100,000 | |||||
| Input Voltage (AC) | 110V-240V,50/60HZ | |||||
Product Advantages

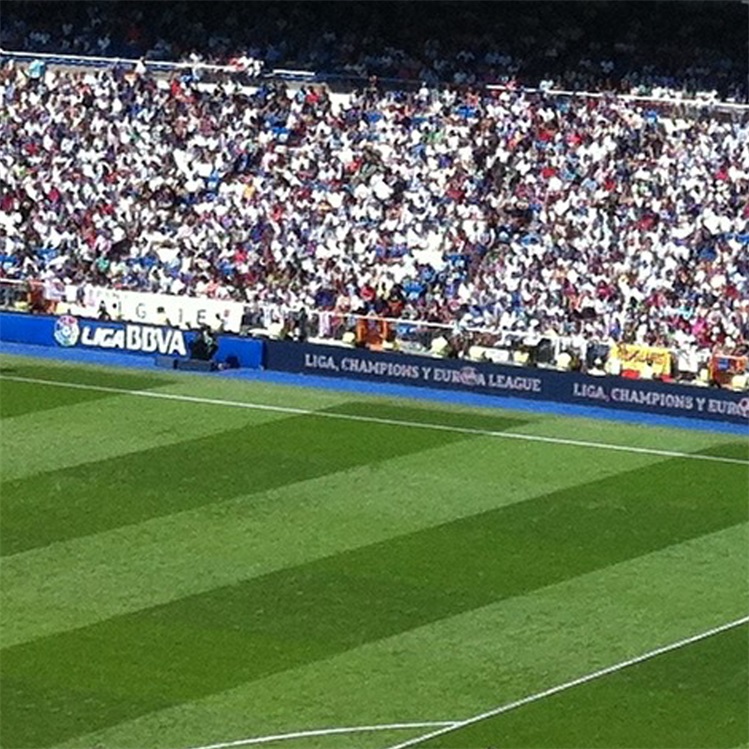

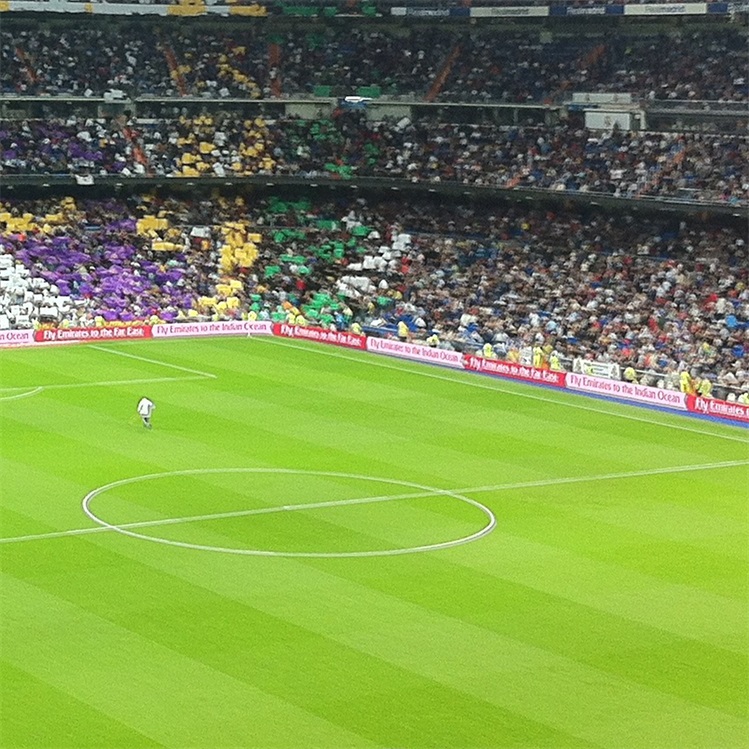

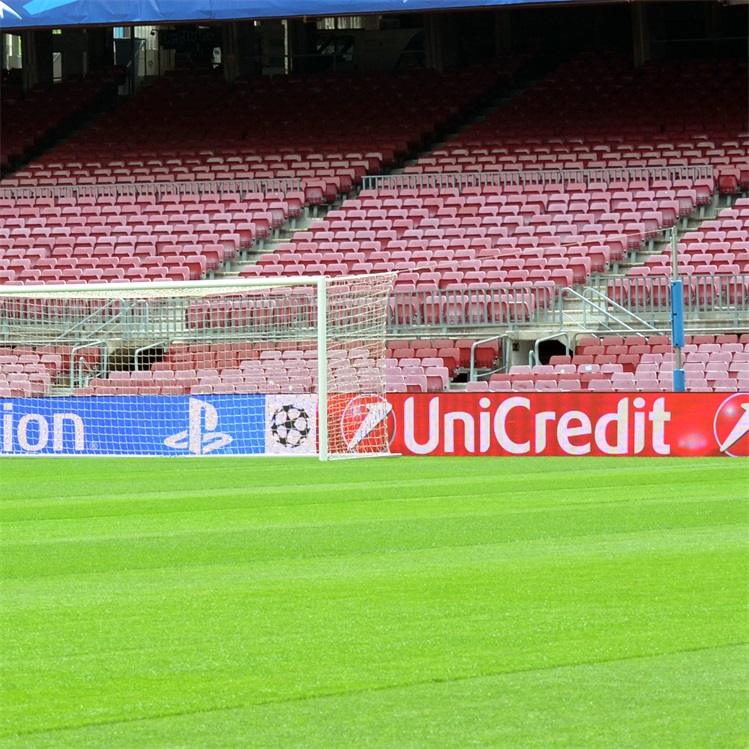

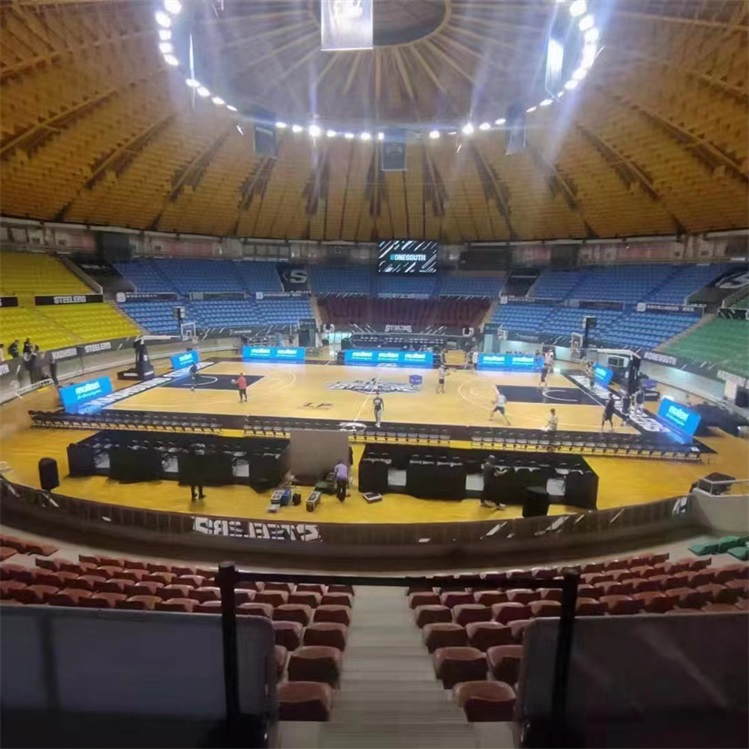

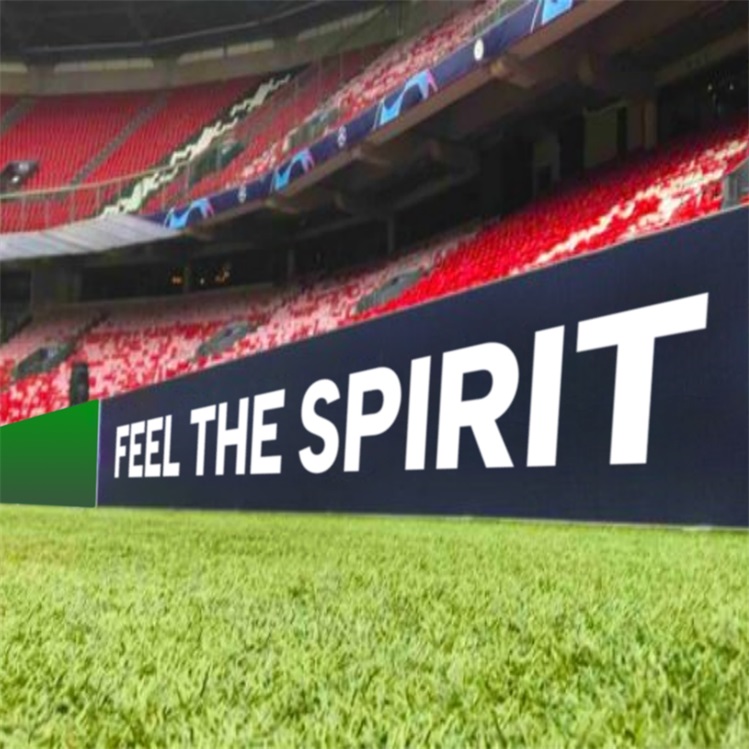

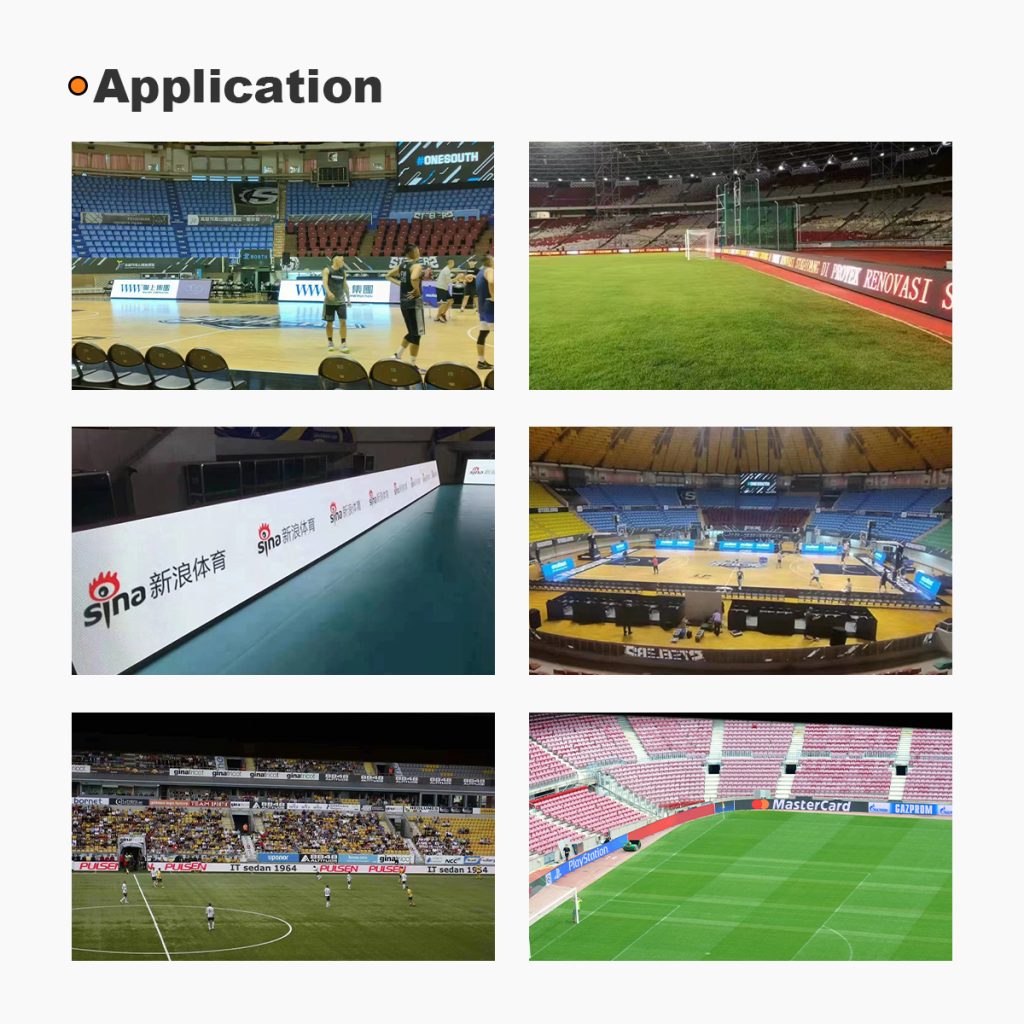

Stadium Led Displays are giant Led displays for outdoor and indoor stadium applications. They can be installed on one or both sides of a stadium/arena for advertising from sponsors and advertisers. Being modular, they can be installed behind the goal posts on the long or short sides of any sports field. They are commonly used in: stadiums, gymnasiums（sports halls,）, racetracks, multi-purpose sports facilities and other professional sports applications. Among the hot selling stadium screens will be P6 P8 and P10.
01
Anti collision design

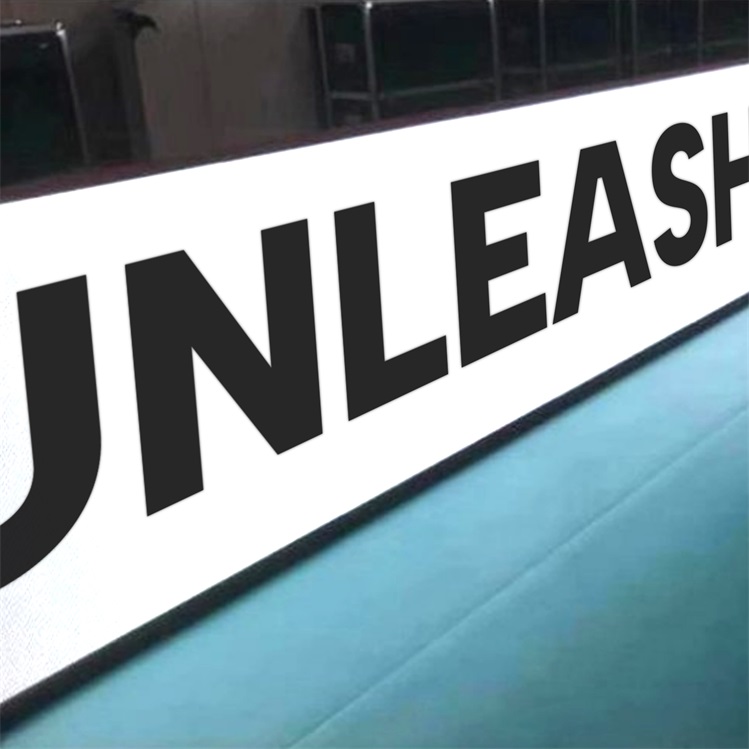

The soft mesh cover with a three-layer sloping design effectively buffers impact and rainwater discharge, it cabinet rubber cover protector protecting players from injury during the game.
02

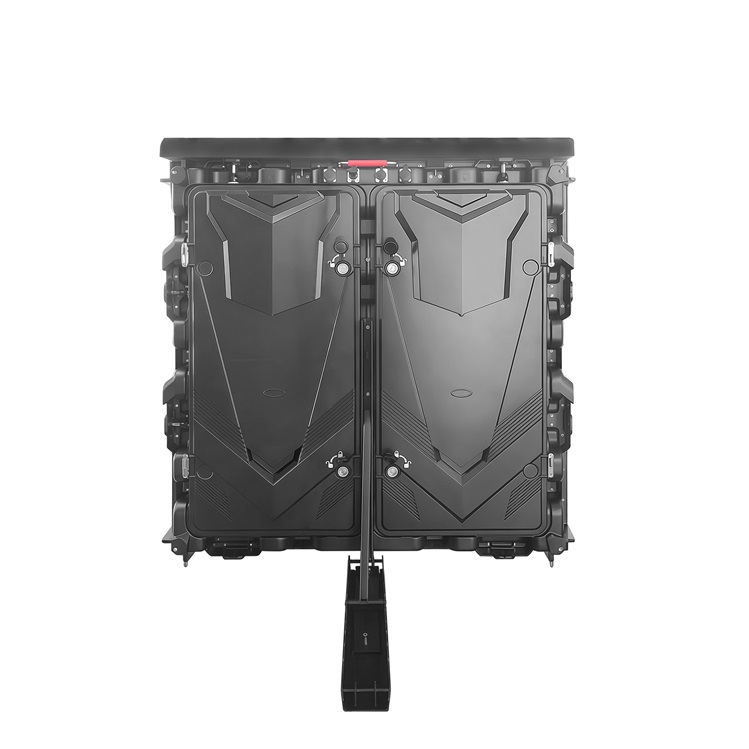

Adjustable angle rear support frame
Adjustable supports bracket-The bracket supports multi-angle (0-90°) adjustment.Users can arbitrarily adjust the viewing angle of the display to achieve the best display effect.
03
High IP waterproof rating
Suitable for indoor and outdoor use, with IP65 rating, fully waterproof.
04
Quick splicing
Spring quick lock, quick and convenient installation and disassembly, saving time.
05
Rear maintenance
Rear quick maintenance, easy and convenient to operate.
