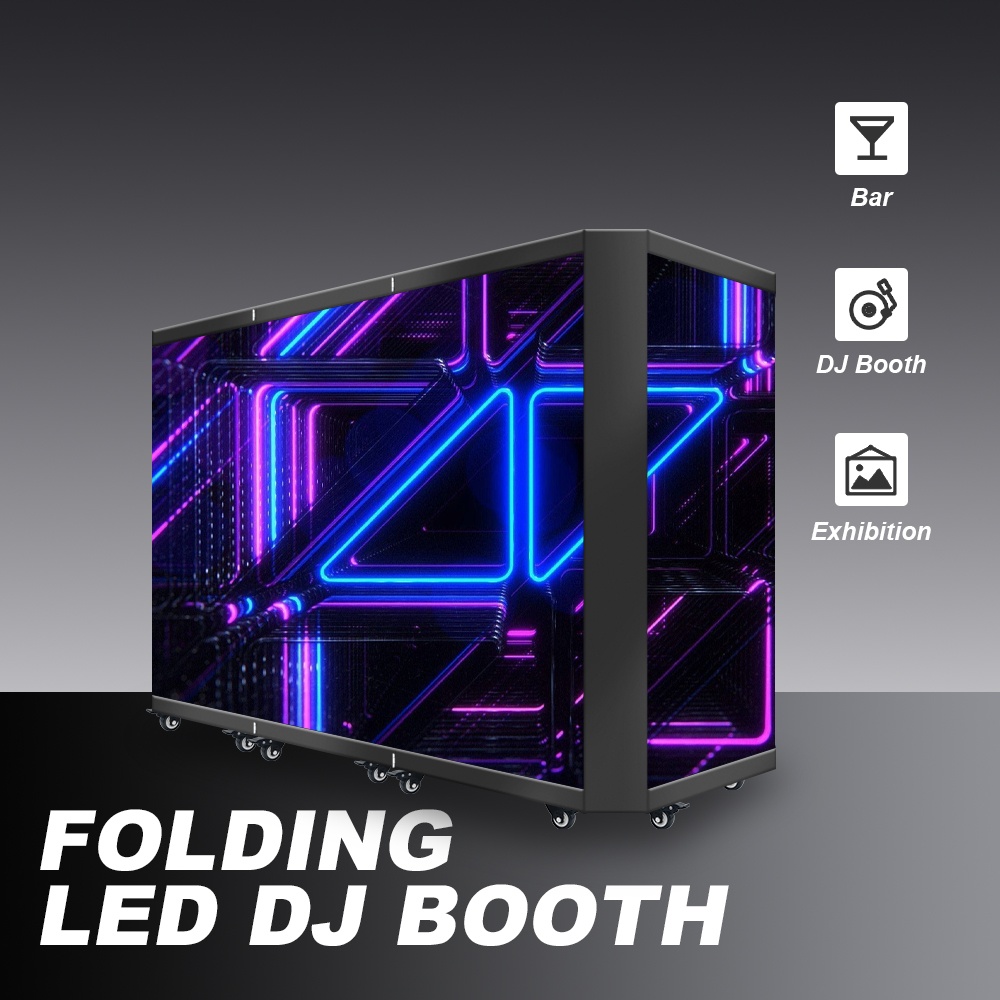

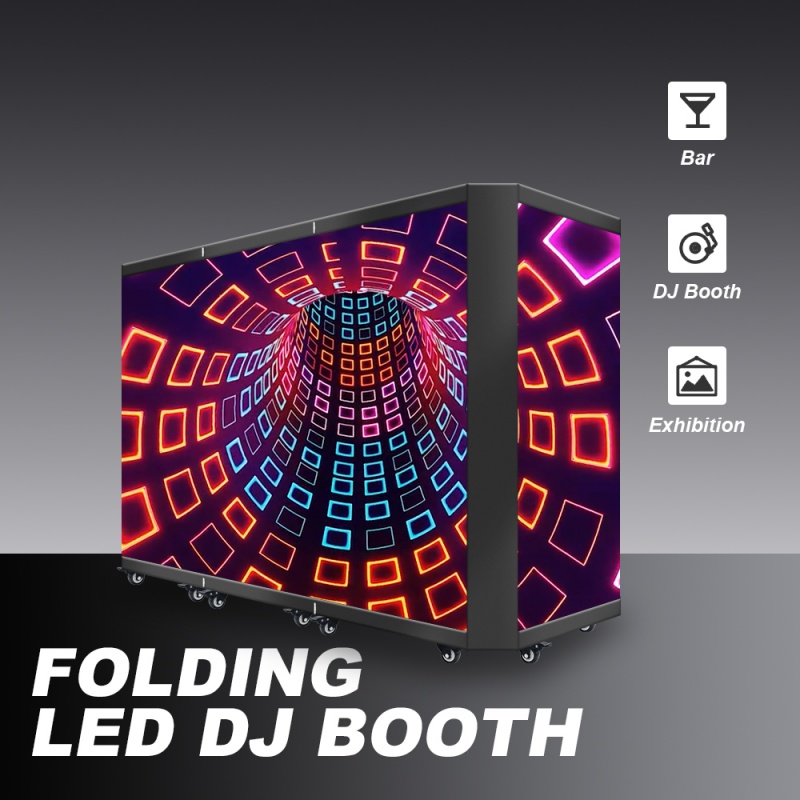

Folding LED DJ Booth

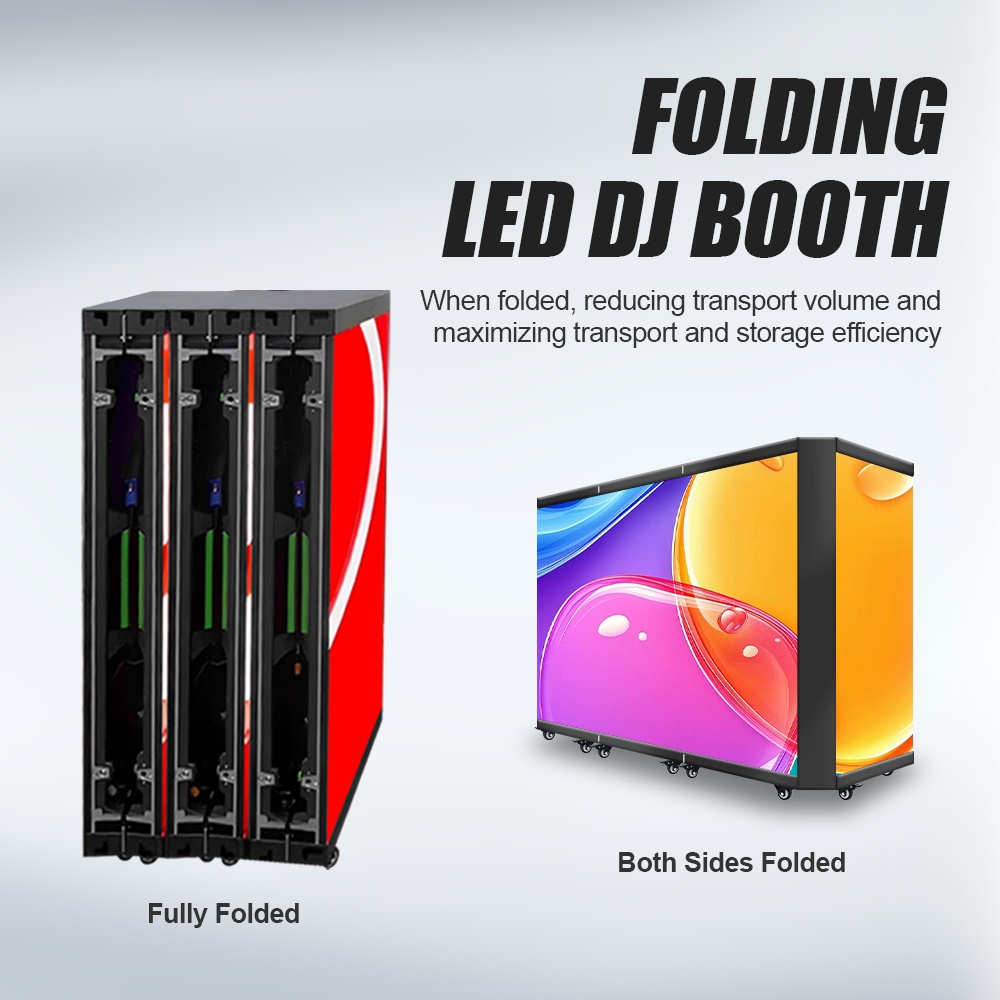

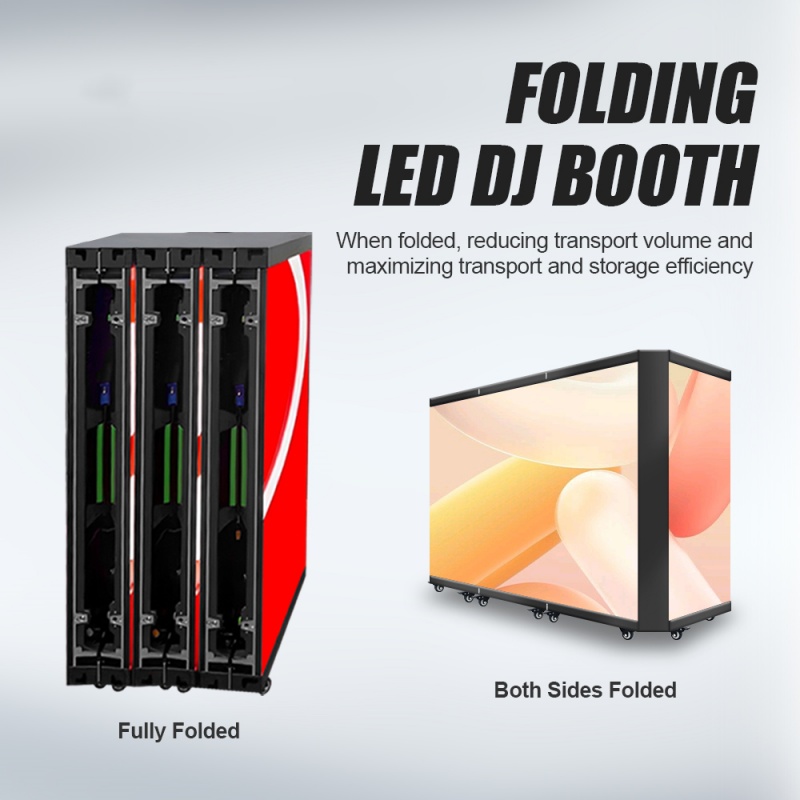

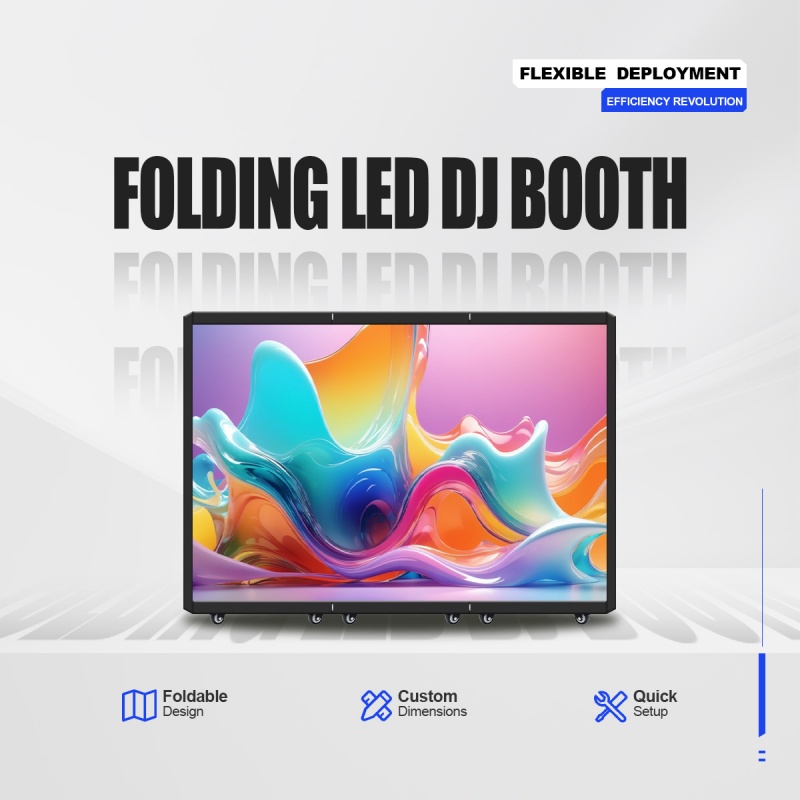

Foldable LED DJ booth stand supports the splicing of multiple cabinets, with both sides folding from the sides to form a DJ stand.
Folding LED DJ Booth Parameter
The foldable LED DJ console is made of high-strength die-cast aluminum, making it lightweight and highly flat. It also offers pixel pitch options of 1.95mm, 2.6mm, 2.97mm, 3.91mm, and 4.81mm.
| Model | P1.95 | P2.6 | P2.97 | P3.91 | P4.81 |
| Pixel Pitch | 1.95mm | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Matrix Per Sq.m | 262,144dots | 147,456dots | 112,896dots | 65,536dots | 43,264dots |
| LEDs package | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Brightness | ≥800nits | ||||
| Scan | 1/32 | 1/24 | 1/21 | 1/16 | 1/13 |
| Module Size | 250*250mm | ||||
| Module Resolution | 128*128 | 96*96 | 84*84 | 64*64 | 52*52 |
| Cabinet Dimension | 500*1000mm | ||||
| Cabinet Resolution | 256*512dots | 192*384dots | 168*336dots | 128*256dots | 104*208dots |
| Cabinet Material | Die Casting Aluminum | ||||
| Cabinet Weight | 13KG | ||||
| Max. Power Consumption | 400W | ||||
| Ave. Power Consumption | 200-300W | ||||
| Service Access | Rear | ||||
| Refresh Rate | ≥7680Hz | ||||
| Gray Scale | 16Bit | ||||
| Viewing Angle (H/V) | 160°/160° | ||||
| Min Viewing Distance | 2m(6.5ft） | 2.5m（8ft） | 3m（10ft） | 4m（13ft） | 5m（16.5ft） |
| IP Rate | IP31 | ||||
| Input Voltage (AC) | 110V-240V,50/60HZ | ||||
Folding LED DJ Booth Design
01

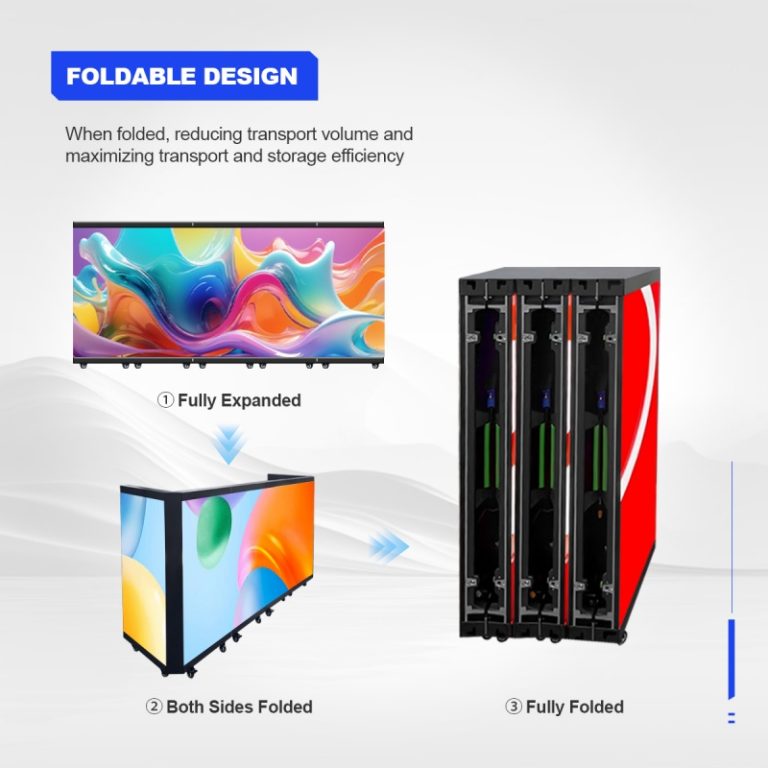

Foldable Design

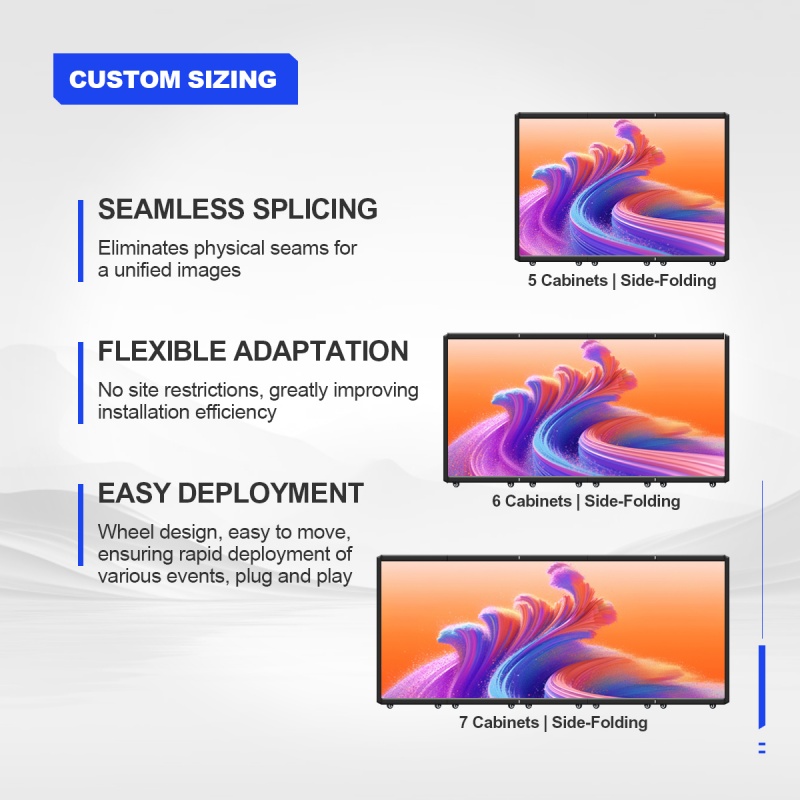

- Multiple cabinets are used for splicing, with side folding
- You can choose to together 4，5 or 6 segments, or even more
02
Universal Wheel Design
- Each cabinet has two wheels at the bottom.
- The wheel design makes the DJ booth easy to move.
03
Multiple Pixel Pitch Options
- Multiple pitch options available: P1.95-P4.81
- High-definition display adapts to various DJ booth scenarios
04
Modular Design
- 250*250mm modules, supporting seamless splicing

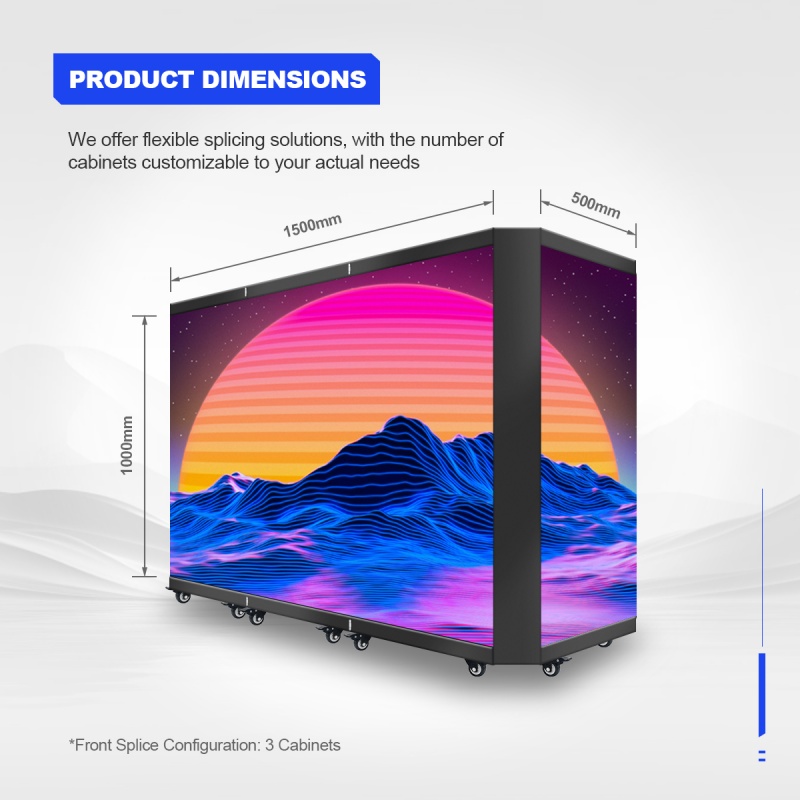

- Standard 500*1000mm module for quick installation and disassembly.
Folding LED DJ Booth Advantages
01

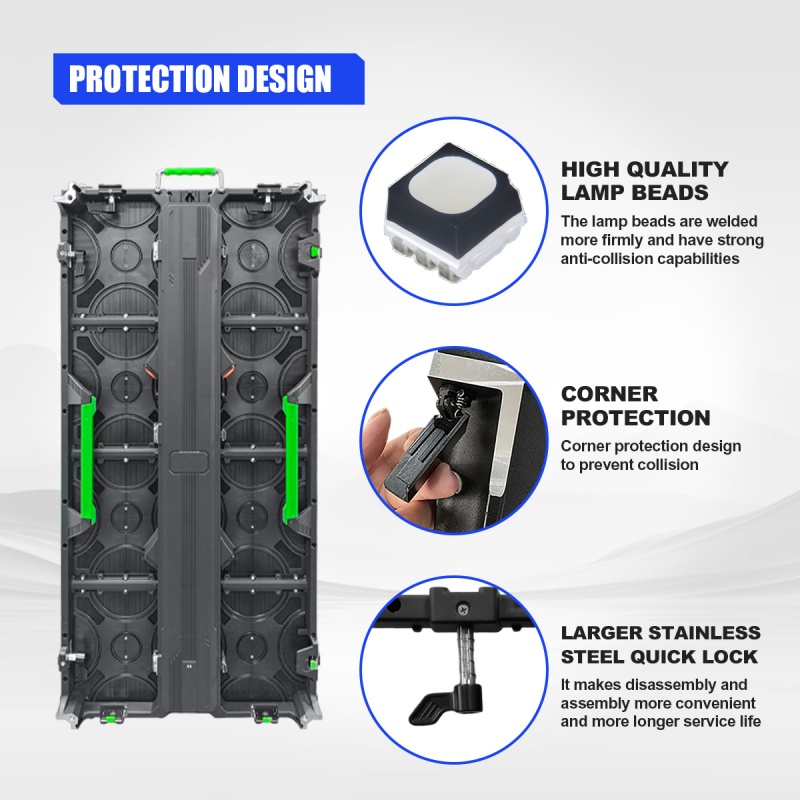

Die-cast aluminum materials
- Lightweight and high-strength, seamless splicing, high flatness
- Excellent heat dissipation, 7 × 24h continuous operation without black screen
02
Ultra-high refresh rate
- 7680Hz refresh rate，eliminate water ripples/flashing screens
- Fully compatible with live streaming, video recording, and media shooting
03
High-brightness screen
- 800-1200 nits brightness, clearly visible under strong stage light
- Color transparency without graying out
04
GOB packaging technology(GOB optional)
- 1.95-2.6 suggests GOB
- while for 2.97 and above, GOB is not required
