Tri-fold Led Display

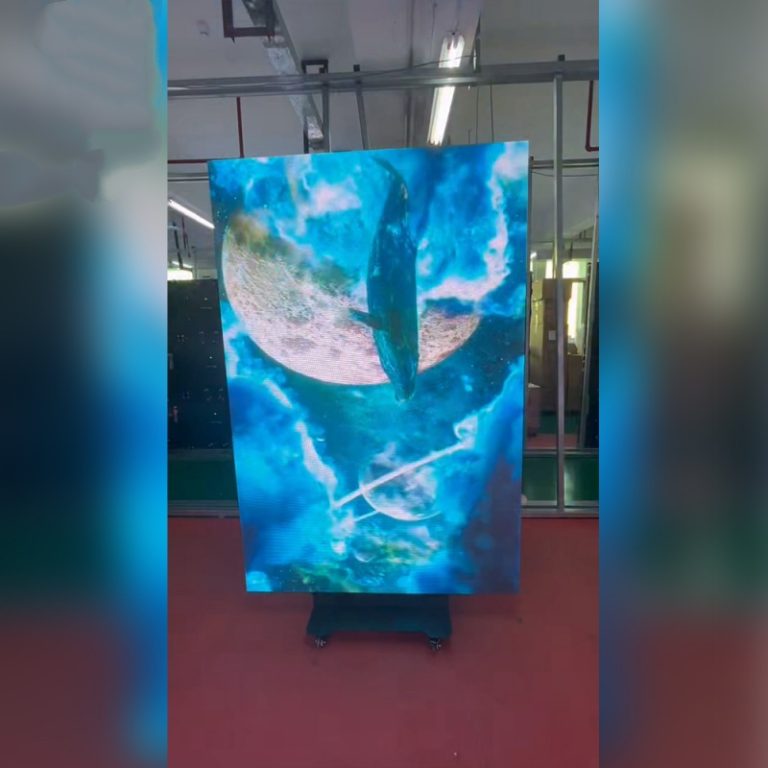

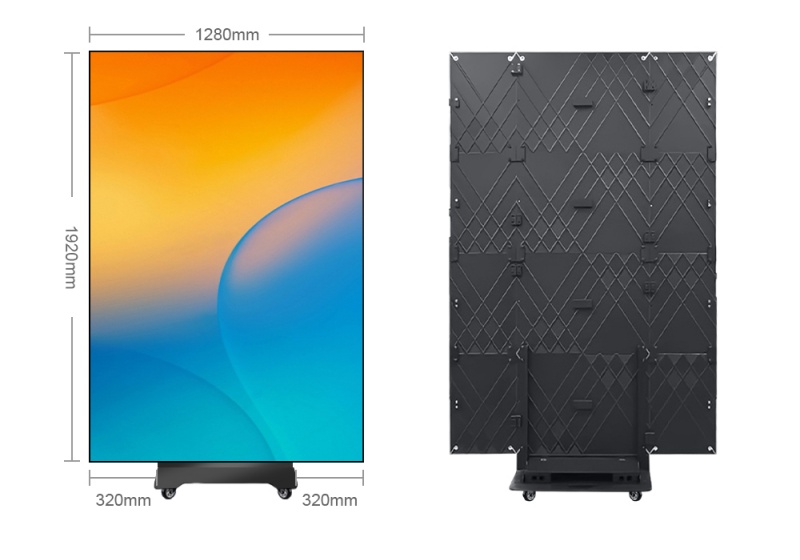

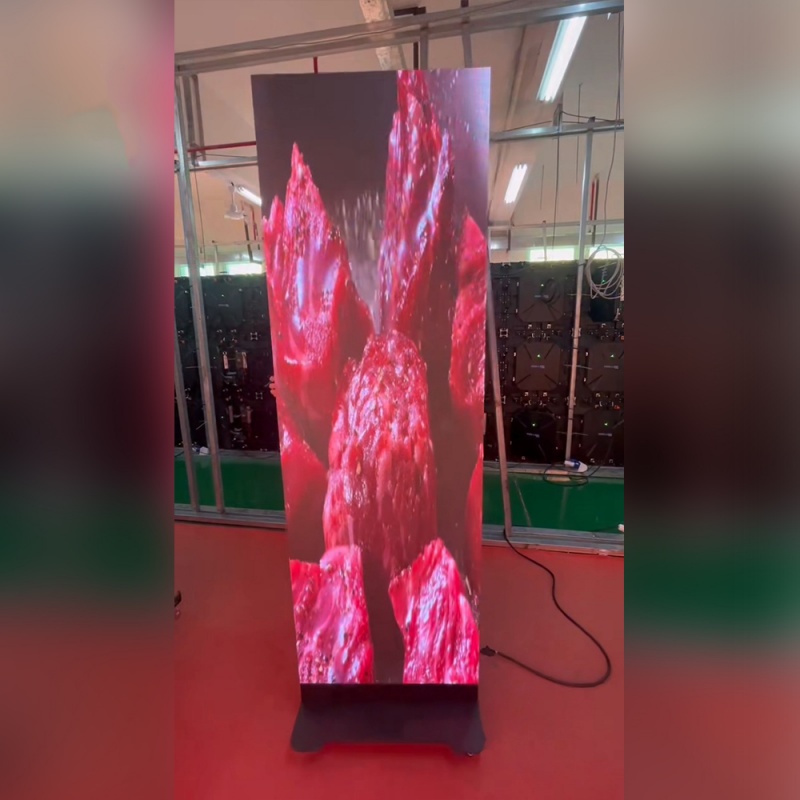

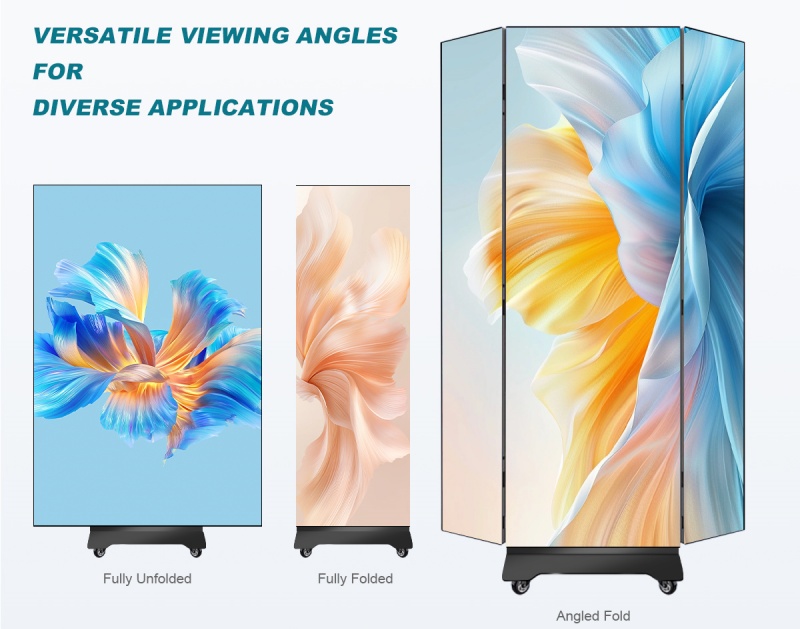

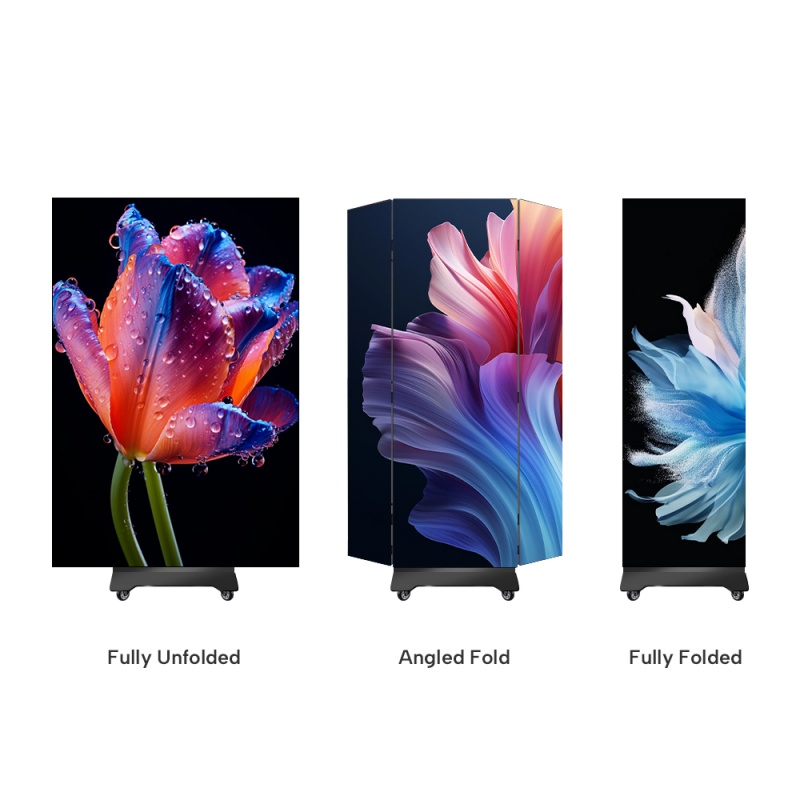

Tri-fold LED display adopts a core structure of left and right tri-folding, achieving seamless switching between “large unfolded screen + folded screen”. In addition, when unfolded, it presents a seamless screen body of standard poster size of 1280×1920mm, and when folded, it transforms into a small screen of 640×1920mm.
Tri-fold Led Display Parameter
| Item | Tri Fold Led Poster Screen | ||||
| Pixel Selection | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel Density (dots/m2) | 640,000 | 425,000 | 288,906 | 250,000 | 160,000 |
| Module Size(mm) | 320*160 | ||||
| Module Resolution | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 |
| Pixel Configuration | GOB or SMD 1R1G1B | ||||
| Screen Size（mm） | 1280*1920 | ||||
| Screen Resolution | 1024*1536 | 837*1255 | 688*1032 | 640*960 | 512*768 |
| Material | Aluminum | ||||
| Viewing Angle | 160°/160° | ||||
| Brightness(nits) | ≥800 | ||||
| Gray Scale（bit） | 14-16 | ||||
| Contrast Ratio | ≥5000:1 | ||||
| Refresh Rate(Hz) | 3840 | ||||
| Frame Frequency | 60 | ||||
| Maintenance Method | Front service | ||||
| IP Ratings | IP31/IP54(GOB) Front | ||||
| Lifespan(hrs) | 100,000 | ||||
| Working Temperature&Humidity (RH) | -40~+60℃&10%-90% | ||||
| Signal Output | HDMI/VGA/DVI/DP | ||||
Tri-fold Led Display Advantages
01

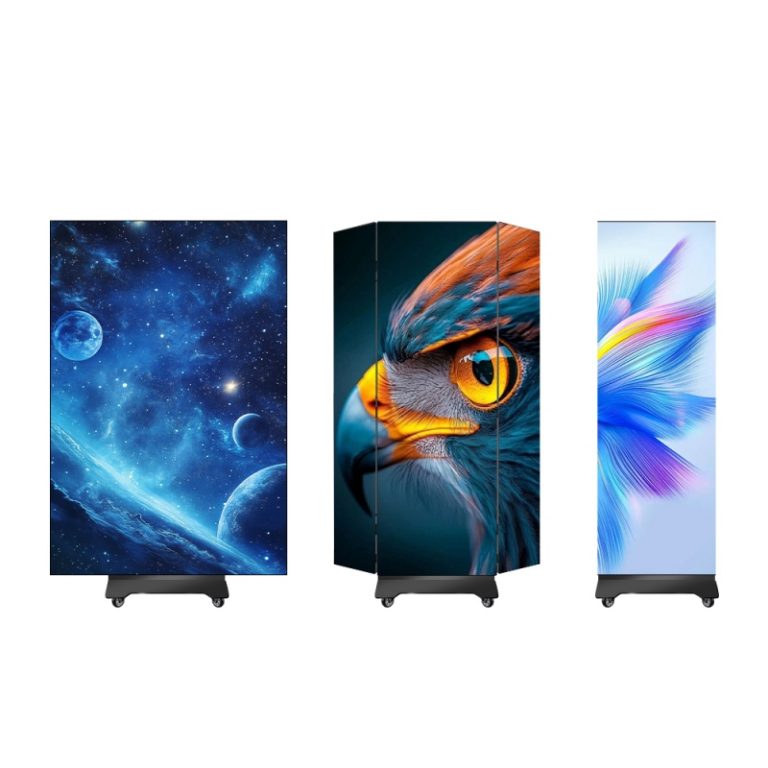

Triple-fold integrated design
- Folding design for a smaller footprint
- The folded size is significantly reduced, making it easy to transport and store.
- Easy to unfold and fold by a single person, saving time and effort.
02

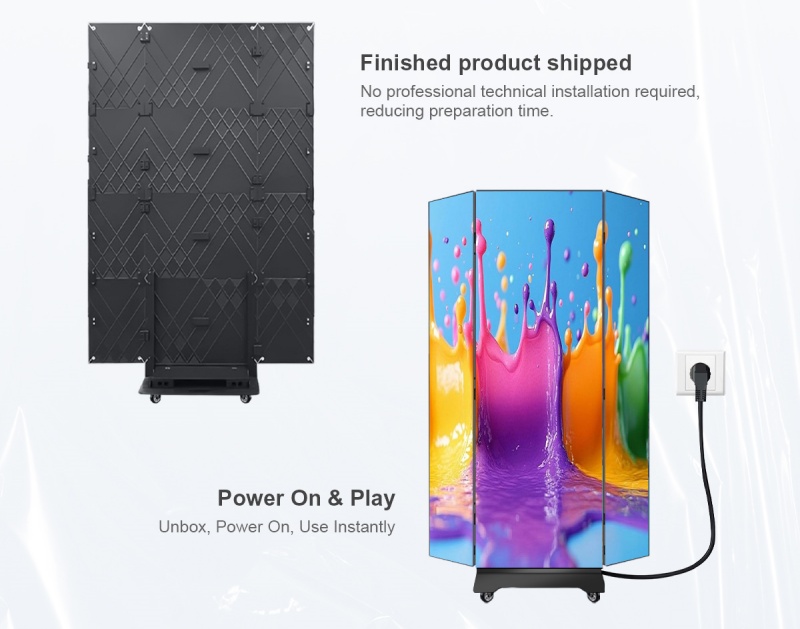

Open and use immediately
- Simply plug it in to play; no complicated installation required.

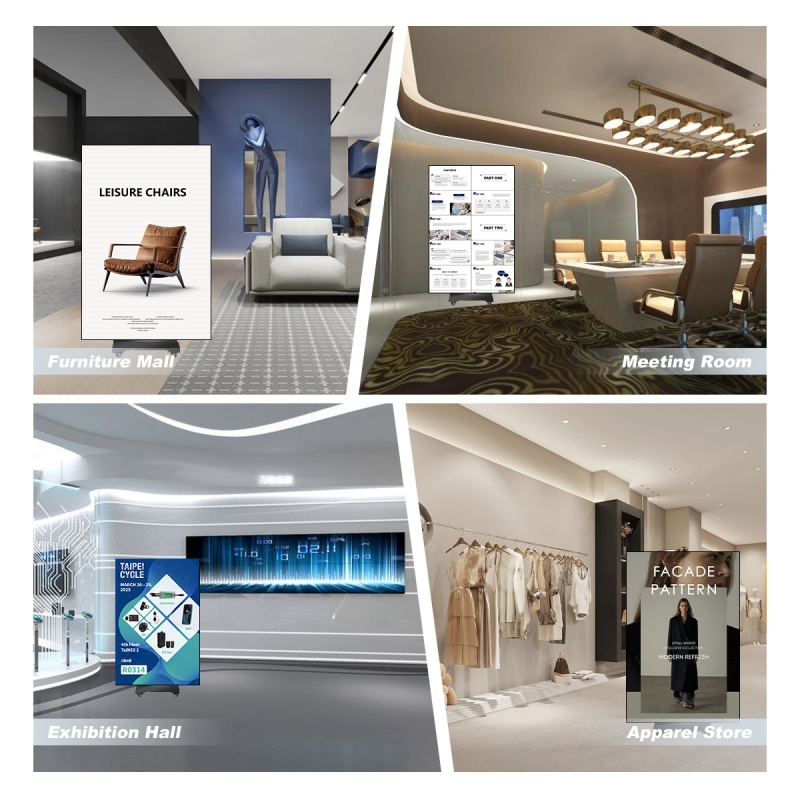

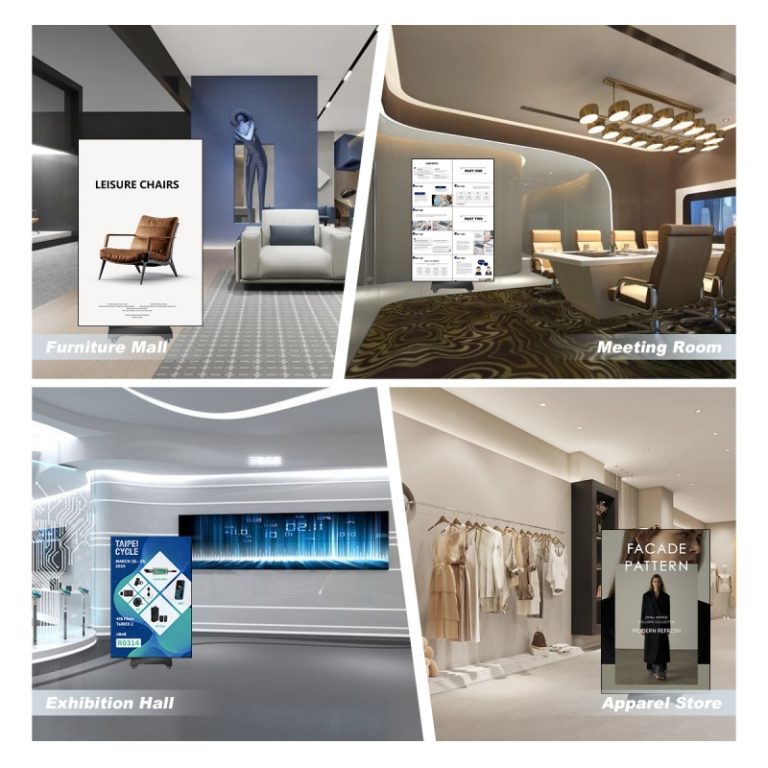

- Suitable for high-frequency mobile scenarios such as shop windows, retail stores, and trade shows.
03
High-definition display
- High pixel density for delicate and clear images
- 3840Hz refresh rate, no horizontal lines
- ≥800 nits high brightness, clearly visible in indoor environments
- High contrast ratio, rich colors, and strong eye-catching effect for advertisements.
04

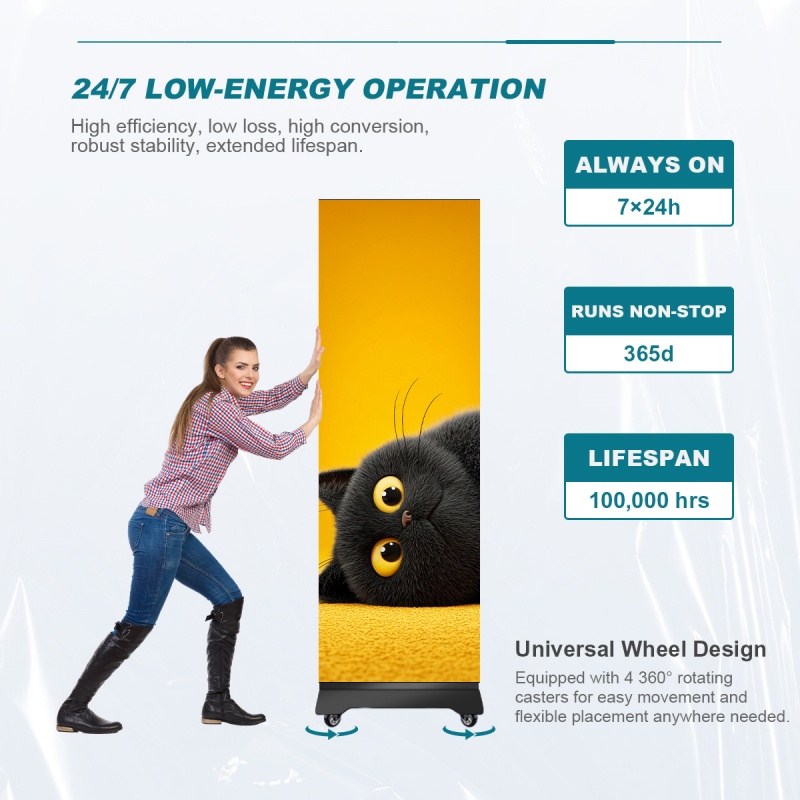

Mobile and flexible
- High-strength casters are provided at the bottom.
- It can rotate 360° and move smoothly.
05

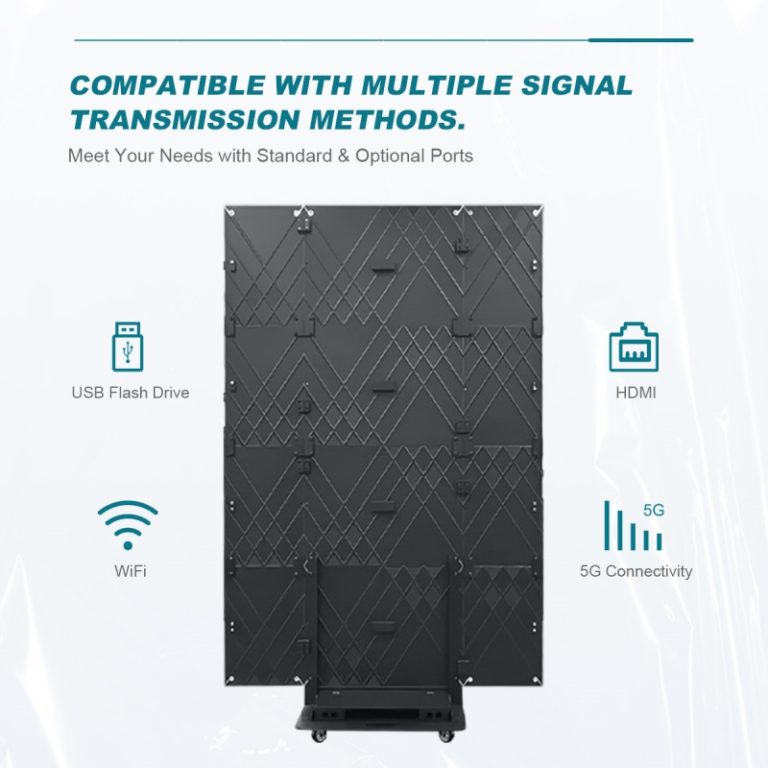

Multiple content delivery methods
- Supports USB/WiFi/LAN/HDMI (optional)
- Supports content management via mobile phone, computer, and cloud
- Quickly updates ad content; simple operation.
06
Stable and reliable, easy to maintain
- Industrial-grade power supply and control system, ensuring stable operation over extended periods.
- Modular design supports front maintenance.
