Indoor fixed Led Screen Parameter
| Item | P1.25 | P1.53 | P1.86 | P2.5 |
| Pixel pitch | 1.25mm | 1.53mm | 1.86mm | 2.5mm |
| Pixel density | 640000 | 425000 | 288906 | 160000 |
| Module Size(mm) | 320*160 | |||
| LED package | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Module resolution | 256×128 | 208×104 | 172×86 | 128×64 |
| Module arrangement per cabinet | 2×3 | |||
| Cabinet dimension(mm) | 640×480×48 | |||
| Cabinet weight (including module) | 6.8kg | |||
| Maintenance | Full front service | |||
| System backup | Support | |||
| White balance brightness | 800nits | |||
| Pixel-level calibration | Support | |||
| Color temperature | 6500K (adjustable) | |||
| Refresh rate | 3840Hz | |||
| Viewing angle | 160°(V/H) | |||
| Brightness uniformity | ≥99% | |||
| Grayscale level | 14-16bits | |||
| Contrast ratio | ≥5000:1 | |||
| Scanning mode | 1/64 | 1/52 | 1/43 | 1/32 |
| Working voltage (input) | 110-240V,50/60Hz | |||
| Max./Avg. power consumption | 500W/m²/165-260W/m² | |||
| Storage temperature&humidity (RH)-30~+60℃&10%-95%RH(Non Condening) | -30~+60℃&10%-95%RH(Non Condening) | |||
| Working temperature&humidity (RH) | -20~+50℃&10%-95%RH(Non Condening) | |||
| IP ratings | IP31 | |||
| Screen temperature rise | ≤5°C | |||
| Installation | On-wall/recessed/pedestal/suspended/stacked install | |||
| Signal output | HDMI/VGA/DVI/DP | |||
| Certification | RoHS/FCC/CE | |||
Indoor fixed Led Screen Advantages
On the hand, we are a manufacturer specializing in LED displays with over 15 years of experience, a team of 20+ R&D personnel, and a customer base spanning over 150 countries. On the other hand, our indoor LED displays have undergone multiple updates and iterations, resulting in indoor fixed LED displays with improved display performance, higher refresh rates and grayscale levels, and lighter, thinner, more aesthetically pleasing cabinets that are easier to install.

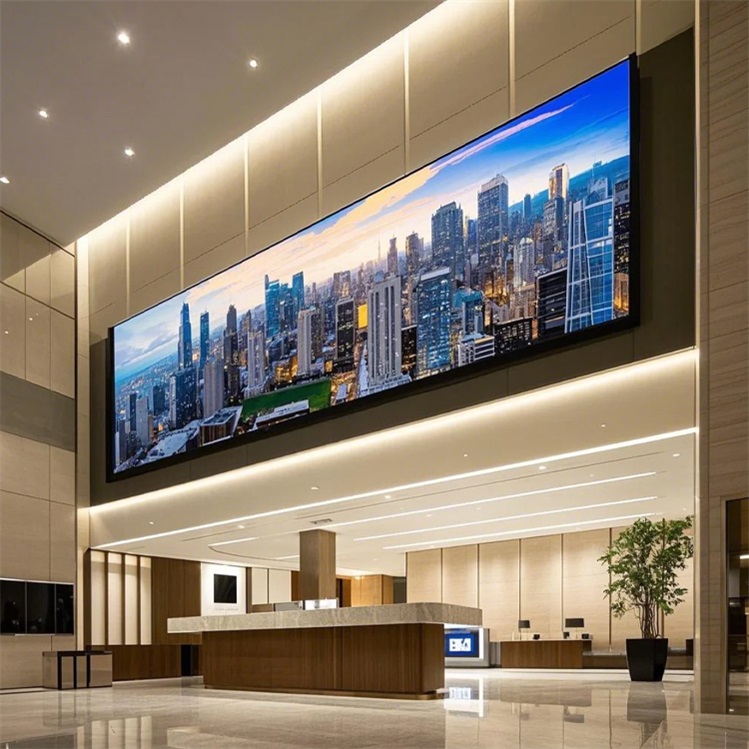

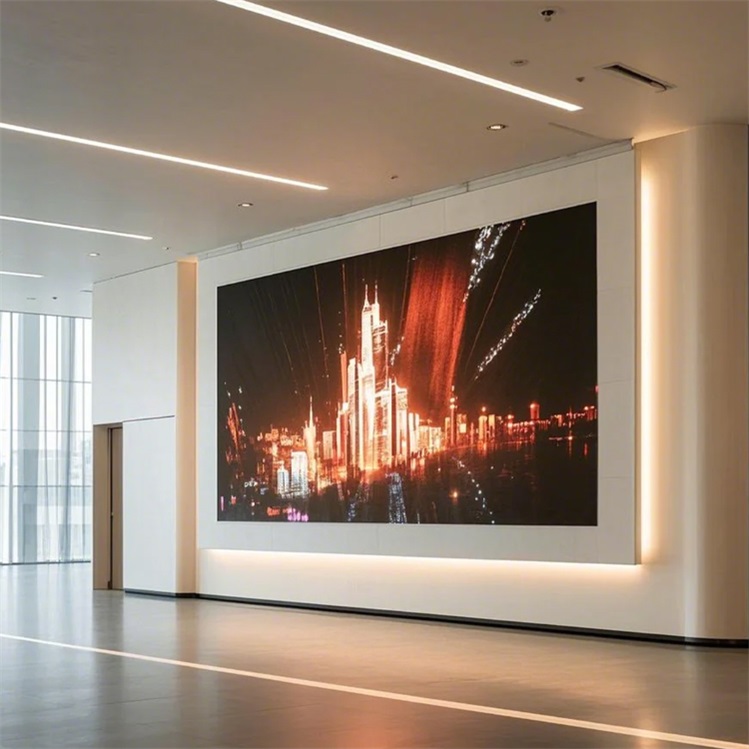

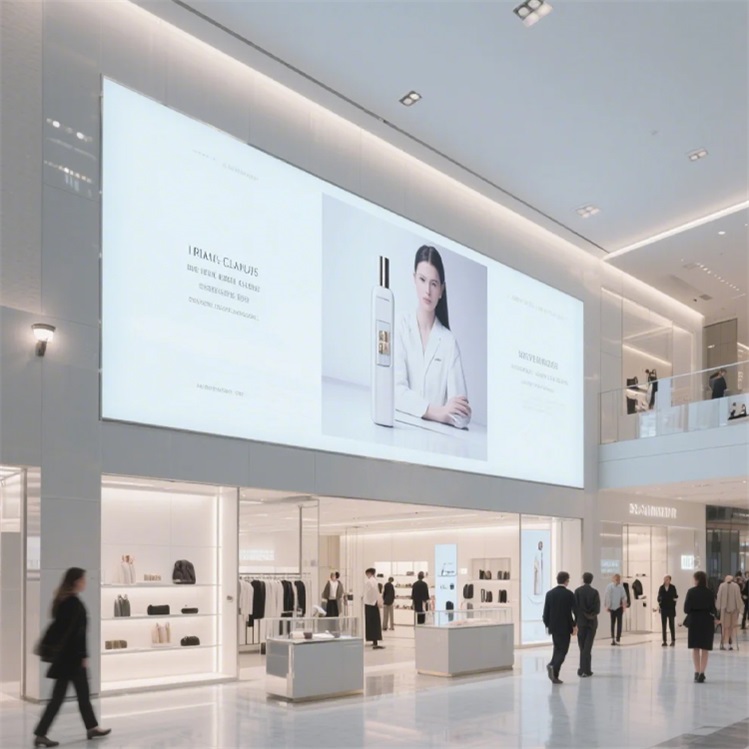

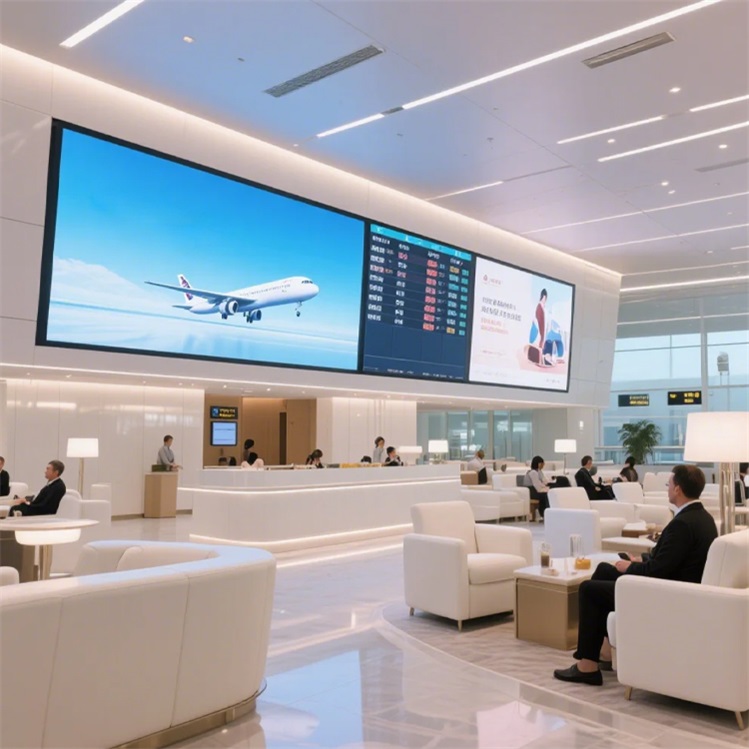

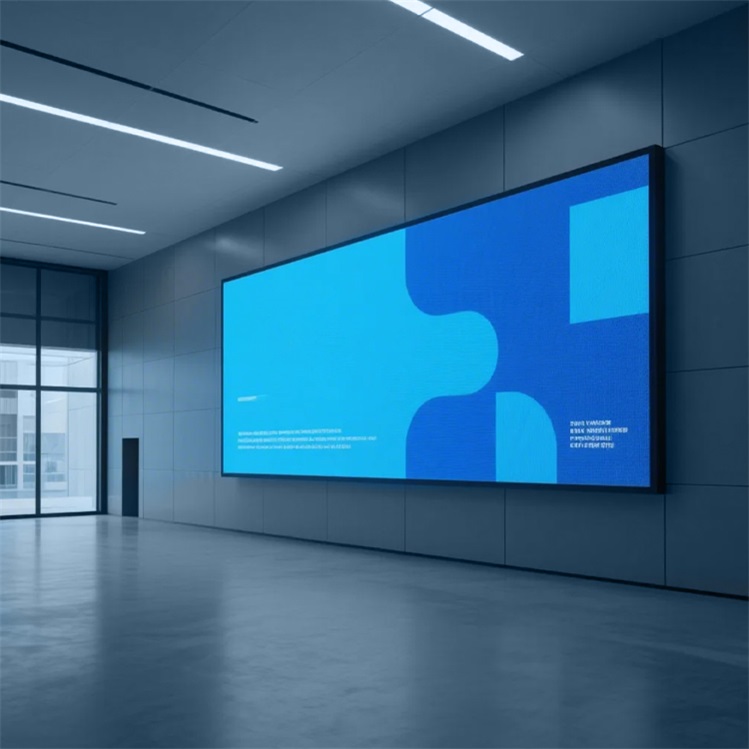

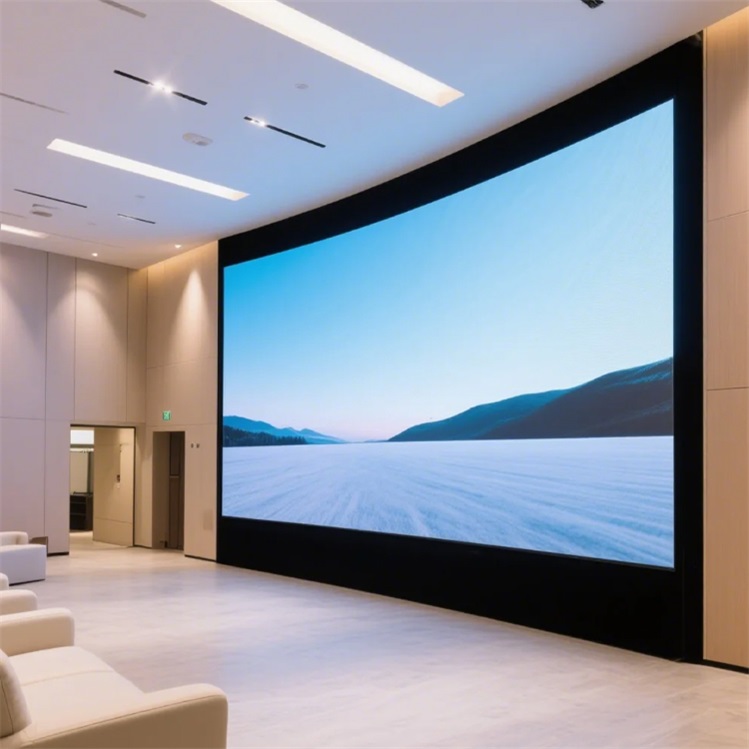

Furthermore, indoor fixed LED displays are widely used in various applications, such as shops, churches, stage performances, cinemas, and conference rooms. In addition, we offer different improvements based on the requirements of different scenarios. For example, cinema LED displays feature high refresh rates and frame rates; stage backdrops can utilize flexible modules to adapt to various stage settings; and churches can have customized main and side screens to suit the viewing needs of all attendees.
In addition, the advantages of indoor LED displays are described below in terms of clear display quality, attractive appearance, simple installation and commissioning, and customizable dimensions.
01
To get the best display effect
We use top-brand Kinglight LEDs and high-quality ICs to ensure a clearer screen and a higher refresh rate.
02
In order to make it look more beautiful

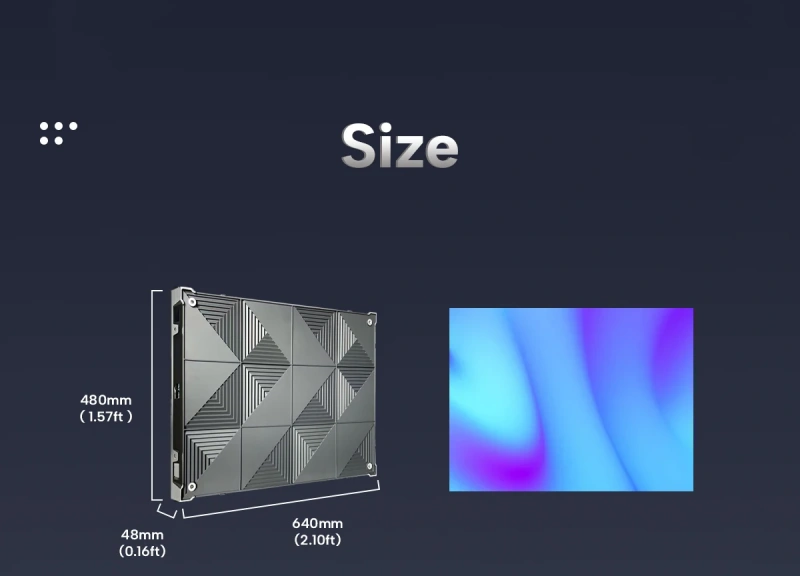

Our SE series indoor fixed LED display screens have a thickness of only 48mm.
03
In order to make installation easier
We use magnetic LED modules, eliminating the need for cable connections to the LED modules.
04
In order to meet the different size requirements of customers
We have various series of LED display cabinet sizes, such as 640*480mm, supports OEM/ODM customization.
Indoor fixed Led Screen Comparison
Ningshine’s Indoor Fixed Installation
Others
Warranty
Firstly, Five-year warranty, we providing remote technical support, on-site guidance, global warranty, and fast spare parts supply
Warranty
2-3 years warranty. Furthermore, the quality assurance is not comprehensive enough.
lamp beads
Secondly, using copper bracket lamp beads, the screen display effect is even better.
lamp beads
Iron bracket lamp beads, low refresh IC, thus, poor display effect
PCB board
Thirdly, 2mm PCB board, higher cabinet flatness and longer life.
PCB board
1.2mm PCB board, the cabinet has poor flatness and a short lifespan.
drive
Next, Dual-row tube drive, voltage more stable, brightness more uniformity, better display performance and longer life.
drive
Single-row tube drive, the voltage is unstable, so resulting in inaccurate RGB color control.
connection
Then, HUB board connection improves signal stability and reduces wiring faults, faster module replacement and easier maintenance.
connection
Cable connection is complicated and requires professional installation; the connection is also unstable.
refresh
≥3840Hz High refresh rate, flicker-free under camera shooting or streaking.
refresh
1920Hz Low refresh rate, the screen has ghosting and streaks.

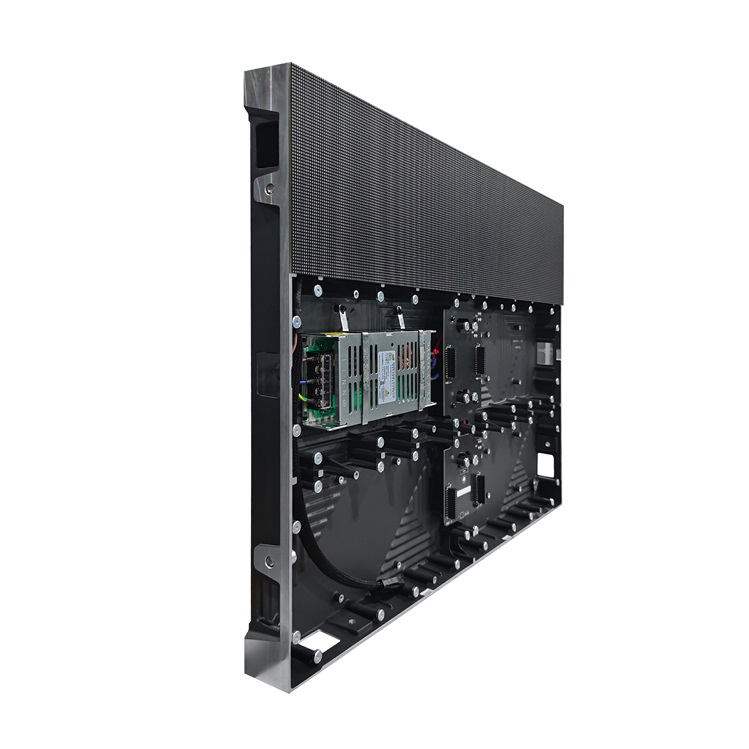

cabinet
Die-cast aluminum 48mm ultra-thin cabinet, lighter and thinner, and high precision.
cabinet
Other cabinet thicknesses are 80mm, so quite thick, and the installation looks unsightly.

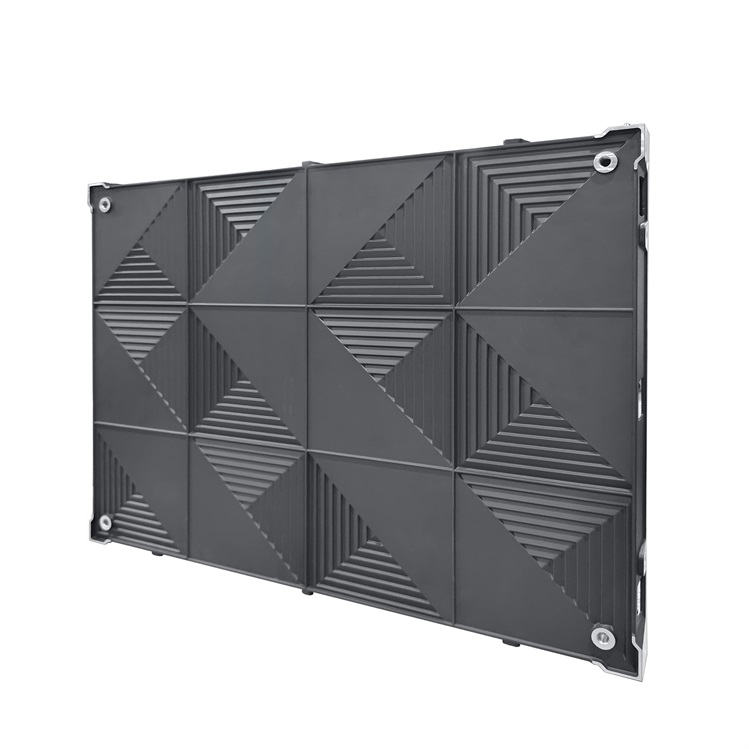

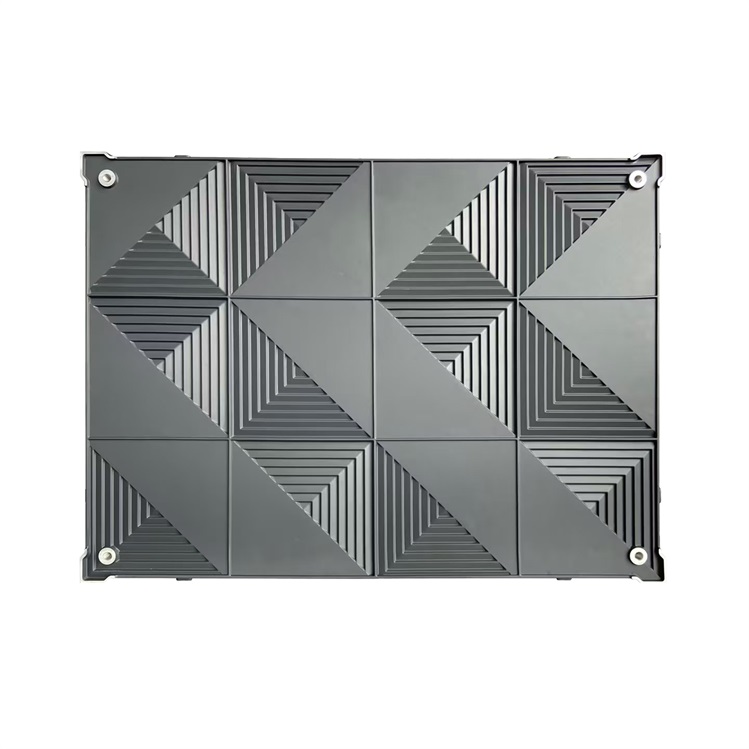

The back of the cabinet
Finally, the back of the cabinet features a thickened and bolded striped design, improve heat dissipation efficiency.
The back of the cabinet
The other cabinets have less prominent stripes on the back, so poorer heat dissipation.
