Outdoor LED display screens must not only be “clearly visible,” but also “durable and easy to maintain.” The development of Ningshine HD series outdoor fixed LED displays has always been centered around user needs.

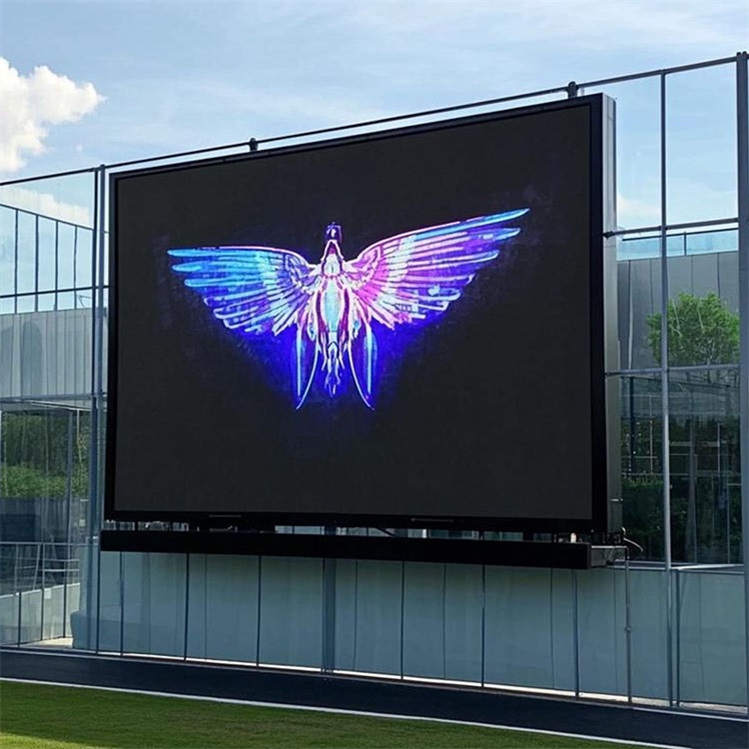

From material selection to technical configuration, from size design to maintenance experience, every detail has been meticulously refined and tested. Currently, this product series is fully adapted to a variety of scenarios, including outdoor advertising, sports venues, and cultural and tourism landmarks. Whether it’s for creating urban visual experiences or supporting commercial endeavors, we can provide display solutions that offer both quality and value for money.
Outdoor Led Displays Parameter
Common Anode
| Item | P1.56 | P1.95 | P2.604 | P2.97 | P3.91 |
| Pixel Composition(SMD) | 1112 | 1415 | 1415 | 1415 | 1415 |
| Pixel Pitch(mm) | 1.56 | 1.95 | 2.604 | 2.97 | 3.91 |
| Module Resolution(W×H) | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size(mm) | 250×250×18 | ||||
| Module Weight(kg) | 1 | ||||
| Module Qty/Cabinet(W×H) | 2×4 | ||||
| Cabinet Resolution(W×H) | 320×640 | 256×512 | 192×384 | 168×336 | 128×256 |
| Cabinet Size(mm) | 500×1000/750×500/500×500 | ||||
| Cabinet Area(㎡) | 0.5 | ||||
| Cabinet Weight(kg/cabinet) | 16 | ||||
| Cabinet Material | Aluminium Profiles | ||||
| Cabinet Density（dot/m²） | 409600 | 262144 | 147456 | 112896 | 65536 |
| IP Rating | IP66 | ||||
| White Balance Brightness(nits) | ≥5500 | ||||
| Color Processor(bit) | 14 | 14 | 16 | 16 | 16 |
| Color Temperature(K) | 6500-9000 | ||||
| Visual Angle(H/V) | 140°/ 120° | ||||
| Luminous point centre deviation | ＜3% | ||||
| Luminance uniformity | ≥97% | ||||
| Chromaticity uniformity | Within ±0.003Cx, Cy | ||||
| Contrast Ratio | ≥5000:1 | ||||
| The Max Power Consumption(W/㎡) | 700 | 700 | 700 | 700 | 800 |
| Average Power Consumption(W/㎡) | 235 | 235 | 235 | 235 | 268 |
| Input Voltage | AC100~240V | ||||
| Frequency(Hz) | 50&60 | ||||
| IC Driving(s) | 1/40 | 1/32 | 1/24 | 1/21 | 1/8 |
| Refreshing Ratio(Hz) | 3840 | ||||
| Maintenance Method | Front and Rear | ||||
| Lifespan(hrs) | 100,000 | ||||
| Storage Temperature/Humidity | -40℃~+80℃/10%RH-98%RH (Non Condensing) | ||||
| Work Temperature/Humidity | -20℃~+60℃/10%RH-98%RH (Non Condensing) | ||||
Common Cathode
| Item | P1.56 | P1.95 | P2.604 | P2.97 | P3.91 |
| Pixel Composition(SMD) | 1112 | 1415 | 1415 | 1415 | 1415 |
| Pixel Pitch(mm) | 1.56 | 1.95 | 2.604 | 2.97 | 3.91 |
| Module Resolution(W×H) | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size(mm) | 250×250×18 | ||||
| Module Weight(kg) | 1 | ||||
| Module Qty/Cabinet(W×H) | 2×4 | ||||
| Cabinet Resolution(W×H) | 320×640 | 256×512 | 192×384 | 168×336 | 128×256 |
| Cabinet Size(mm) | 500×1000/750×500/500×500 | ||||
| Cabinet Area(㎡) | 0.5 | ||||
| Cabinet Weight(kg/cabinet) | 16 | ||||
| Cabinet Material | Aluminium Profiles | ||||
| Cabinet Density（dot/m²） | 409600 | 262144 | 147456 | 112896 | 65536 |
| IP Rating | IP66 | ||||
| White Balance Brightness(nits) | ≥5500 | ||||
| Color Processor(bit) | 14 | 14 | 16 | 16 | 16 |
| Color Temperature(K) | 6500-9000 | ||||
| Visual Angle(H/V) | 140°/ 120° | ||||
| Luminous point centre deviation | ＜3% | ||||
| Luminance uniformity | ≥97% | ||||
| Chromaticity uniformity | Within ±0.003Cx, Cy | ||||
| Contrast Ratio | ≥5000:1 | ||||
| The Max Power Consumption(W/㎡) | 500 | 500 | 500 | 500 | 650 |
| Average Power Consumption(W/㎡) | 168 | 168 | 168 | 168 | 218 |
| Input Voltage | AC100~240V | ||||
| Frequency(Hz) | 50&60 | ||||
| IC Driving(s) | 1/40 | 1/32 | 1/24 | 1/21 | 1/8 |
| Refreshing Ratio(Hz) | 3840 | ||||
| Maintenance Method | Front and Rear | ||||
| Lifespan(hrs) | 100,000 | ||||
| Storage Temperature/Humidity | -40℃~+80℃/10%RH-98%RH (Non Condensing) | ||||
| Work Temperature/Humidity | -20℃~+60℃/10%RH-98%RH (Non Condensing) | ||||

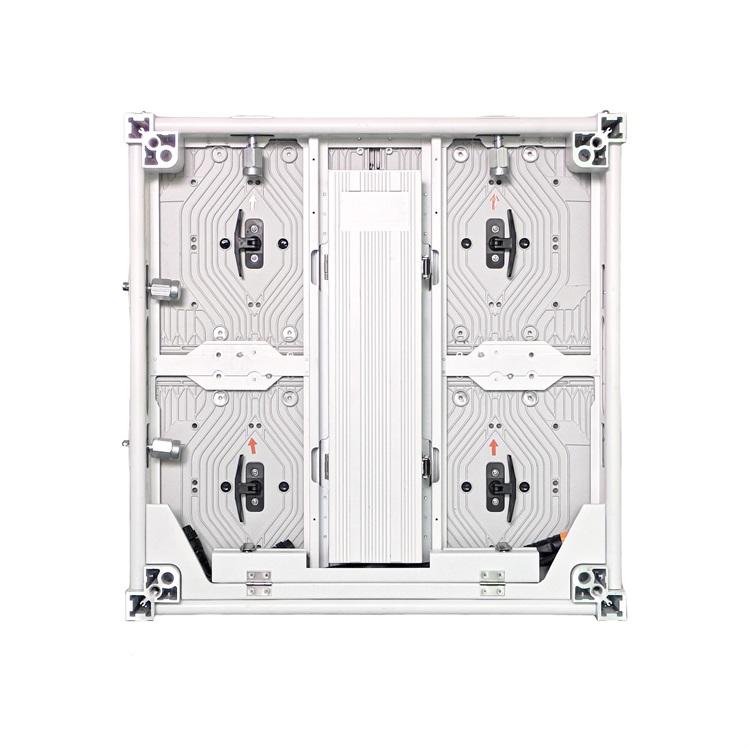

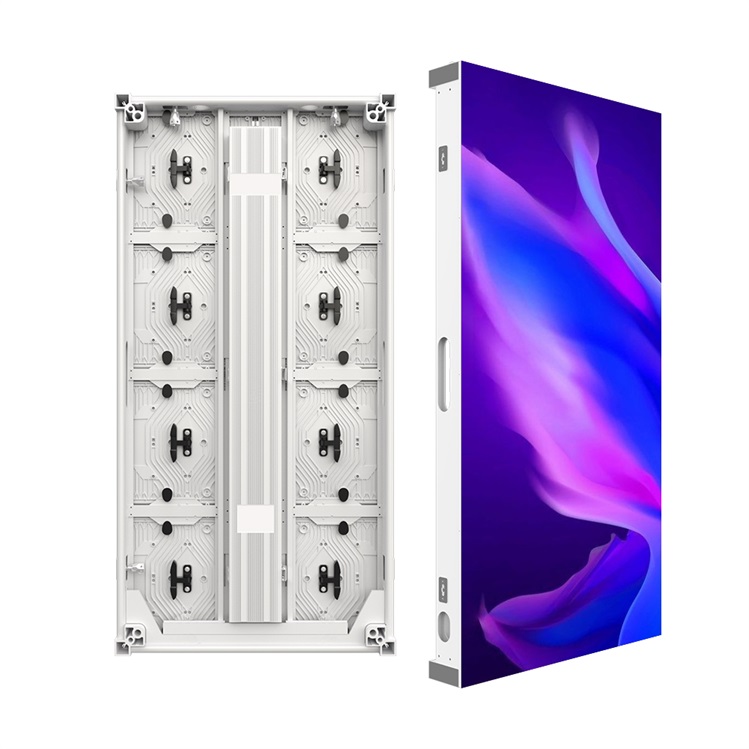

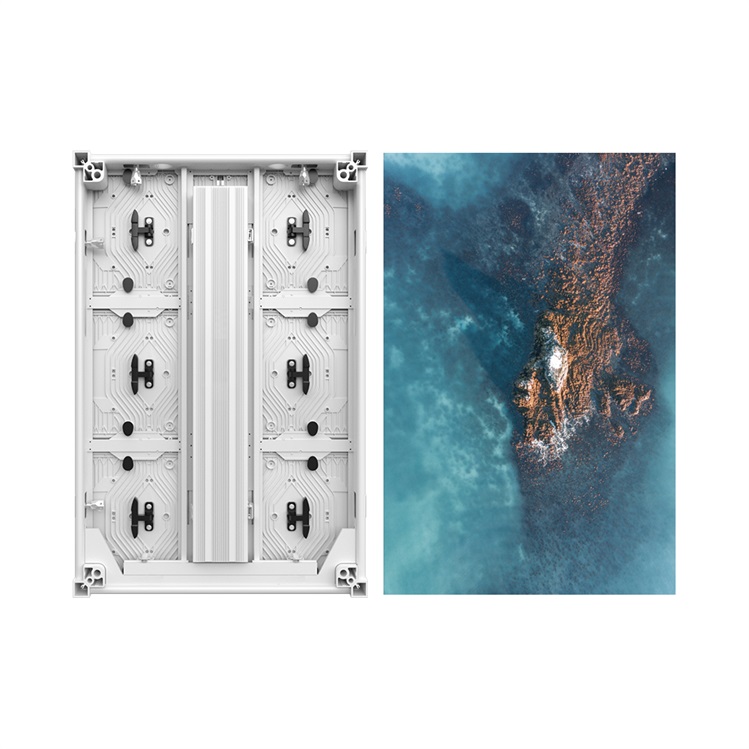

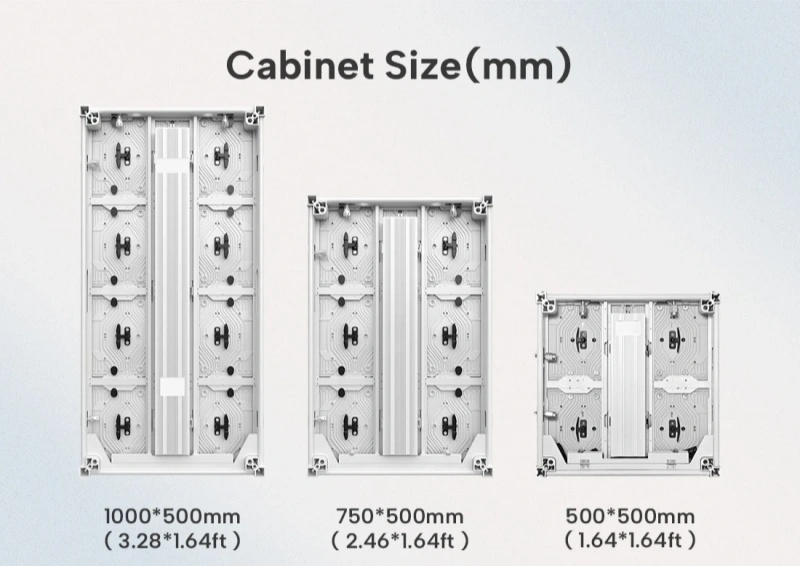

Flexible adaptability is a core requirement for outdoor fixed-installation scenarios, so the HD series led screen addresses installation limitations with its diverse size combinations. In addition to cabinets in three sizes (500*1000mm, 500*750mm, and 500*500mm), we can also customize cabinets to suit different outdoor environments.

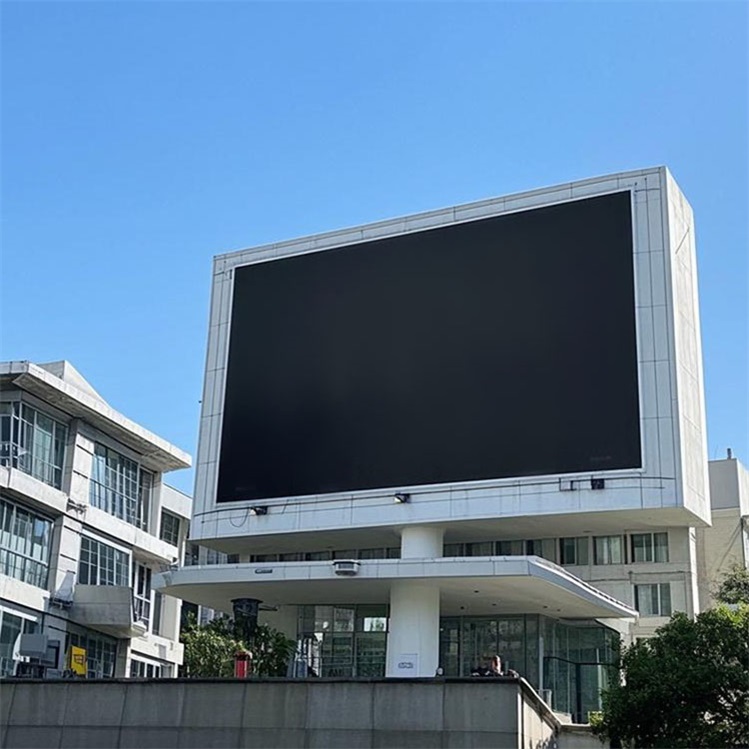

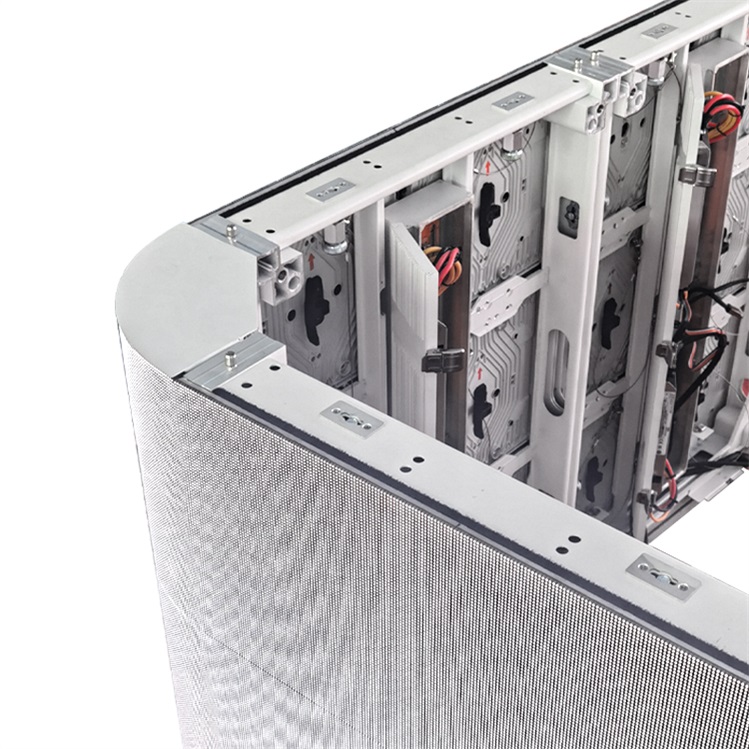

For example, large public squares can utilize 500*1000mm large-sized cabinets, which can be quickly assembled into a massive visual video wall, creating a stunning naked-eye 3D effect. Secondly, for commercial areas, a medium size of 500*750mm is recommended, balancing display effect and space utilization. Furthermore, for smaller venues and street corner advertising, a compact 500*500mm model can be used, precisely fitting into narrow installation spaces and providing a “wide view even in small spaces.” At the same time, the modular splicing design makes the installation process efficient and convenient.
Outdoor Led Displays Advantages
In order to meet the different needs of different customers, Ningshineled will be introduced from the aspects of display performance, protection level, security, energy saving, etc.
01
In order to achieve better display performance
Our HD series LED screen adopts P1.95 P2.6 P2.97 P3.91 small pixel pitch, with high-definition display effect
02
In order to meet the requirements of high waterproof
We use a higher waterproof level than the IP65 in the market, and IP66 protection can be unaffected even in rainstorm
03
In order to enhance safety
We use profile aluminum material, which is lightweight, non flammable, corrosion-resistant, and has excellent heat dissipation effect.
04
In order to save more energy
We have launched a common cathode LED display screen, which saves more than 30% energy compared to common anode technology
- Today, we will not introduce our outdoor LED display screen from the basic 3840Hz refresh rate and 5500nits brightness.
- On the contrary, we introduce our HD series LED display screens from aspects such as service, enclosure, packaging, contrast, color temperature, and maintenance.
Outdoor Led Displays Comparison
Ningshine’s Outdoor Fixed Installation
Others
Service
Five-year warranty, free technical training, free accessories.
Service
2-3 years warranty.
cabinet
Adopting profile aluminum cabinet, reducing weight by more than 30% compared to traditional iron cabinet.
Cabinet
Iron cabinet is very heavy and difficult to install.
SMD package
Advanced SMD ＋GOB technology, so 160 ° full view angle without dead corners, uniform light emission, and anti collision and wear resistance
SMD package
Only SMD packaging, poor consistency of LED beads, uneven color.
contrast ratio
High contrast ratio of ≥ 5000:1, rich details in light and dark images, strong sense of hierarchy, and can still present clear stereoscopic image quality in complex outdoor environments.
contrast ratio
Low contrast, easily reflective.
color temperature
6500K-9000K wide range adjustable, suitable for different countries and application scenarios.
color temperature
3200K-6500K color temperature adjustment.
Grade
High protection level, IP66.
Grade
Other cabinets are only IP65.
Easy to maintain
Front and rear maintenance, lightweight and standard modular design, allowing a single person to quickly repair faults.
Easy to maintain
Rear maintenance, inconvenient to maintain
