Parameter information
| Item | P2.5 | P3 | P4 | P5 | P6.67 | P8 | P10 |
| LEDs Package | 1415 | 1415 | 1921 | 2525 | 3535 | 3535 | 3535 |
| Pixel Pitch(mm) | 2.5 | 3 | 4 | 5 | 6.67 | 8 | 10 |
| Pixel Matrix Per Sq.m | 160,000dots | 111,111dots | 62,500dots | 40,000dots | 22,500dots | 15,625dots | 10000dots |
| Module Dimension(mm) | 320X160 | ||||||
| Cabinet Dimension(mm) | 960×960 | ||||||
| Cabinet Weight(kg) | 35 | ||||||
| Cabinet Material | Iron Cabinet | ||||||
| IP Rate | IP65 | ||||||
| Cabinet Resolution | 384×384 | 320×320 | 240×240 | 192×192 | 144×144 | 120×120 | 96×96 |
| Brightness(nits) | ≥5500 | ||||||
| Scan | 1/16 | 1/13 | 1/10 | 1/8 | 1/8 | 1/5 | 1/4 |
| Min Viewing Distance | 2.5m（8ft） | 3m(10ft) | 4m(13ft） | 5m(16.5ft) | 6.5m(21ft) | 8m(26ft) | 10m(33ft） |
| Color Temperature(K) | 6500-9000 | ||||||
| Gray Scale (bit) | 16 | ||||||
| Visual Angle(H/V) | 160°/ 160° | ||||||
| Max. Power Consumption | 800W | ||||||
| Ave. Power Consumption | 200-300W | ||||||
| Refreshing Ratio(Hz) | 3840 | ||||||
| Maintenance Method | Rear | ||||||
| Lifespan(hrs) | 100,000 | ||||||
| Input Voltage (AC) | 110V-240V,50/60HZ | ||||||
Outdoor LED Wall Advantages

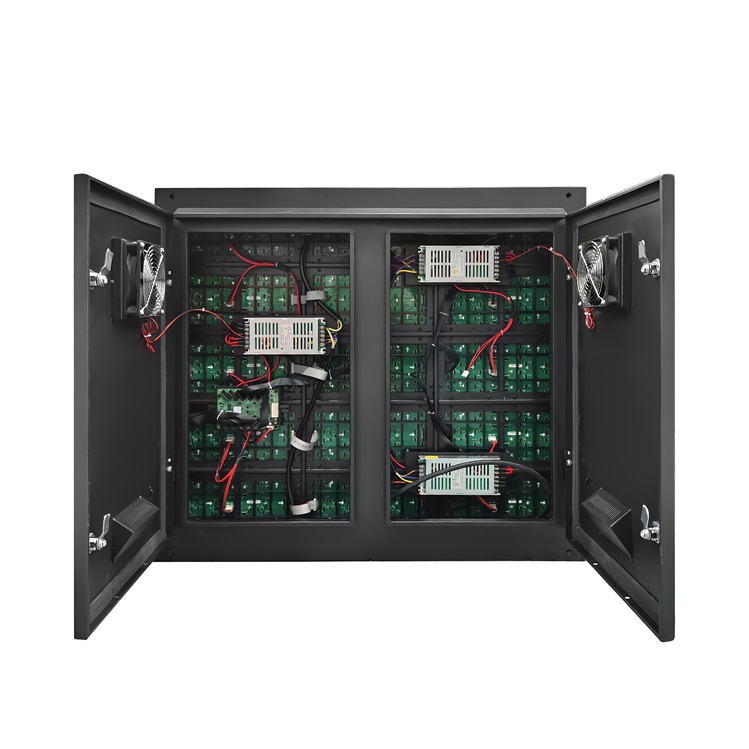

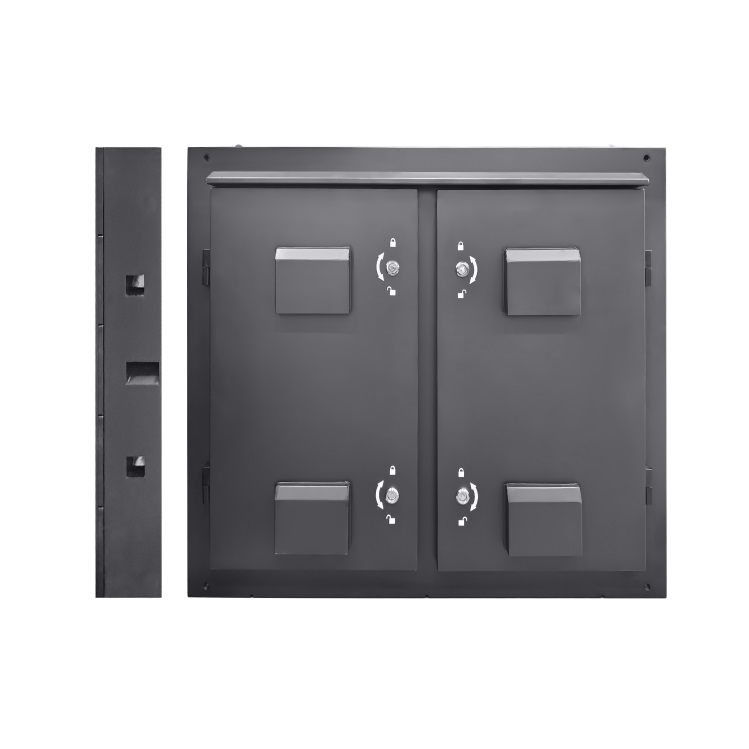

Founded in 2009, Ningshine is a leading LED display manufacturer based in Shenzhen. With a 30,000 square meter factory and 20 R&D engineers, we provide over 100 ODM products to various overseas customers. We also have more than 15 quality inspection processes to ensure that every product entering the market is qualified. In addition, Ningshineled’s outdoor fixed-installation HC series LED display is a customizable screen, with a standard module size of 960x960mm. The HC series LED display is made of iron and incorporates air conditioning to ensure optimal heat dissipation.
Next, we will introduce the advantages of iron box LED screens from the following perspectives.
01
In order to meet the requirements of high brightness
5500nits High brightness, so suitable for working under strong sunlight.
02
In order to meet the requirements of high waterproof
We adopt IP65 waterproofing and conduct strict waterproof testing, so you don’t have to worry about various outdoor weather conditions.
03
In order to meet the demands of application scenarios.

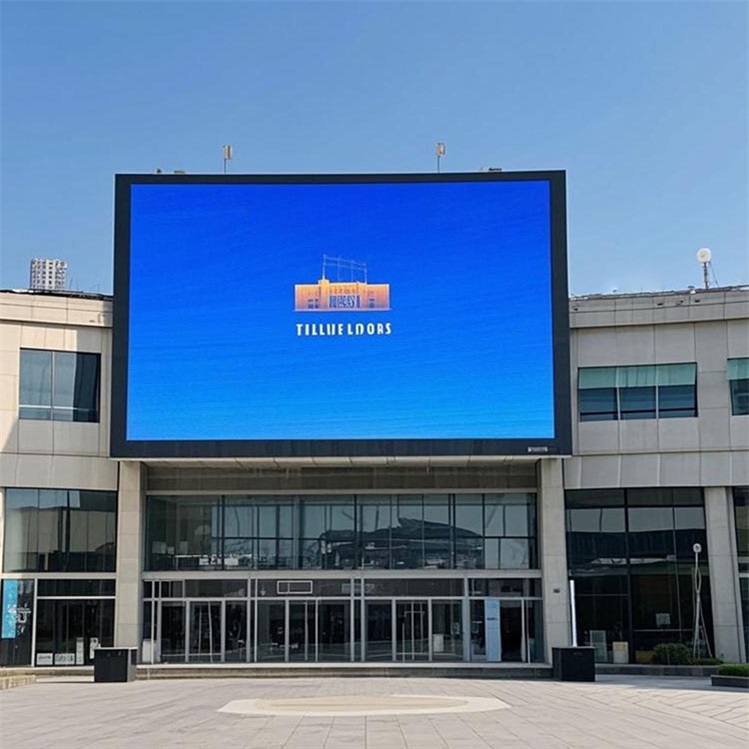

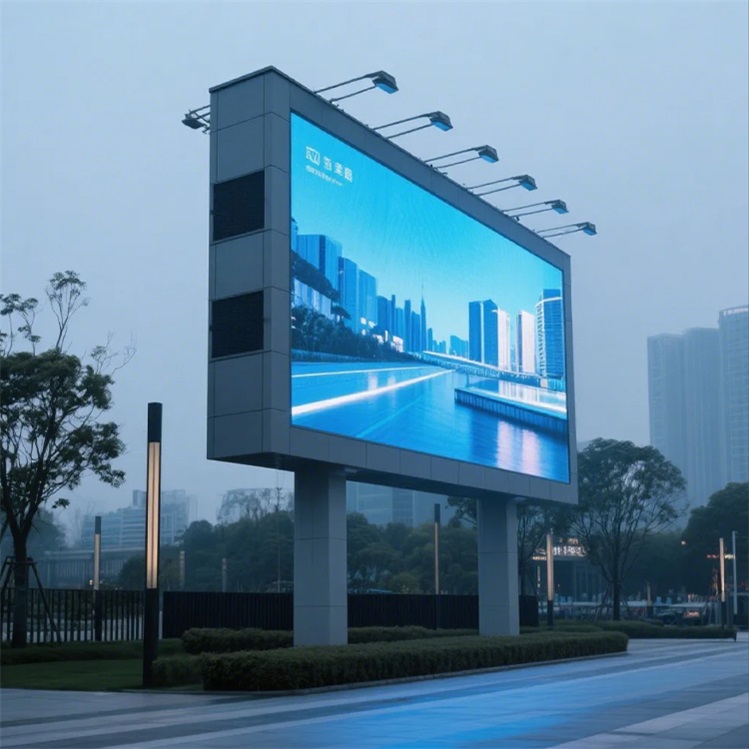

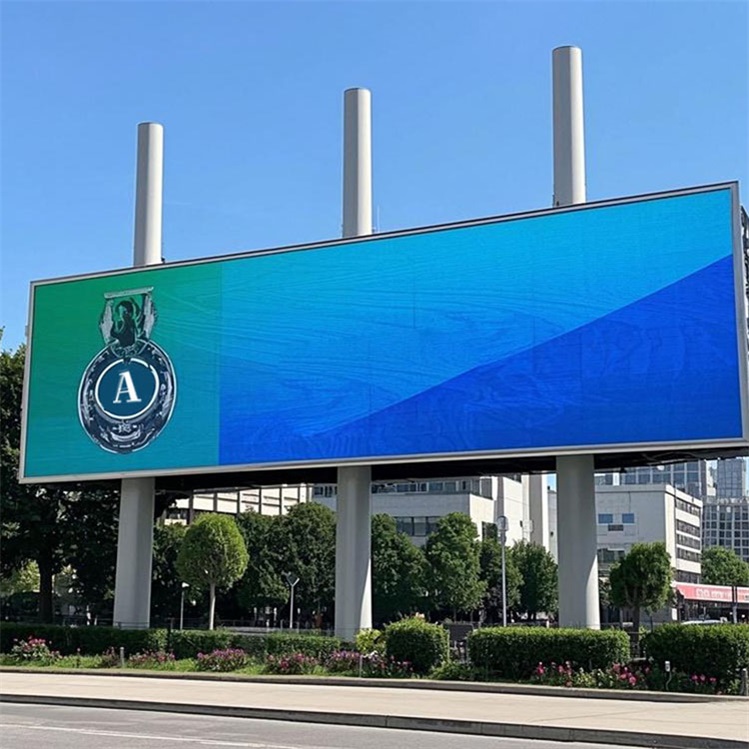

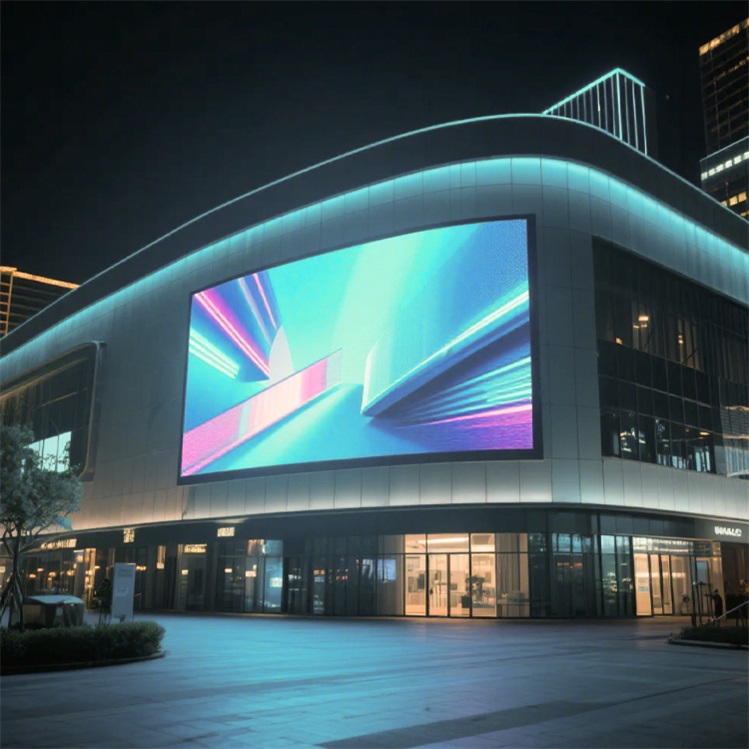

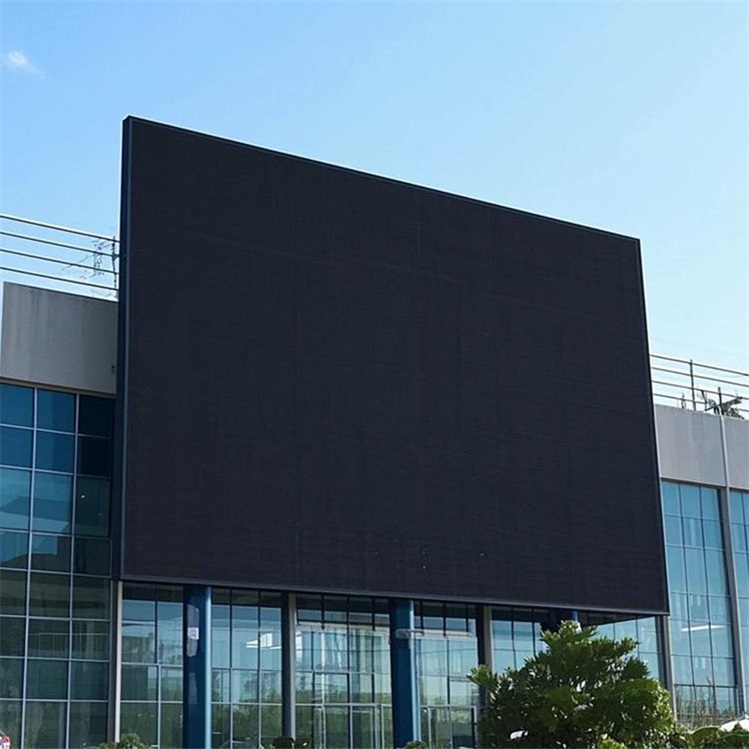

We support various installation methods such as wall mounted installation, embedded installation, and column installation, so that customers can make reasonable choices for their usage scenarios.
04
In order to better heat dissipation effect

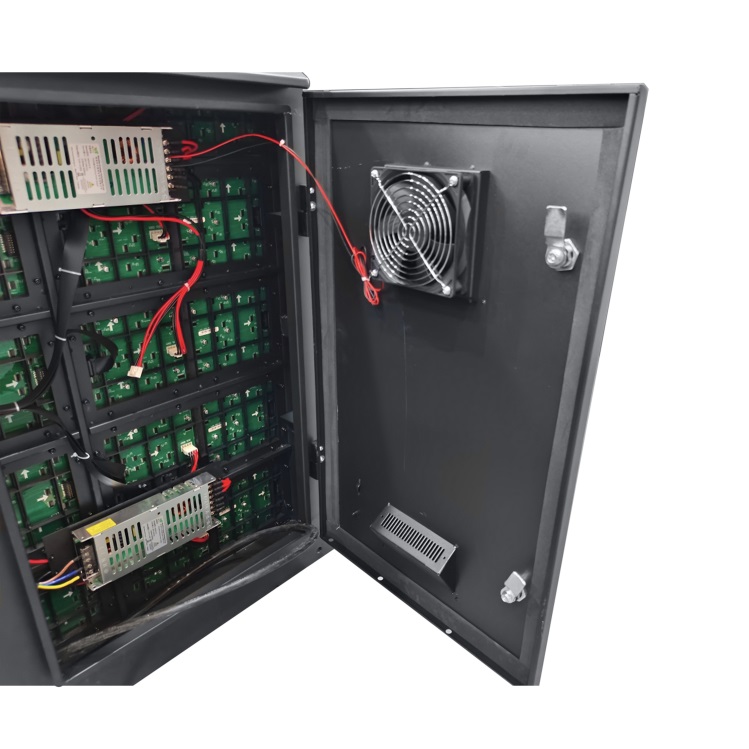

We have added a powerful fan to the back of the box, which significantly improves the heat dissipation effect and ensures stable operation even in summer.
Comparison
Ningshine’s Outdoor Fixed Led Display
Others
Warranty
Five-year warranty, we solemnly promise that during the warranty period, any problems caused by product quality will be replaced with new parts free of charge.
Warranty
2-3 years warranty, quality is not guaranteed.
waterproof
IP65 waterproof, suitable for harsh outdoor climates.
waterproof
The waterproofing is not up to standard, causing water to enter and damage the LED screen.
cooling fan
Powerful cooling fan, good heat dissipation effect.
cooling fan
Poor quality cooling fan, poor cooling effect.
lamp beads
High quality lamp beads, lifespan more than 100,000 hours.
lamp beads
Poor quality lamp beads, damage quickly.
refresh
High refresh IC, 3840HZ refresh, eliminate ghosting and horizontal stripes.
refresh
Low refresh IC,full screen with horizontal stripes and ghosting.
Higher grayscale, 16bit or above, high grayscale display can present more vivid and realistic color effects
Display
Grayscale is less than 12 bits, and the color transition of low grayscale display is very abrupt
PCB board
1.6mm PCB board, 33% thicker than other LED modules, not easy to deform, so the screen is more flat.
PCB board
1.2mm PCB board, very poor flatness and unstable quality.
lamp bead
The lamp bead anti-collision capacity is more than 5 kgs,50% higher than others,more solid,more durable.
lamp bead
The lamp beads have an anti-collision capacity of 2-3 kg, and a slight collision will cause the lamp beads to fall off.
