Parameter: SH Series Led Screen Indoor
| Item | P1.25 | P1.53 | P1.86 | P2.5 |
| Pixel pitch | 1.25mm | 1.53mm | 1.86mm | 2.5mm |
| Pixel density | 640000 | 425000 | 288906 | 160000 |
| Module Size(mm) | 320*160 | |||
| LED package | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Module resolution | 256×128 | 208×104 | 172×86 | 128×64 |
| Module arrangement per cabinet | 2×3 | |||
| Cabinet dimension(mm) | 640×480×32 | |||
| Cabinet weight (including module) | 7kg | |||
| Cabinet resolution (pixels) | 512×384 | 416×312 | 344×258 | 256×192 |
| Maintenance | Full front service | |||
| System backup | Support | |||
| White balance brightness | 800nits | |||
| Pixel-level calibration | Support | |||
| Color temperature | 6500K (adjustable) | |||
| Refresh rate | 3840Hz | |||
| Viewing angle | 160°(V/H) | |||
| Brightness uniformity | ≥99% | |||
| Grayscale level | 14-16bits | |||
| Contrast ratio | ≥5000:1 | |||
| Scanning mode | 1/64 | 1/52 | 1/43 | 1/32 |
| Working voltage (input) | 110-240V,50/60Hz | |||
| Max./Avg. power consumption | 500W/m²/165-260W/m² | |||
| Storage temperature&humidity (RH) | -30~+60℃&10%-95%RH (Non Condensing) | |||
| Working temperature&humidity (RH) | -20~+50℃&10%-95%RH (Non Condensing) | |||
| IP ratings | IP45 | |||
| Screen temperature rise | ≤5°C | |||
| Installation | On-wall/recessed/pedestal/suspended/stacked install | |||
| Signal output | HDMI/VGA/DVI/DP | |||
| Certification | RoHS/FCC/CE | |||
Advantages of Led Screen Indoor

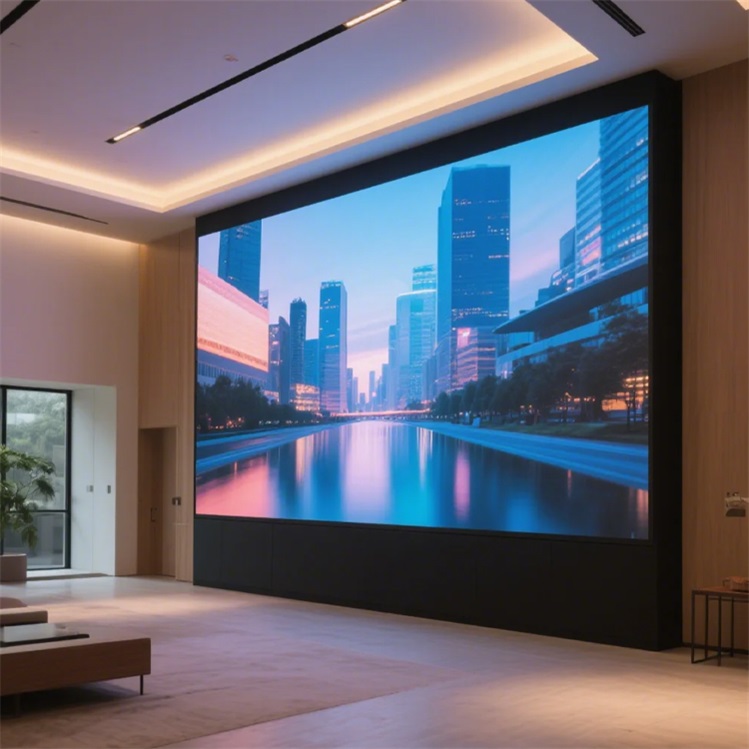

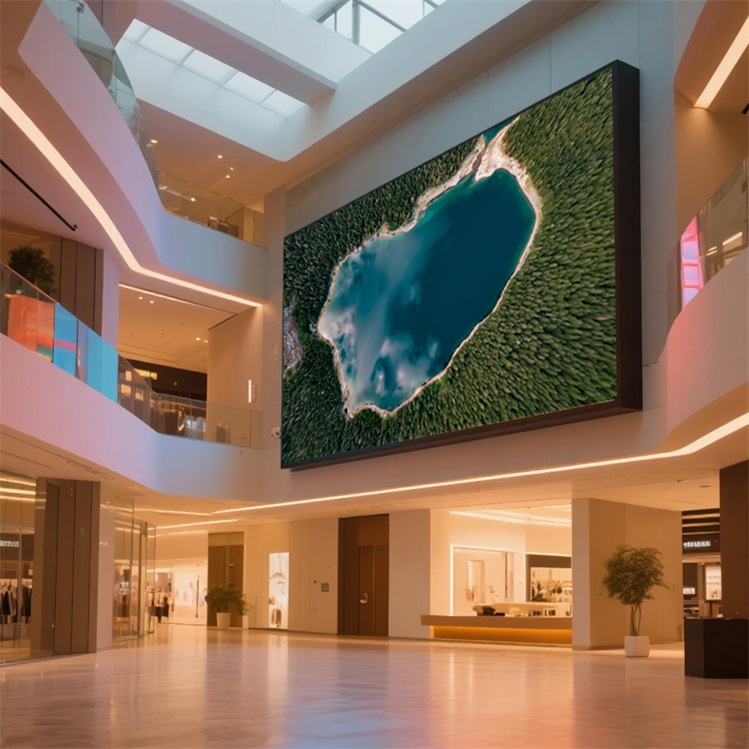

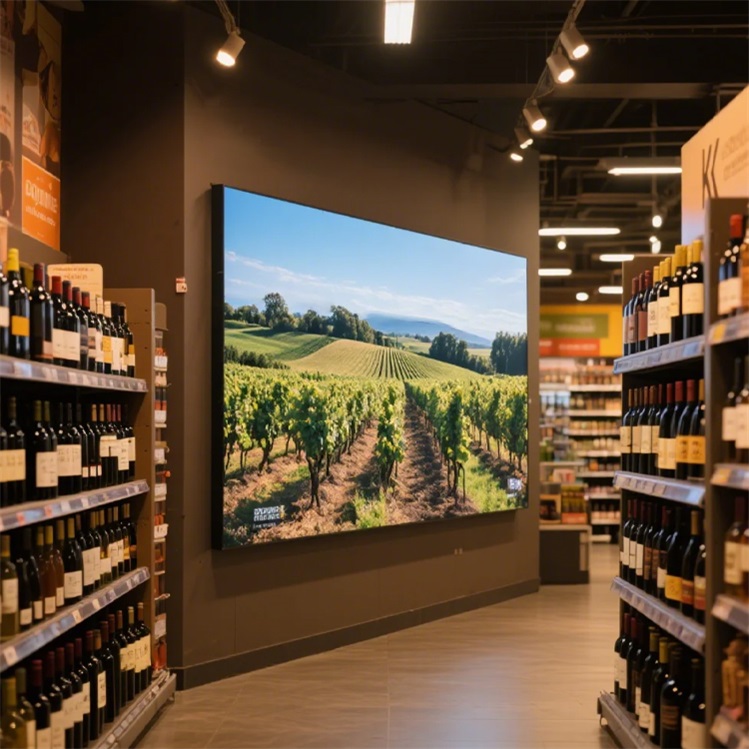

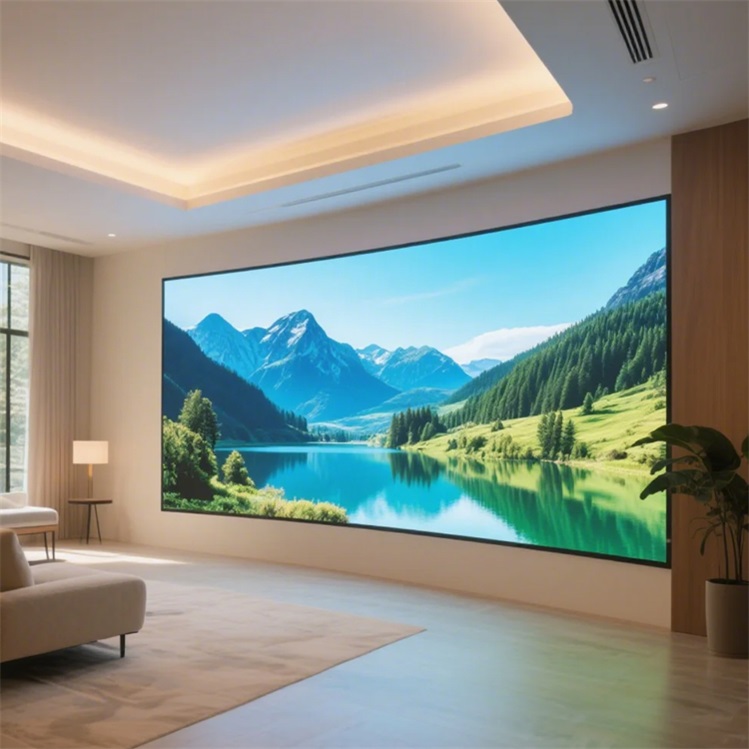

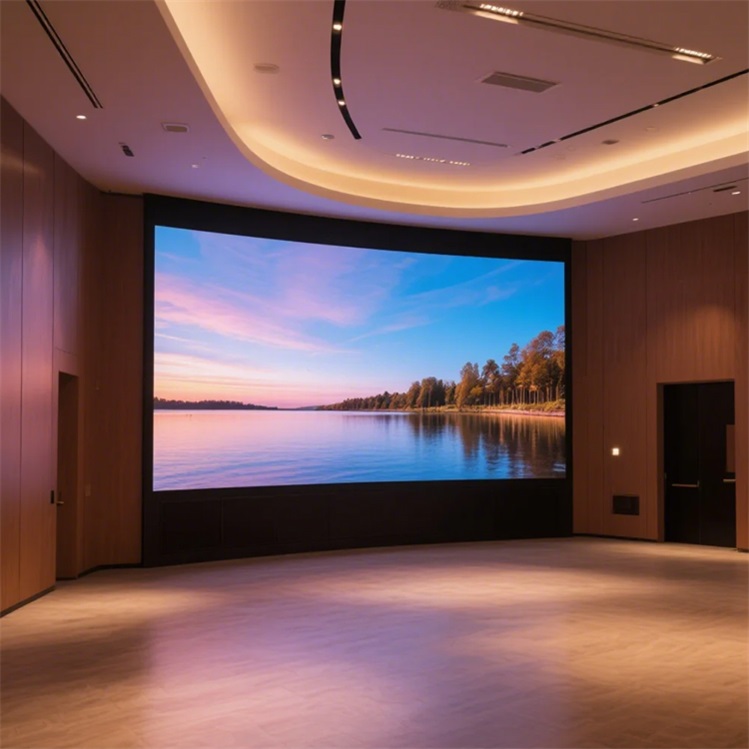

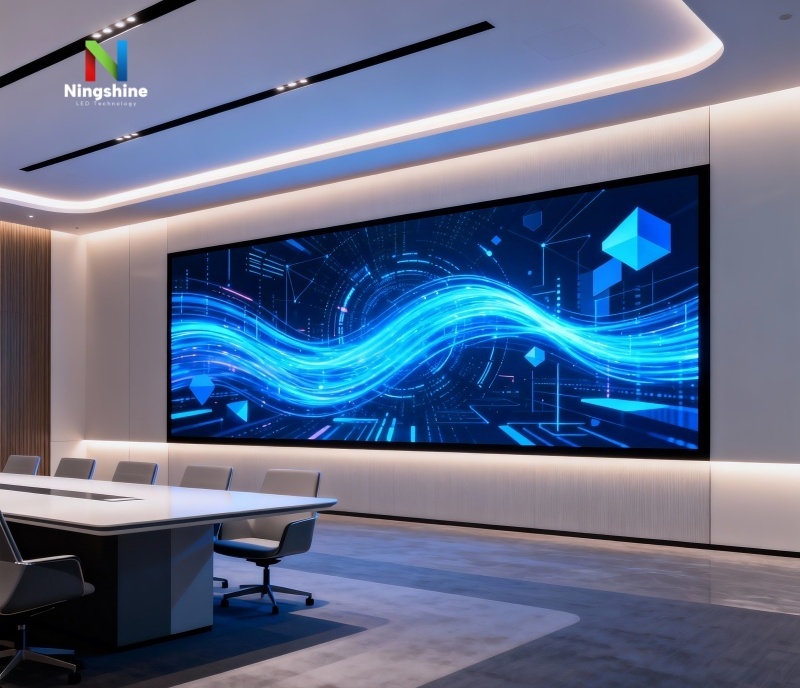

Our SH series is specifically designed for indoor fixed-installation LED displays. It not only precisely adapts to various indoor environments but also benefits from continuous technological and manufacturing upgrades. As a result, it demonstrates significant advantages in display performance, installation and maintenance, and overall stability. It meets the diverse needs of various indoor settings, including conference rooms, control centers, exhibition halls, and studios.
01
In order to achieve better performance
Because we use high-strength die-cast aluminum cabinets, which are resistant to deformation. They also have high flatness, ensuring seamless display. Furthermore, the die-cast aluminum cabinets offer excellent heat dissipation, effectively extending the lifespan of the LEDs and ICs.
02
In order to achieve good display effect.
Meanwhile, we offer pixel pitches ranging from 1.25mm to 2.5mm to meet different viewing distance requirements. Generally, a smaller pixel pitch results in a higher definition and more detailed display.
03
In order to easier maintenance

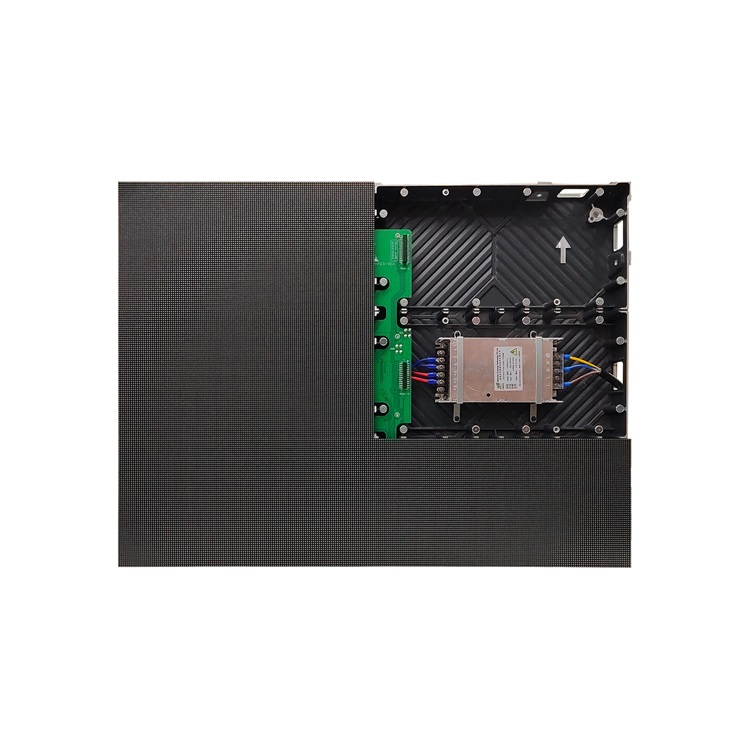

We adopt a modular design, where the module, power supply, and receiving card can be independently replaced. In addition, we adopt a full front maintenance design for easier maintenance.
04
In order to allow customers to freely choose the cabinet size

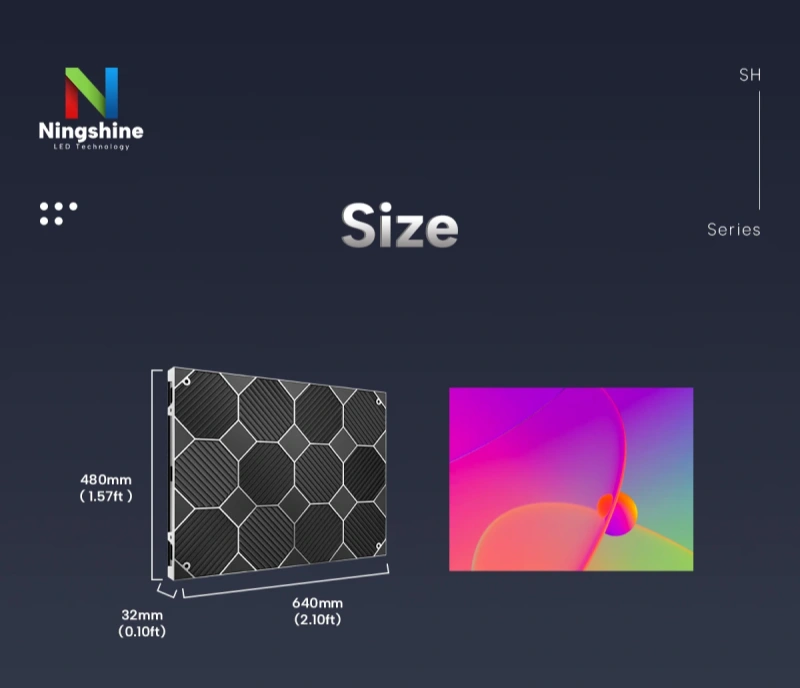

Our SH series is available in two sizes: 640*480mm(2.10*1.57ft) and 600*337.5mm(1.97*1.10ft). Moreover, customers can choose the appropriate cabinet based on the screen size.
Features of Led Screen Indoor
To better showcase the various features of our SH series, so we will describe them in terms of warranty, LEDs, brightness, refresh rate, grayscale, connectivity, and cabinet design.
Comparison
Ningshine’s Indoor Fixed Installation
Others
Warranty
5-year warranty, from core components to overall strict aging testing, support on-site maintenance in some areas.
Warranty
2-3 years warranty, hence the warranty service is not comprehensive.
LED lamp beads
Uses high-consistency, low-attenuation LEDs with a low failure rate, making it suitable for long-term fixed use.
lamp beads
Low quality LEDs with uneven display brightness and short lifespan
Brightness
600-1200nits brightness, so it adapts to ambient light, providing comfortable viewing and preventing eye strain from prolonged use.
Brightness
Low brightness, Thus, poor viewing quality indoors..
Refresh Rate
≥3840Hz high refresh rate, no streaking or black lines in photo and video recording
Refresh Rate
Low refresh rate results in motion blur and flickering, leading to a poor viewing experience for the audience.
Grayscale
14-16bits grayscale, the image has strong depth and dimension, so resulting in a more vivid and realistic display.
Grayscale
Grayscale depth of less than 10 bits, the color transitions displayed are very abrupt and not smooth.
Connection
HUB board connection, eliminating the need for cables, not only reducing contact problems, but also ensuring stable and reliable performance.
Connection
Cable connection, complex wiring, and cumbersome installation.
cabinet
32mm Ultra-thin cabinet, It looks thinner and lighter overall.
cabinet
Normal cabinets are thicker, so resulting in a poor appearance after installation.
The back of the cabinet

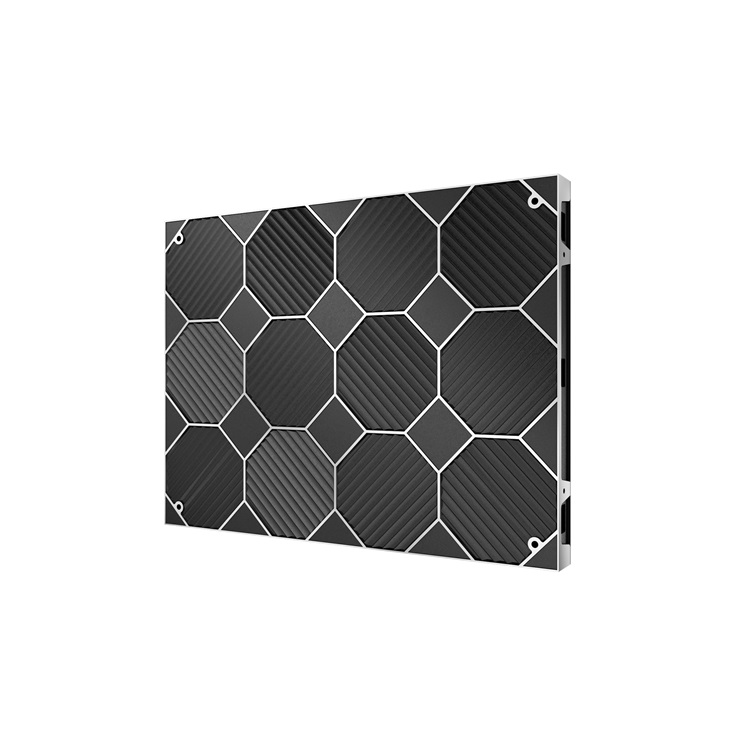

The enlarged and thickened football-patterned structure on the back of the cabinet promotes airflow, meanwhile, effectively lowering operating temperature and providing efficient heat dissipation.
The back of the cabinet
The stripes on the back of the cabinet are small, so resulting in poor heat dissipation.
