Indoor Led Display Parameter
| Item | P1.56 | P1.95 | P2.6 | P2.97 | P3.91 |
| Pixel Composition(SMD) | 1212 | 1515 | 1515 | 2020 | 2020 |
| Pixel Pitch(mm) | 1.56 | 1.95 | 2.6 | 2.97 | 3.91 |
| Module Resolution(W×H) | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size(mm) | 250×250 | ||||
| Module Weight(kg) | 0.5 | ||||
| Module Qty/Cabinet(W×H) | 2×4 / 2×3 / 2×2 | ||||
| Cabinet Resolution(W×H) | 640×160 | 512×128 | 384×96 | 336×84 | 256×64 |
| Cabinet Size(mm) | 1000×250×20 / 750×250×20 / 500×250×20/250×250×20 | ||||
| Cabinet Area(㎡) | 0.25 | ||||
| Cabinet Weight(kg/cabinet) | 4.8 / 3.6 / 2.4 | ||||
| Cabinet Material | Aluminium profiles | ||||
| Cabinet Density（dot/m²） | 409600 | 262144 | 147456 | 112896 | 65536 |
| IP Rating | IP20 | ||||
| White Balance Brightness(nits) | ≥800 | ||||
| Color Processor(bit) | 14 | 14 | 16 | 16 | 16 |
| Color Temperature(K) | 6500-9000 | ||||
| Visual Angle(H/V) | 140°/ 120° | ||||
| Luminous point centre deviation | ＜3% | ||||
| Luminance uniformity | ≥97% | ||||
| Chromaticity uniformity | Within ±0.003Cx, Cy | ||||
| Contrast Ratio | ≥5000:1 | ||||
| The Max Power Consumption(W/㎡) | 500 | ||||
| Average Power Consumption(W/㎡) | 165 | ||||
| Input Voltage | AC100~240V | ||||
| Frequency(Hz) | 50&60 | ||||
| IC Driving(s) | 1/40 | 1/32 | 1/32 | 1/28 | 1/16 |
| Refreshing Ratio(Hz) | 3840 | ||||
| Maintenance Method | Front | ||||
| Lifespan(hrs) | 100,000 | ||||
| Work Temperature/Humidity | -10℃-50℃/10%RH-98%RH (Non Condensing) | ||||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH (Non Condensing) | ||||
Indoor Led Display Advantages
We are a company with over 15 years of experience in LED display R&D and manufacturing, and we own our own factory. Furthermore, based on customer feedback and continuous R&D, our indoor LED displays have evolved with more advanced technology. This applies to both rapid indoor and outdoor setups, detachable LED displays, and permanently fixed LED displays. In particular, our SF series LED display cabinets are ultra-thin, with smaller pitch, clearer display effects, and easier installation, especially for indoor fixed LED displays.

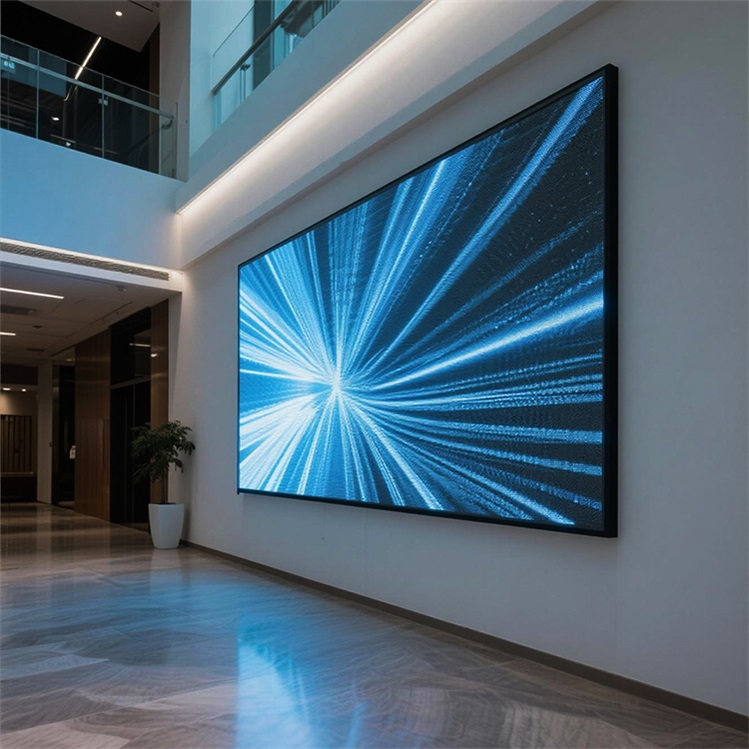

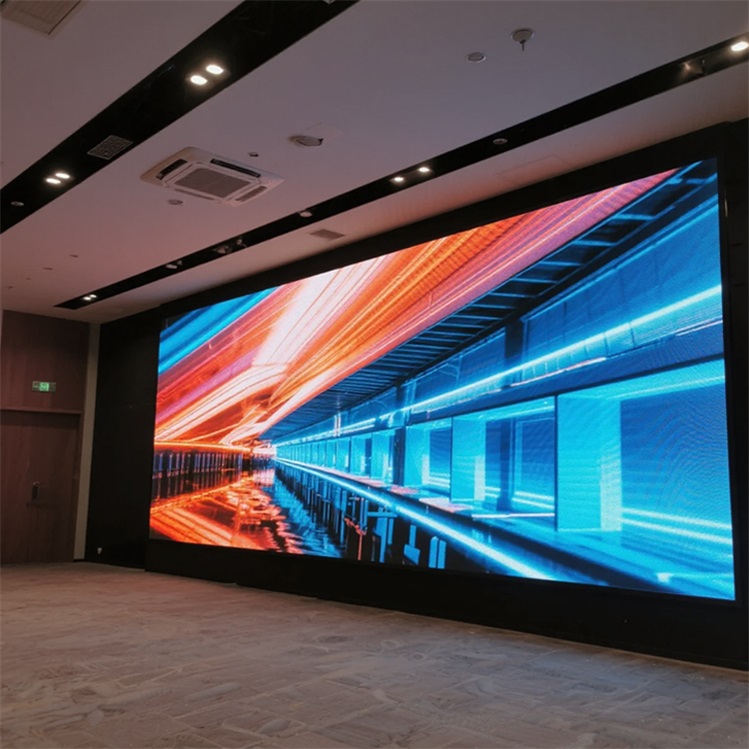

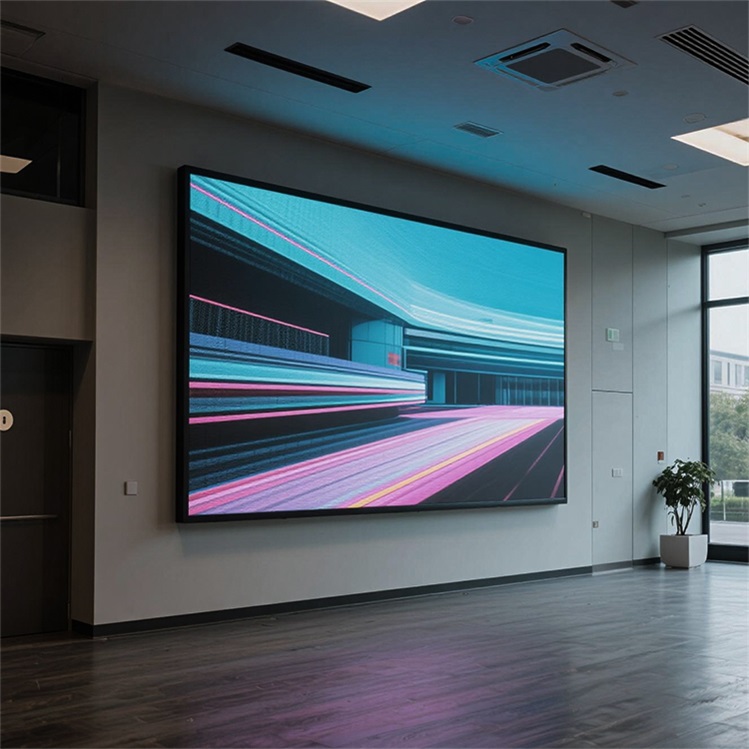

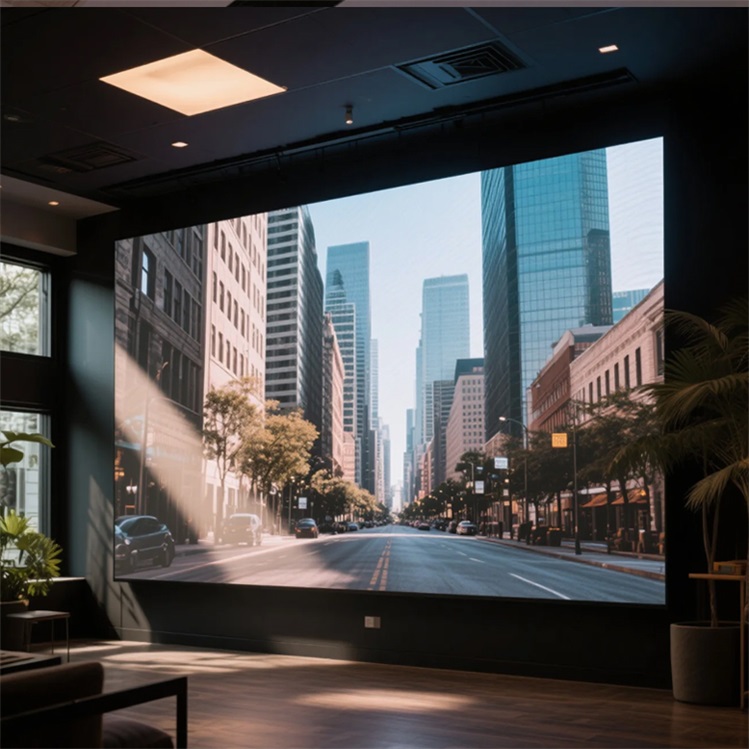

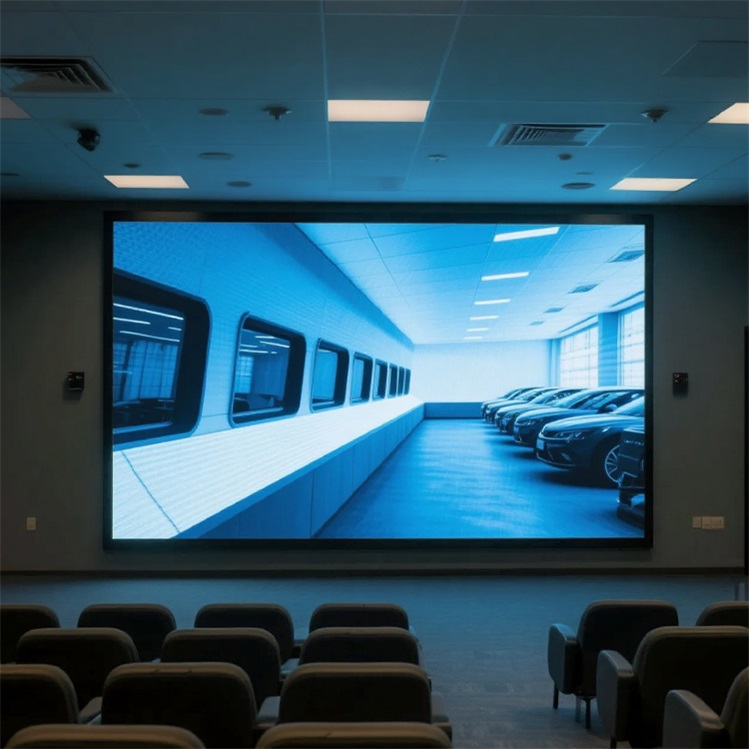

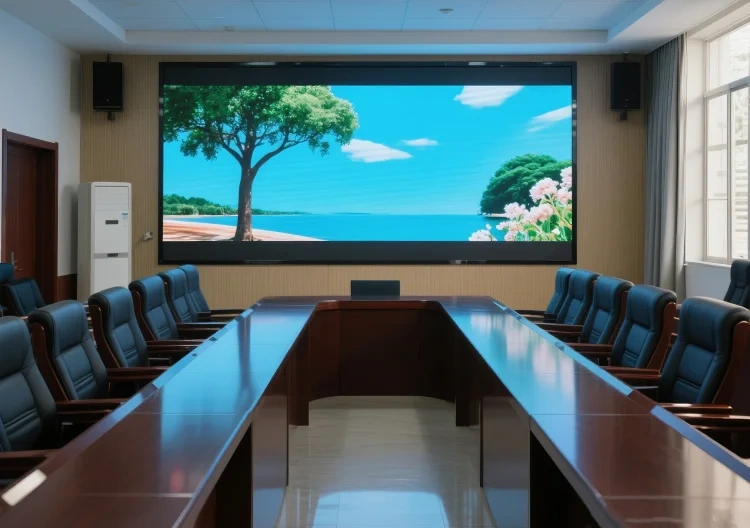

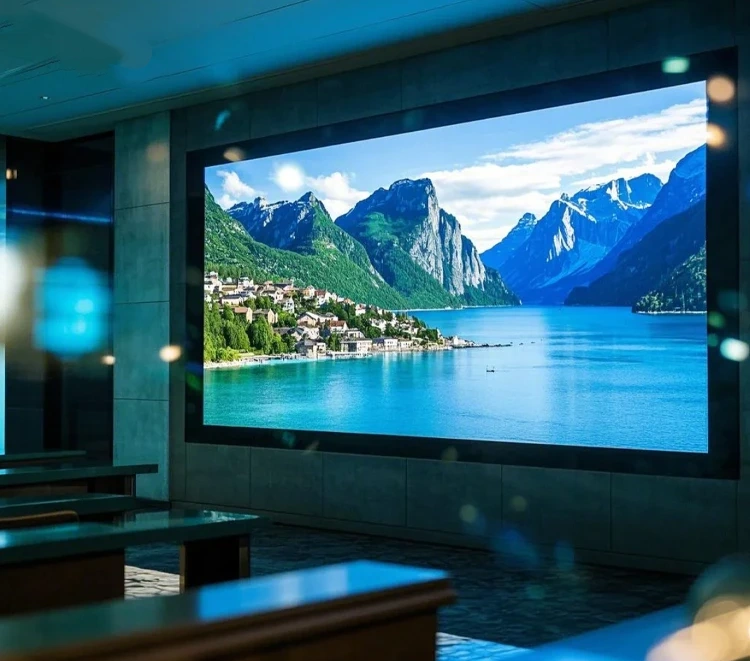

To cater to the diverse needs and installation methods of our numerous customers, our displays offer a variety of installation options, including on-wall, recessed, pedestal, suspended, and stacked installation. Furthermore, we continuously improve our LED displays in terms of pixel pitch, display quality, installation, and cabinet dimensions, aiming to provide a better user experience for our global customers.
01
In order to ultra fine pixel pitch
We offer a variety of pixel pitch options: P1.56, P1.95, P2.604, P2.97, and P3.91, at the same time, designed to provide customers with clear and realistic visual effects.
02
In order to achieve better display effects
We selected a small-pitch, high-refresh-rate, high-grayscale LED screen and performed point-by-point calibration.
03
To make installation easier

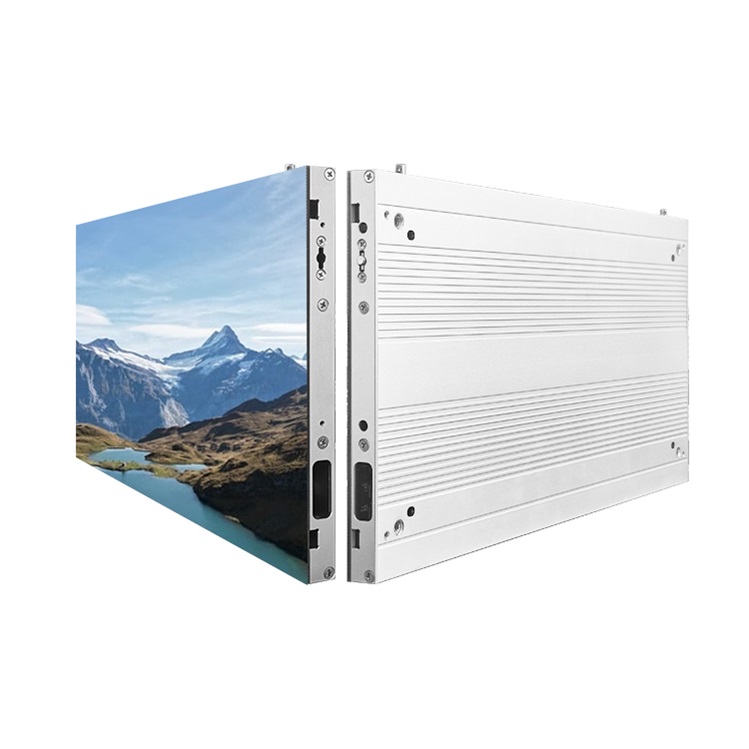

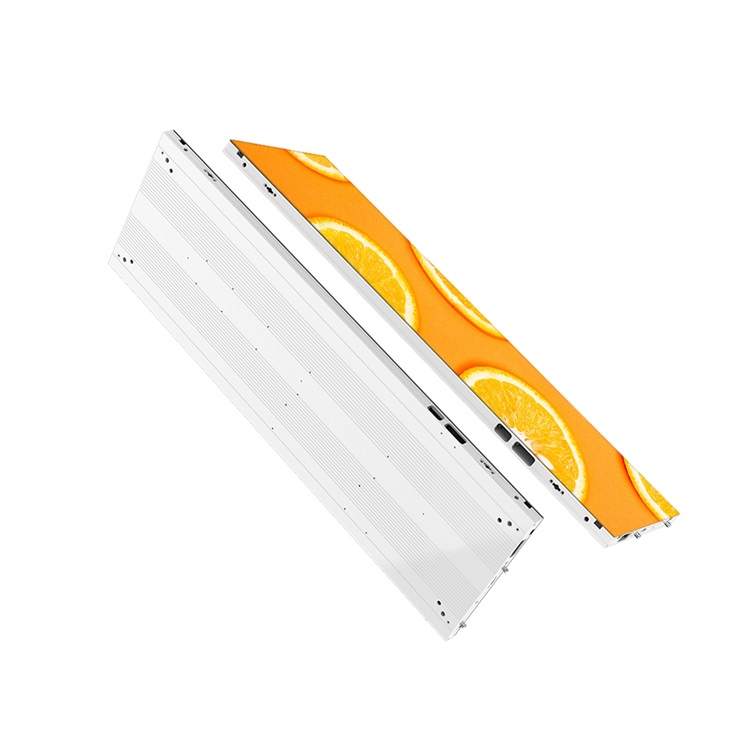

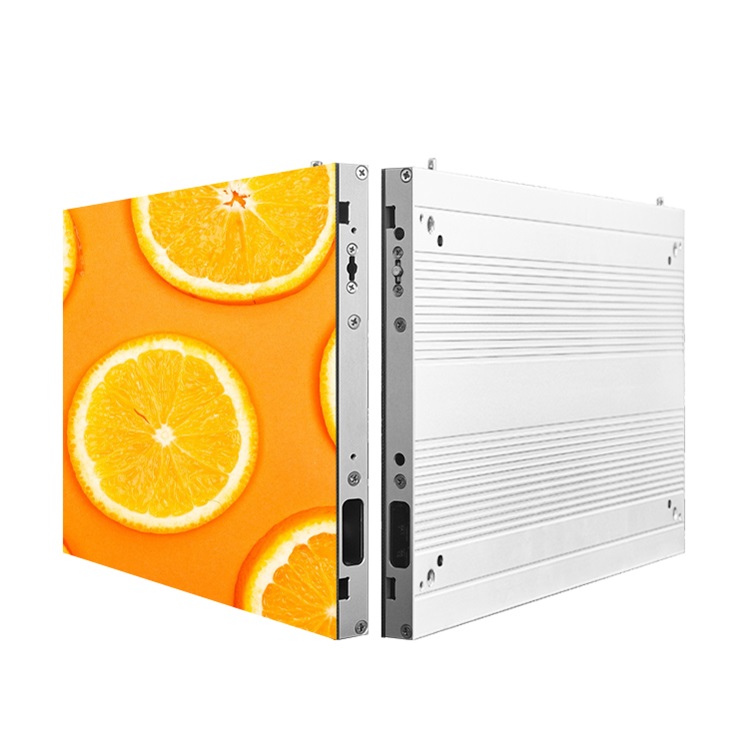

We use die-cast aluminum material, and the cabinet is only 20mm thick, supporting wall-mounted, recessed installation, and front maintenance.
04
To meet the requirements of different customers

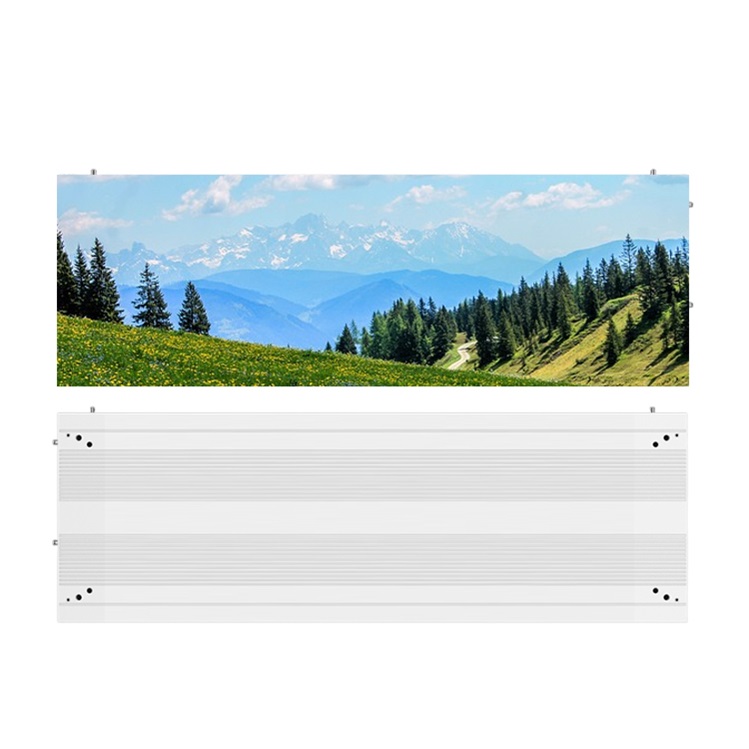

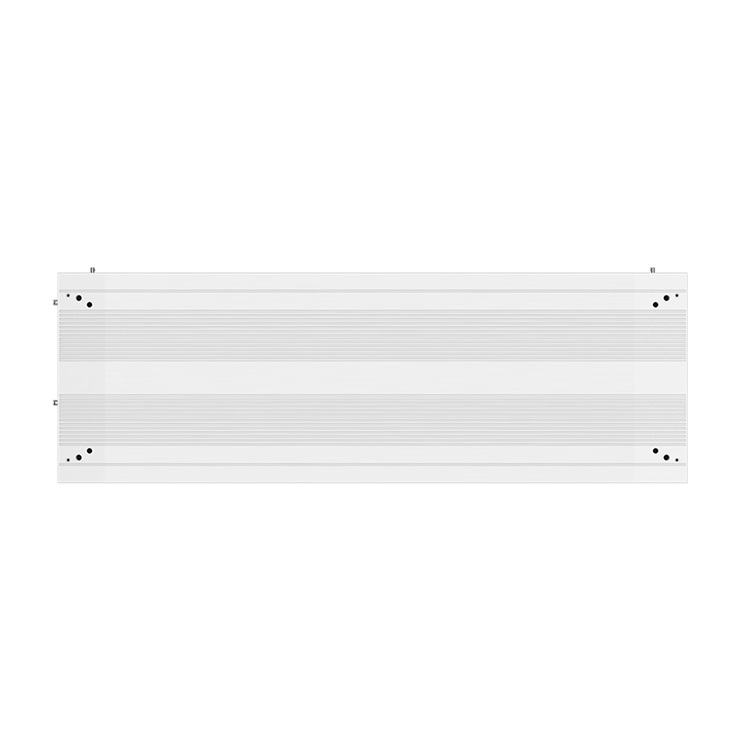

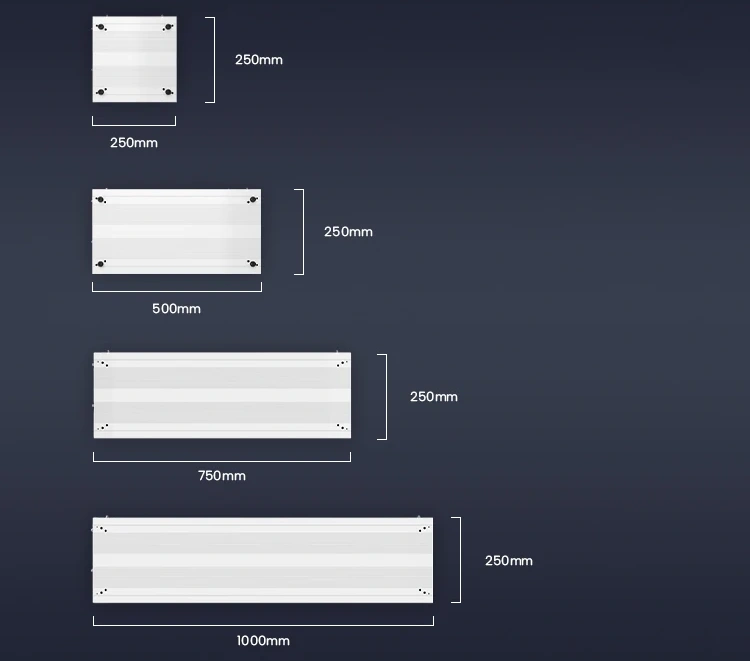

We offer various cabinet sizes including 1000*250mm, 750*250mm, 500*250mm, and 250*250mm.
Indoor Led Display Comparison
Ningshine’s Indoor Fixed Installation
Others
Warranty
Five-year warranty, We offer a professional after-sales team, 24/7 technical support, and on-site maintenance services.
Warranty
2-3 years warranty, quality and service are difficult to guarantee.
lamp beads

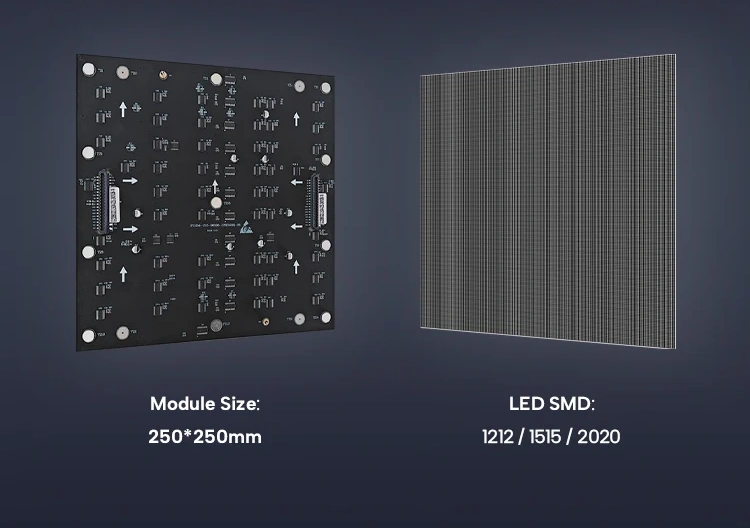

We use high-quality SMD (1212/1515/2020),Kinglight LEDs, which provide uniform brightness and stable color display.
lamp beads
Using low-quality LED lamp beads results in uneven display brightness.
2mm PCB board
Enhanced 2mm PCB design allows for better current distribution, improved bending resistance, and enhanced long-term stability.
1.2mm PCB board
The PCB board is only 1.2mm thick, so resulting in poor flatness and heat dissipation.
drive
Equipped with a 1/16 to 1/40 scan drive, it enables precise current control, supports multiple signal sources (DVI, HDMI, DP, SDI)
drive
Low-quality ICs drive the system, resulting in inaccurate and unstable current control, and a single signal source.

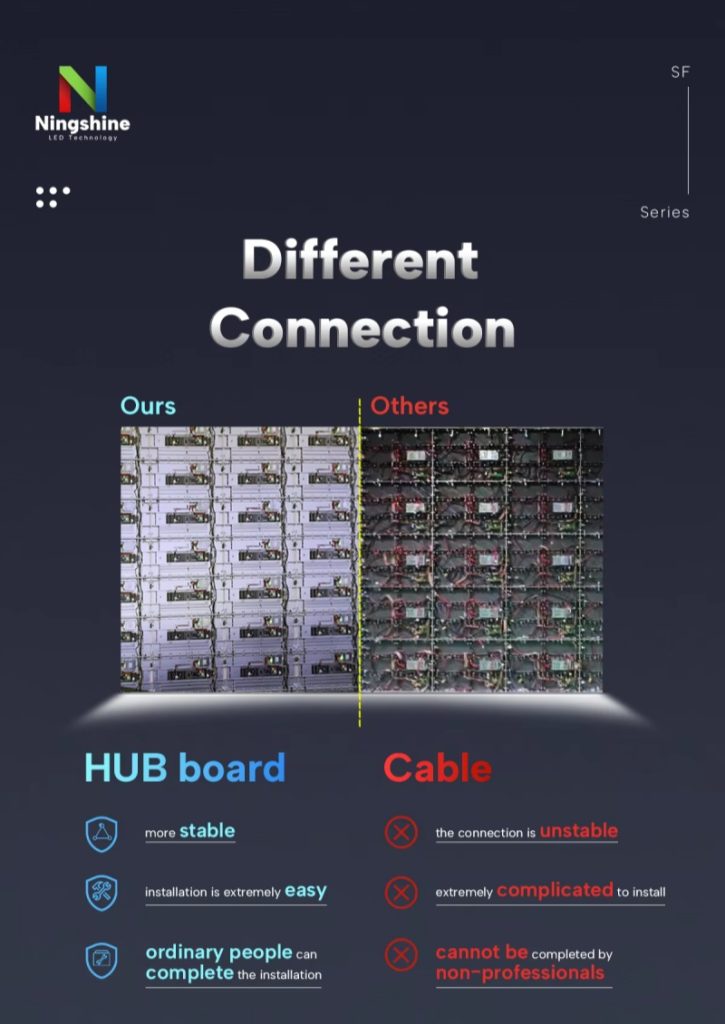

connection
High-quality HUB board connections ensure stable signal transmission and reduce failure rates. Supports multiple signal inputs.
connection
Traditional wire connections are inconvenient to install and connect.
refresh
High refresh driver ICs provide a 3840Hz refresh rate, flicker-free display, and stable display performance.
1920Hz refresh
Low refresh rate, full-screen scan lines, poor display quality.

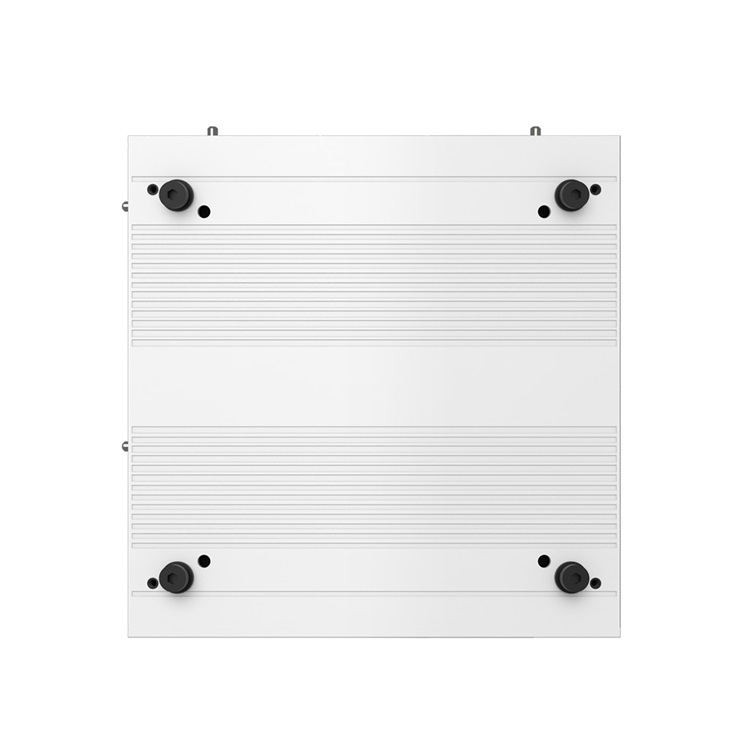

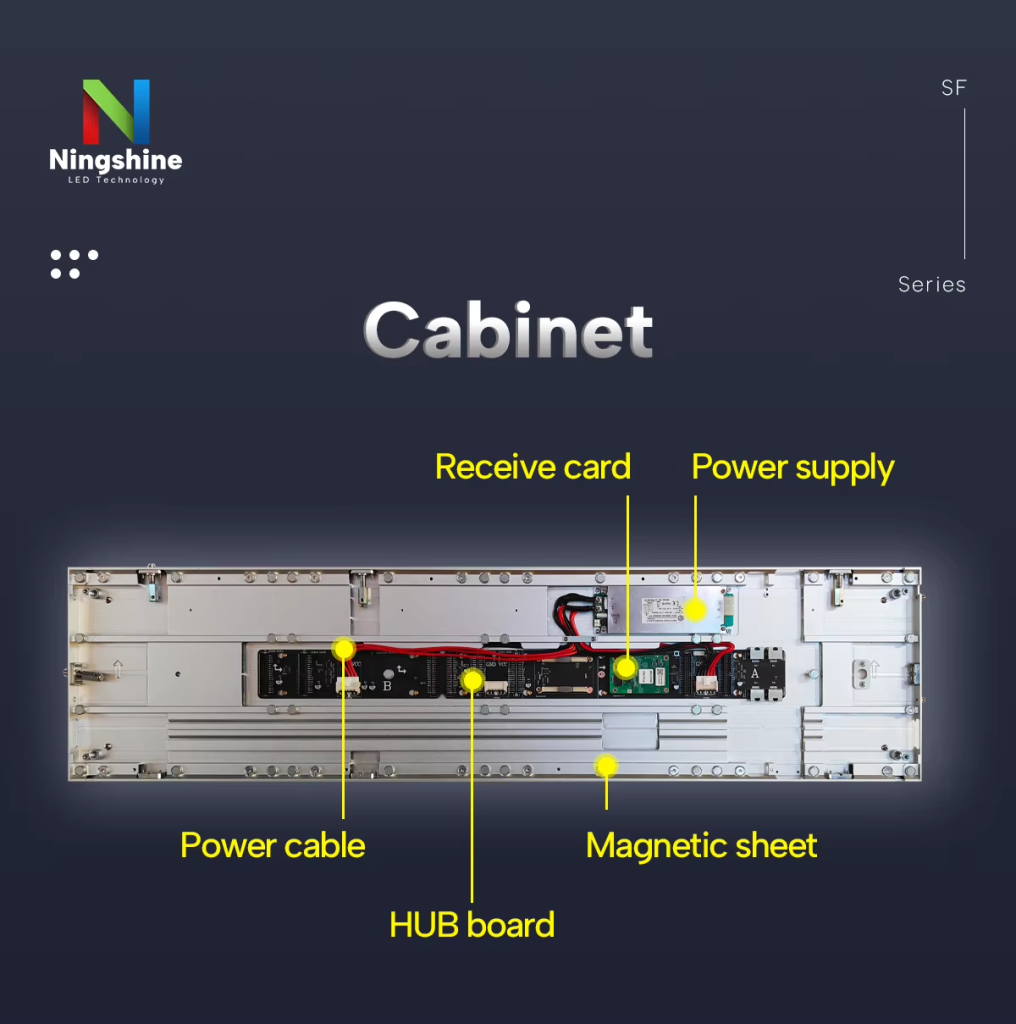

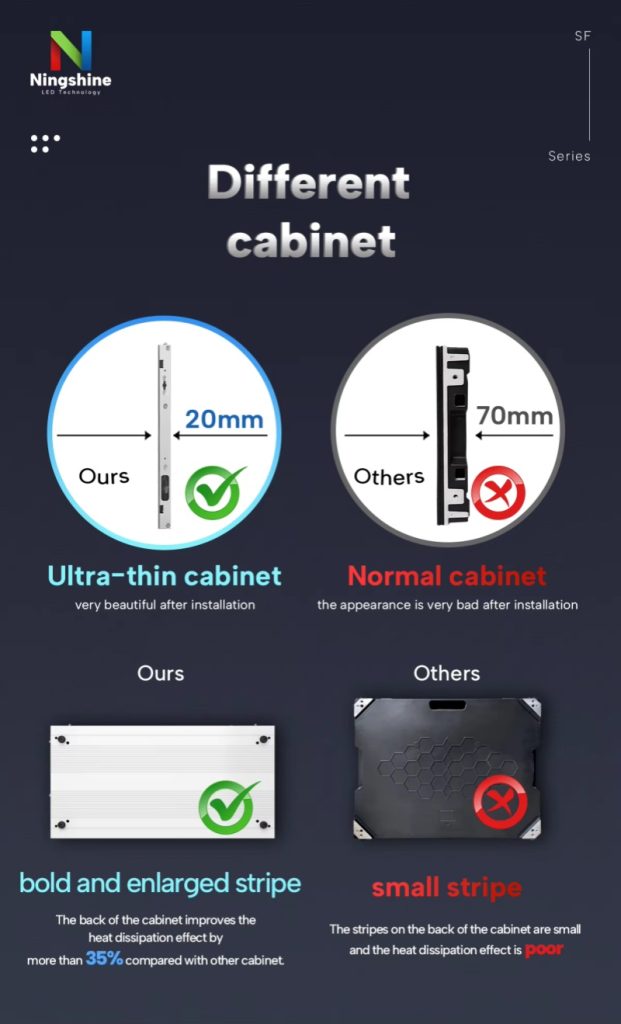

cabinet

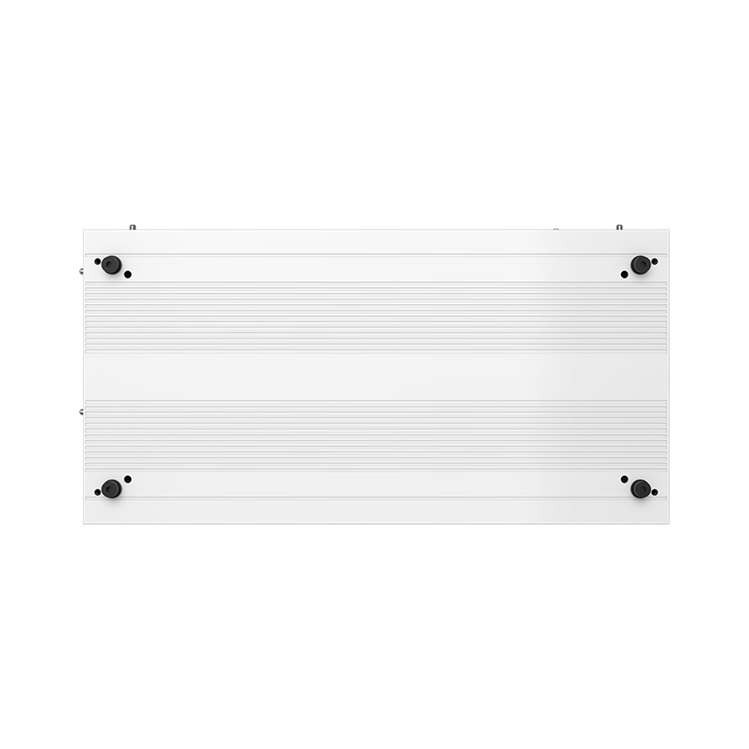

Ultra-thin die-cast aluminum cabinet, greatly improving heat dissipation. And modular design, supports front maintenance.
cabinet
Made of other materials, the cabinet has poor heat dissipation, especially the iron cabinet, which requires the addition of a fan to improve heat dissipation.
Complete Certifications
Certified by CE, RoHS, FCC, etc., quality is guaranteed and export is worry-free.
Complete Certifications
Incomplete certifications mean product quality cannot be guaranteed.
