| Product | HC Series |
| Pixel Pitch | P4(4mm) |
| LED Screen Size | 8640x3840mm(28.4×12.6ft) |
| Resolution | 2160x960dots |
| Cabinet Material | Iron |
| Control System | Novastar(CMS260) |
Customer Requirements
The client needs a quote for an outdoor LED screen with pixel pitches of P4, P5, and P6.67. After discussion, the client is considering P4 and P5 pixel pitches for the installation of a high-definition outdoor screen. The screen will be approximately 9 LED panels wide and 4 LED panels high. Key requirements include a brightness of ≥5500 nits, IP65 or higher waterproof rating, 3840Hz refresh rate, and 48-hour testing.
Our solution
Based on the client’s budget and requirements, we recommended the HC series LED display. Its robust iron casing offers excellent protection and efficient heat dissipation, making it particularly suitable for outdoor fixed installations. Ultimately, the client selected a P4 pixel pitch, and based on their 9x4m LED panel layout, we configured 36 960x960mm LED panels. We also provided 3D installation drawings, GGS inspection, and remote control assistance.
P4 LED Screen During-sale

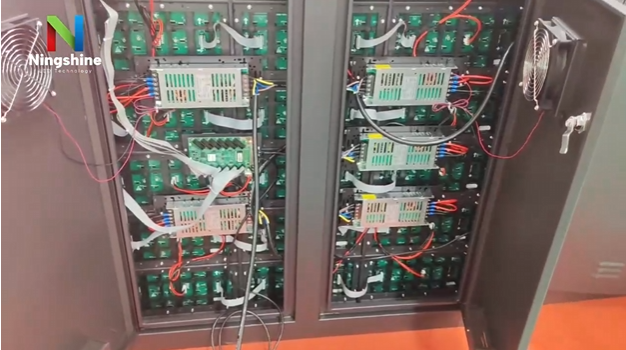

- Production of LED display screens
- Equipped with a Nova CMS260 video processor, supporting 4 network port signal inputs (HDMI, DVI, SDI, etc.).

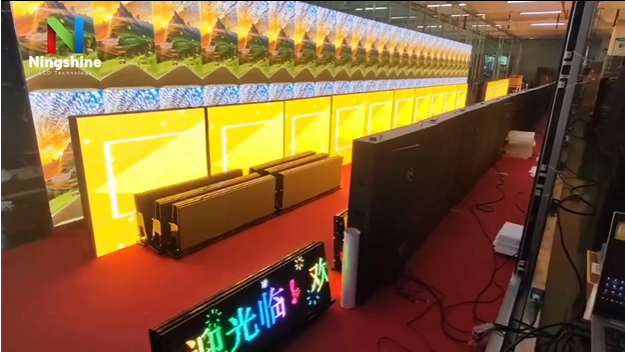

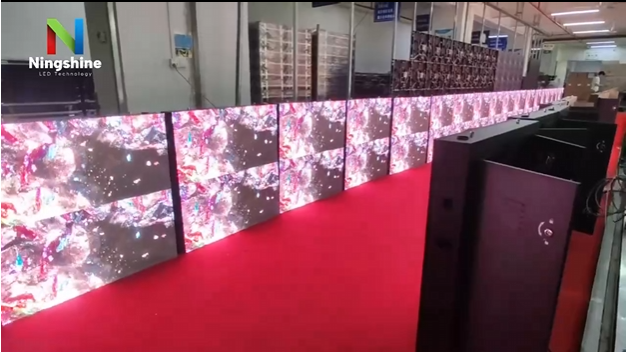

- We complete the production, a 48-hour aging test will be conducted, and an aging video will be sent to the customer.
- GGS Inspection. GGS will conduct on-site inspections of refresh rate, brightness, grayscale, and waterproofing.
- Qualified customs clearance and logistics delivery, with real-time status updates provided throughout the process.
P4 LED Screen After Sales

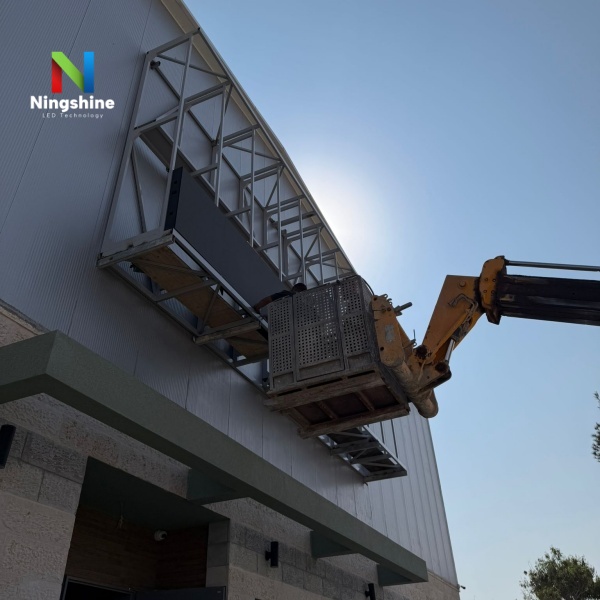

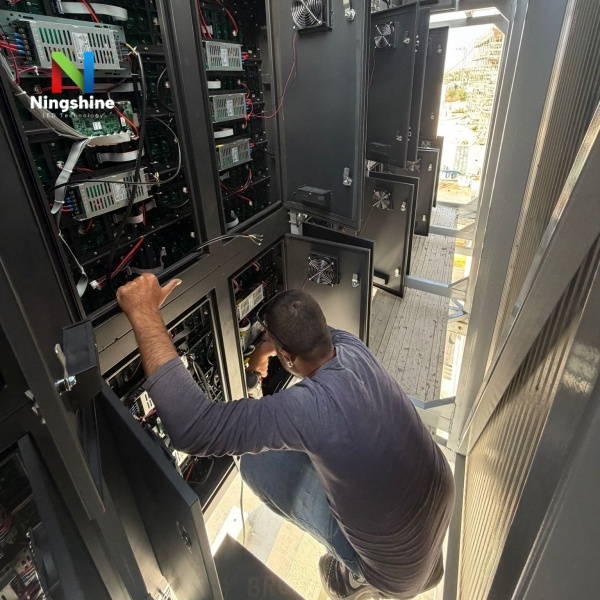

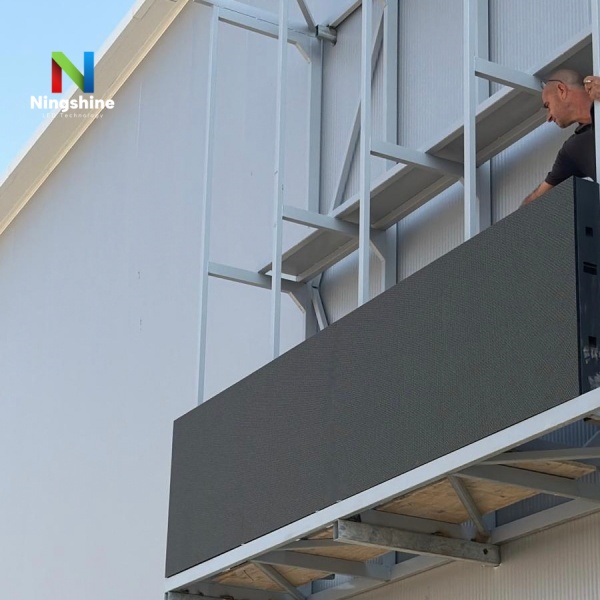

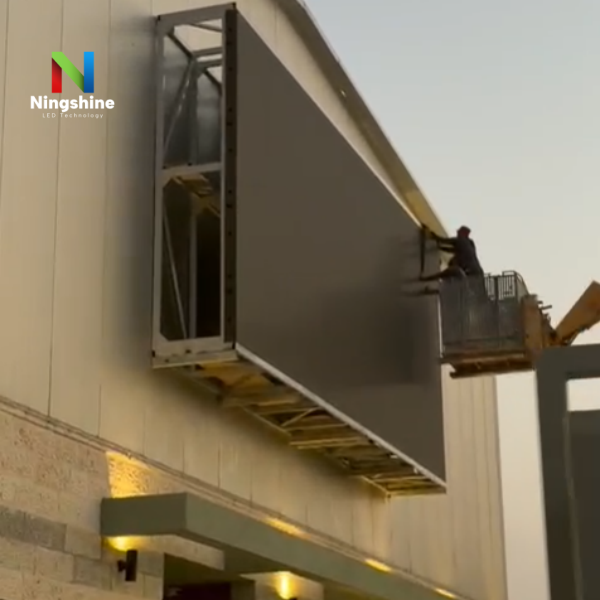

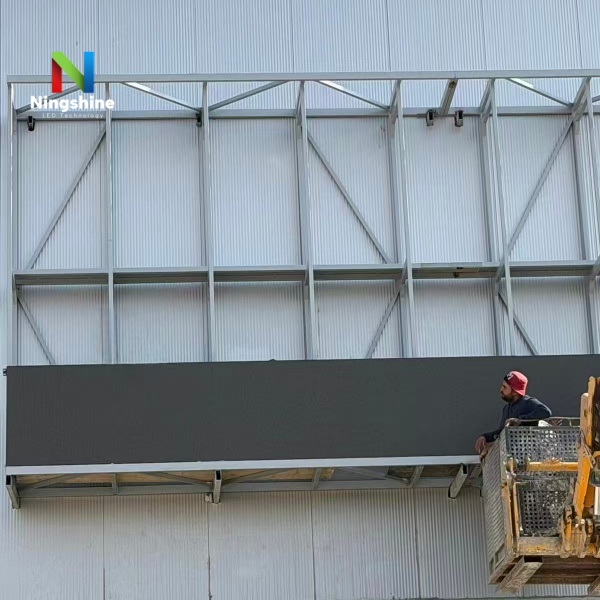

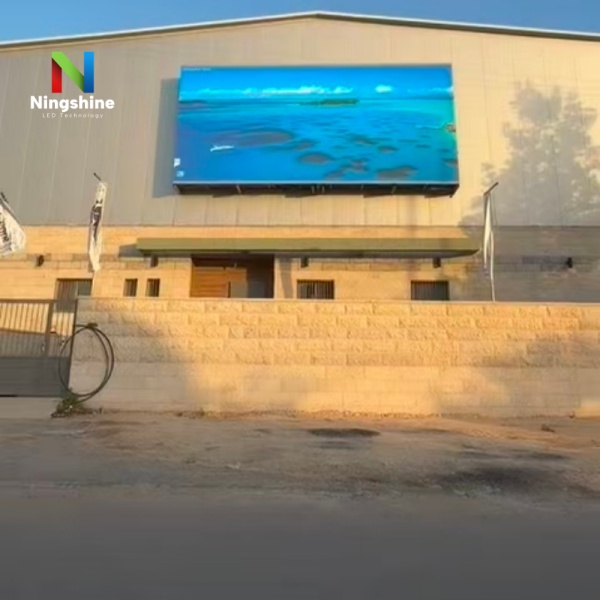

After receiving the equipment, the customer proceeded with the installation, including assembling the steel structure frame. During this process, the cabinets, modules, and wiring were installed one by one according to the layout. Finally, after installation, testing was conducted.
