- 3x2m LED Screen one-stop solution
| Series | NS Series |
| Pixel Pitch | P3.91(3.91mm) |
| Cabinet Size | 500*1000mm |
| Screen Size | 3x2m |
| Refresh Rate | 7680Hz |
Customer requirements
The customer needs an indoor stage screen for the bar. They will install it in the center of the bar, with many dining tables nearby. At the same time, the customer wants an indoor P3.91 LED display screen with a size of 3m (width) x 2m (height). In addition, as a stage background display, it can play high-definition video and sync perfectly with bar lighting effects.When shooting with a camera/phone, no water ripples. Furthermore, the front end of the screen is a stage stand, and the LED display screen is located behind the stage. Please help recommend which installation method to use. There are also requirements for heat dissipation and noise reduction to avoid affecting the customer experience. Finally, due to the large number of people coming and going at the bar and the long operating hours, please recommend a maintenance friendly option.
Our solution-3×2m LED screen
In response to the above requirements, we recommend using the P3.91 high-definition rental/fixed dual-use die cast aluminum cabinet LED display screen. The recommended reasons are as follows:
- Pixel pitch of 3.91mm, suitable for viewing distances of 4-10m, pixel density of 65536 dots/㎡, high image delicacy.
- 7680Hz refresh rate, eliminates flicker, and ensures normal phone shooting.

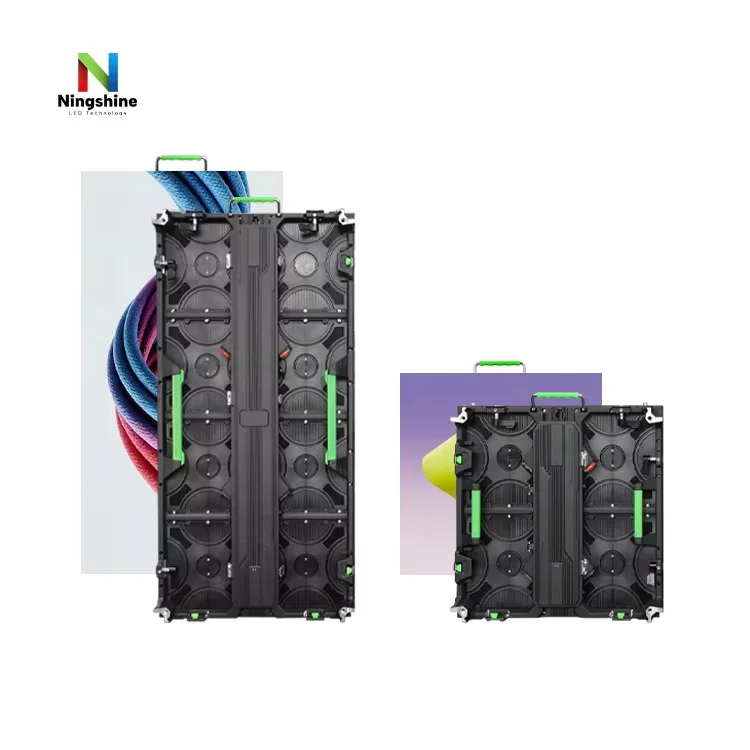

- 500 * 500mm and 500 * 1000mm enclosures for easy splicing. It features a die-cast aluminum material, that delivers excellent heat dissipation and keeps the unit lightweight.With a 500×1000mm cabinet, you only need 12 panels to build a complete 3×2m LED screen.
- We recommend installing a floor stand with lighting slots on both sides or above the screen. This makes it easy to mount bar lighting, integrates the screen with stage lighting, and enhances the overall atmosphere.
In addition, Ningshine’s NS series LED display adopts the Nova control system, which supports multiple signal sources (computer, phone, USB flash drive, HDMI) access and one click signal switching. And Ningshine also has a DJ station, which can better match the bar screen. At the same time, the NS series LED display screen is also equipped with a high protective mash, greatly reducing the splashing of bar drinks and lowering the dead light rate. Finally, for the relatively dark environment of bars, the NS series LED video wall has an initial brightness of 600-800nits and a maximum
brightness of 800nits. It can be calibrated point by point and adjusted to a comfortable range suitable for the human eye.
Our Provide-3×2m LED screen

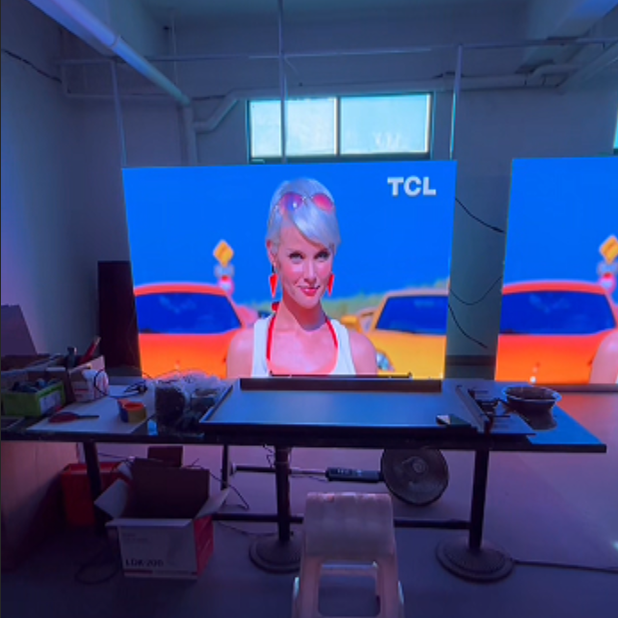

- Testing Video

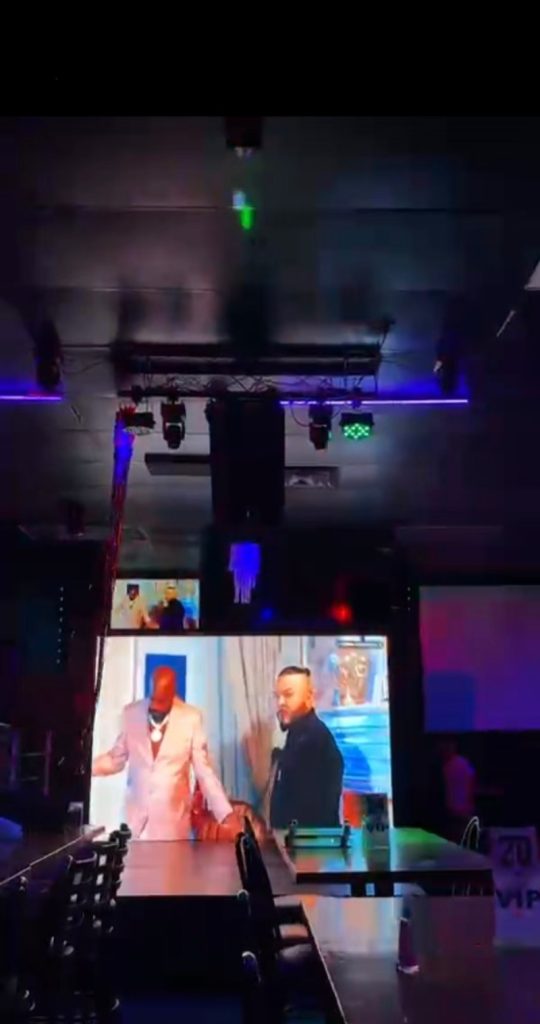

Feedback Pictures-3×2m LED screen
