| Series | NS Series |
| Pixel Pitch | P2.97(2.97mm) |
| Cabinet Size | 500*1000mm |
| Screen Size | 6x2m(19.69×6.56ft) |
| Refresh Rate | 7680Hz |
| IP Rating | IP65 |
| Brightness | ≥5500nits |
Customer requirements
Firstly, the client needs a large outdoor tent that is waterproof. Secondly, it should be approximately 6 meters wide and 2 meters high, primarily for outdoor activities, parties, and playing videos. Thirdly, due to the large interior space but lack of support points, it will require hanging.Furthermore, the customer specifically requested a pixel pitch of 2.97mm and a pixel density of 65,536 dots/㎡.
P2.97 LED Wall Our solution
Based on customer requirements, we offer two main types of outdoor P2.97 LED displays: a outdoor fixed series, but obviously, it lacks internal support points within the tent; and a rental outdoor series, it supports hanging using truss supports and slings, and meets IP65 waterproof standards.
Therefore, for rental purposes, especially for tents, we recommend our NS series LED video walls. The die-cast aluminum housing ensures durability, lightweight construction, and excellent heat dissipation. Furthermore, for a 6m x 2m LED wall, we recommend 500*1000mm cabinets, requiring only 24 of these cabinets. We also provide all accessories with a 5-year warranty, including free accessories, slings, and more. Finally, we utilize the Nova control system, allowing customers to remotely control the screen. Whatever the customer wants to display, our LED display screens will provide a clear picture.

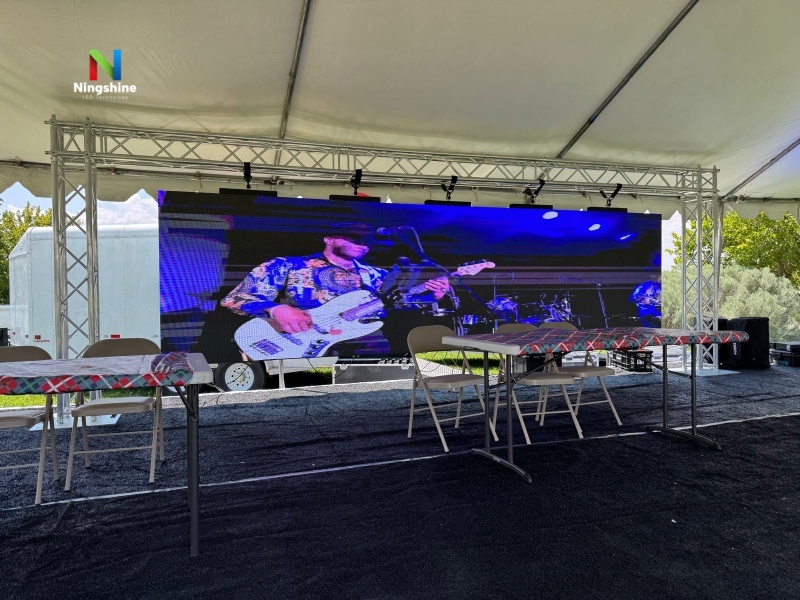

P2.97 LED Wall Customer feedback pictures

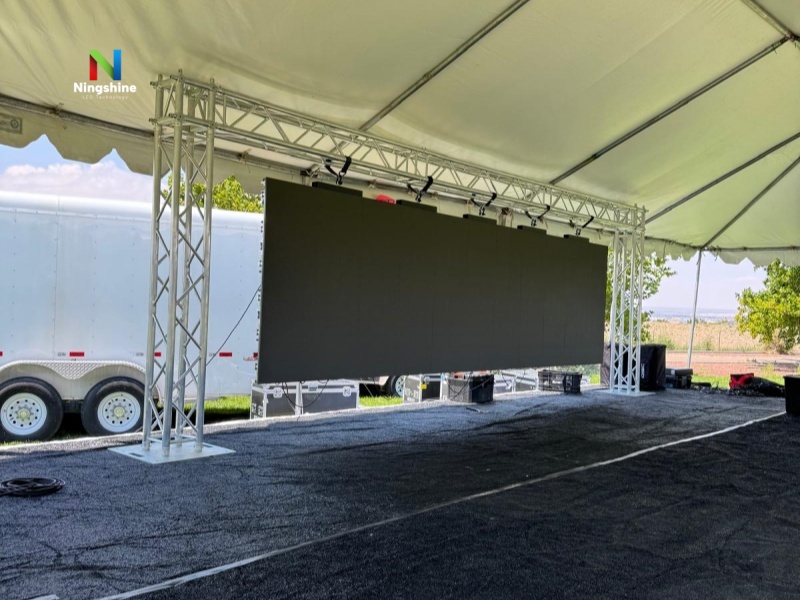

After receiving our P2.97 LED wall, the customer fixed the truss to the ground according to the load-bearing capacity. Next, the 24 LED panels were spliced and wired from top to bottom. Through our coordinated efforts, a perfect picture was displayed. The customer placed a table and chairs in front of the LED display screen, where they can watch videos, enjoy afternoon tea, etc., at any time.
